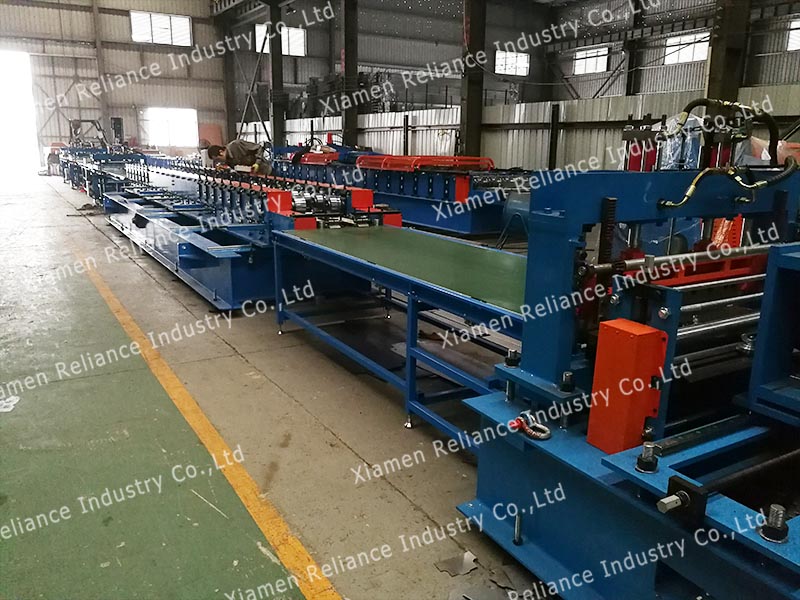

Automatic Shelf Board Roll Former Machine

  • 1(18).jpg
  • 2(18).jpg
  • 3(18).jpg
  • 4(15).jpg

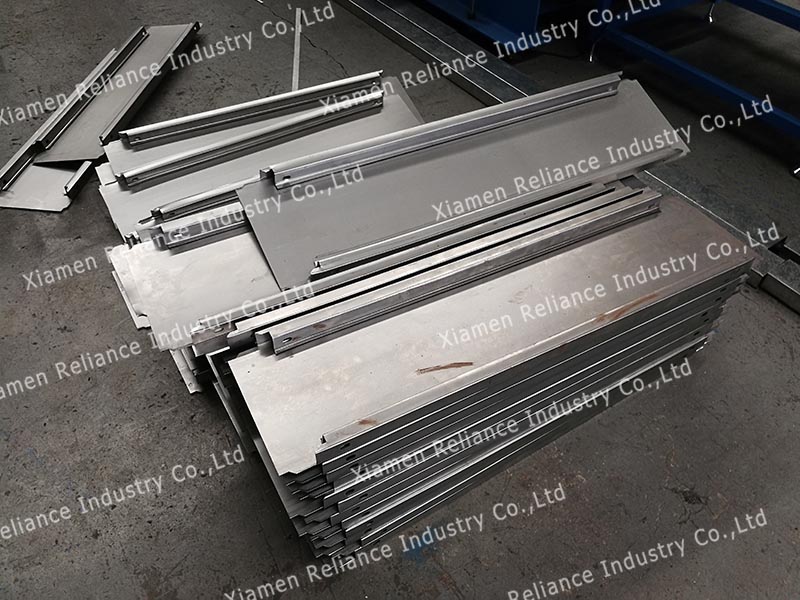

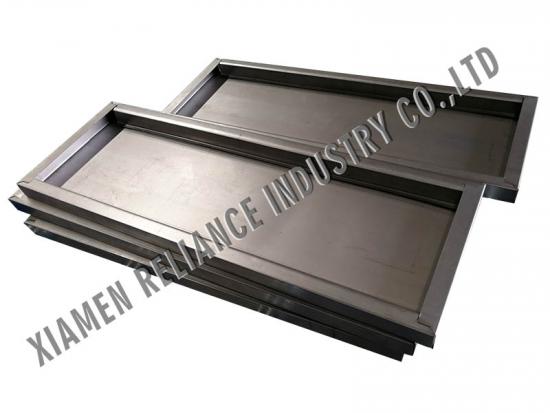

Automatical shelf board rollformer/Shelves roll forming machines/Steel Shelving Panel Forming Machine is used for producing shelving panels that used for rack shelving panel system



PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Automatical shelf board rollformer/Shelves roll forming machines/Steel Shelving Panel Forming Machine:

It can be fabricated in various panel widths and almost any length. With highly forming accuracy and cut to length, the forming line capable well improved customer production capacity.

Technical Details:


The Line’s Specifications

Weight

About 18000kgs

Whole line’s dimension

About 30m x 1.6m x 1.5m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

0.6-1.2mm

Shelves widths

300~800mm, other customized also available

Yield Strength

250-350Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 18

Diameter of forming rollers shafts

75mm

Roll Forming Speed

12m/min

Production Speed

8m/min

Forming rollers material

40Cr, CNC lathe, hard chrome coated

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 5.5kw*2

Hydraulic unit motor power: 7.5kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set

Guiding device

1 set

Leveling system

1 set

Notching & punching section

1 set with pre-cutting unit

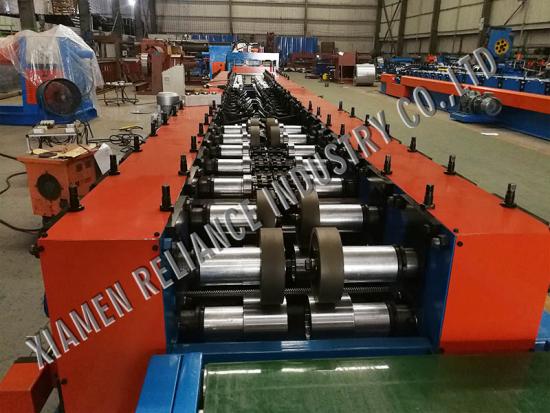

Roll Forming system

1 set, duplex forming type

Hydraulic Cutting system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Motorized conveyer table

1 unit, 1.5 meter long

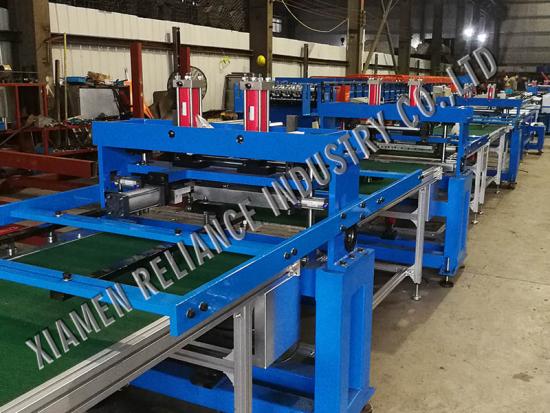

Shelf panel head & tail bending device

1 set

Rou out conveyer table

1 unit
