Bottom Beam Roll Forming Machine

  • 1(30).jpg
  • 2(30).jpg

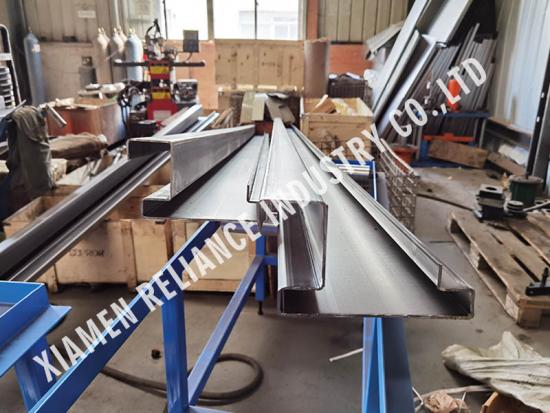

Bottom Beam Roll Former Machine /Container House Equipment/Building Material Roll Forming Machine /Shipping Container Roll Forming Machine is to make the container houses or shipping container frame,it's capable to produce the column and section beams automatically.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Moths

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:



Bottom Beam Roll Former Machine /Container House Equipment/Building Material Roll Forming Machine /Shipping Container Roll Forming Machine :

These years as the increasing demand of prefab assembling container houses, the roll forming machines for container house steel frames and sandwich panel line for container house wall panels have become more and more popular. The side column and top & bottom beam roll forming machines are in great demand.


To make the container houses frame, at least required two roll forming machines. One for producing the side column, the other for top/bottom sectional beams.

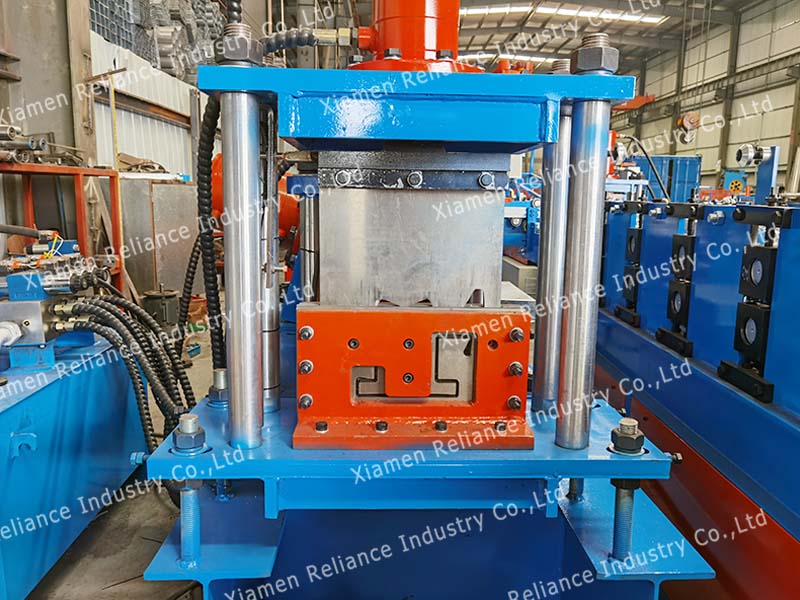

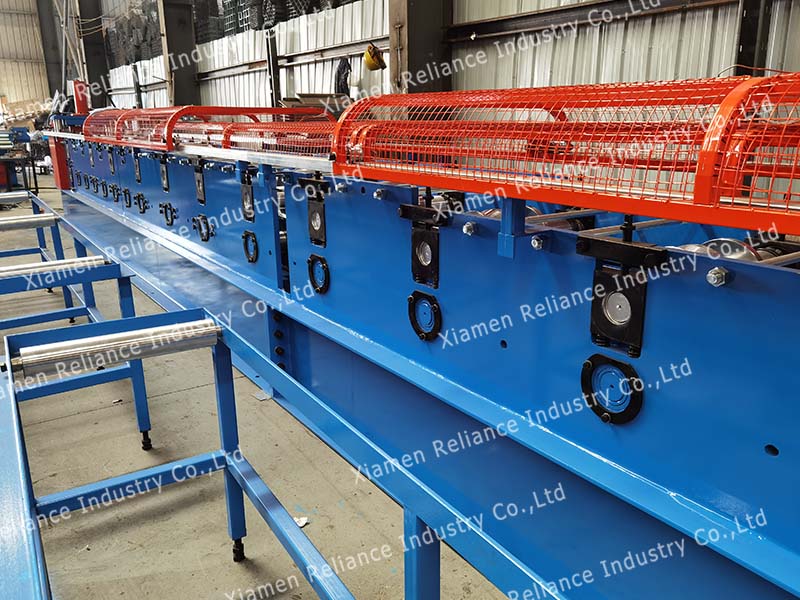

One forming machine normally composed of a manual or hydraulic uncoiler, pre-leveling section, punching unit, main forming machine, cutting section, PLC control cabinet, hydraulic pack and run-out tables. The raw materials for making container houses posts and sectional beams are galvanized steel. Thickness ranged from 2-3.5mm.




Application:

It’s very conveniently, easily and quickly to build or assembled a container house with steel side column, sectional beams, windows, doors and wall panels. All the components have been pre-produced in workshop and then transported to site assembling purpose, with this way minimize the environment pollution and save energy. Below is ordinary way of assembling container frame

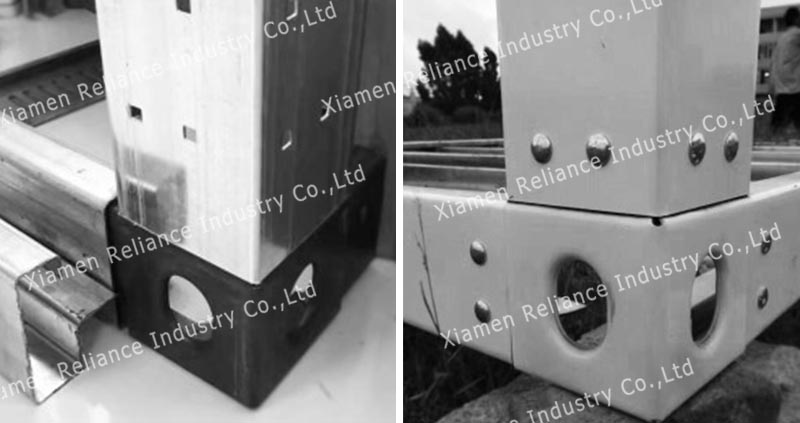

                                                          Bottom Beam connection for container
