Downpipe Elbow Curving Machine

  • 1(49).jpg
  • 2(48).jpg
  • 3(45).jpg
  • 4(45).jpg
  • 5(43).jpg
Downpipe Elbow Curving Machine/Downspout Pipe Roll Forming Machine/Square Tube or Round Tube Downspipe Forming Machine /Square Or Round Downspout Elbow Machine is usually work together with downpipe making machines.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:

Downpipe Elbow Curving Machine/Downspout Pipe Roll Forming Machine/Square Tube or Round Tube Downspipe Forming Machine /Square Or Round Downspout Elbow Machine:

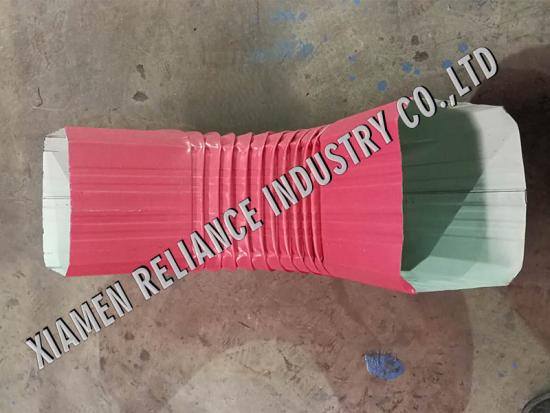

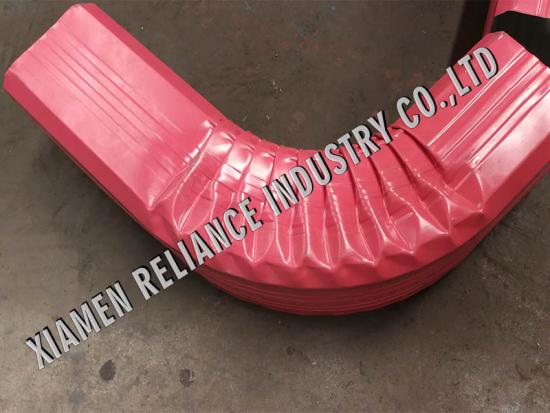

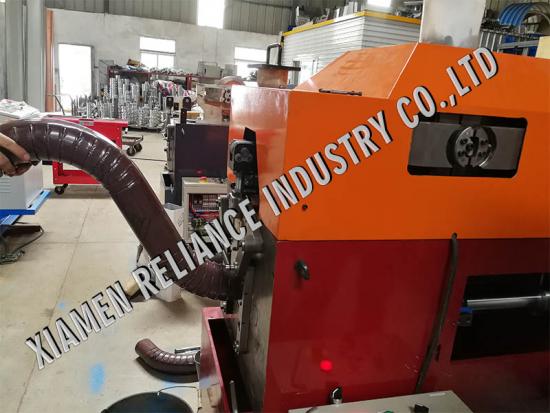

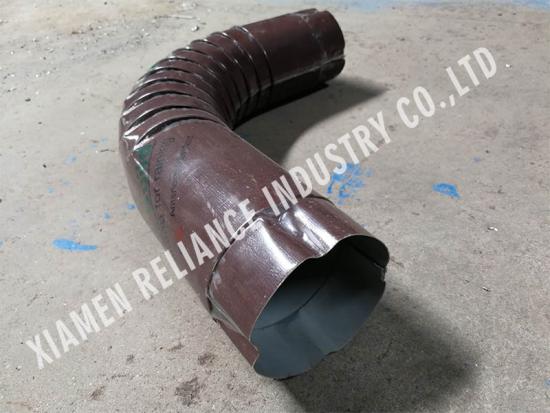

It can curve the flat steel downpipe into different angle/radius according to production need. The working process is automatically, manual mechanism pin to fix position and control the curving degree. The curving pitch length is fixed and curving times can set as per requirements.

Both square and round downpipe are able to make curving machine, but should separately two machines. It can curve ppgi, gi, gl and aluminum material etc…


 The machine details:




Machine Sizes: 1170*800*1460mm

Weight: 800KGS

Including the shrinking device for easy join downspout

Electric motor driven: 2.2KW

Can curve the rainspout degree minimum 90 degree

Two sets of curving die, one for bending, the other for shrinking head curving.

 Downpipe Elbow Curving Machine/Downspout Pipe Roll Forming Machine  :




Square Tube or Round Tube Downspipe Forming Machine /Square Or Round Downspout Elbow Machine:




 Advantage Features:

Forming and cutting at any required length with pre-set quantity automatically.

The encoder will record signal feedback and showing exact length of product.

The total length of finished coil is able to calculate via control panel.

Steel rollers are fabricated by CNC precision machine and hard chrome coated.

Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.
