Fencing Square Tube Roll Forming machine

  • 1(7).jpg
  • 2(7).jpg
  • 3(7).jpg
  • 4(5).jpg
  • 5(4).jpg
  • 6(1).jpg
Fencing Square Pipe Making Machine/square tube roll forming machine/steel square pipe making machine is used for producing steel tube with square or rectangle shape.

PAYMENT:T/T,L/C,CASH

SHIPPING PORT:Xiamen,China

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

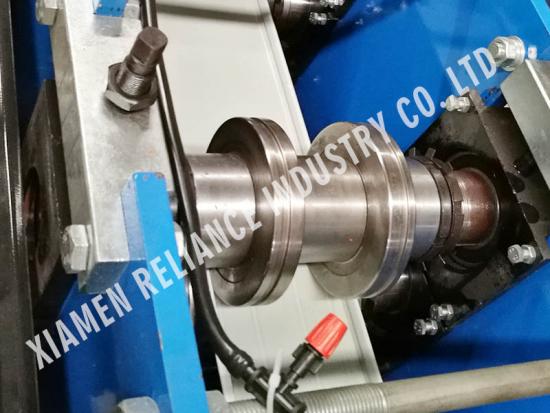

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Fencing Square Pipe Making Machine/square tube roll forming machine/steel square pipe making machine:

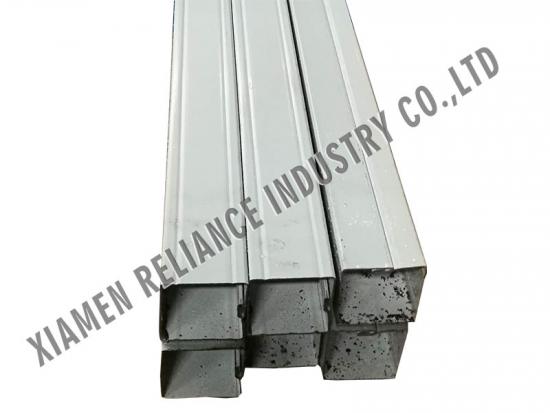

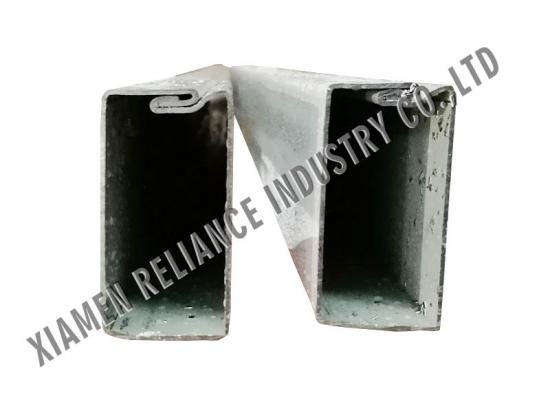

The steel tube are widely used in many field, such as road guarding fencing post, house fencing post, simple racking support etc..It can instead of some welding tubes in some light racking system. The steel pipe can be fabricated from various material thicknesses and in almost any length. With automatically forming and cut to length, the roll forming line capable well improved customer production capacity.

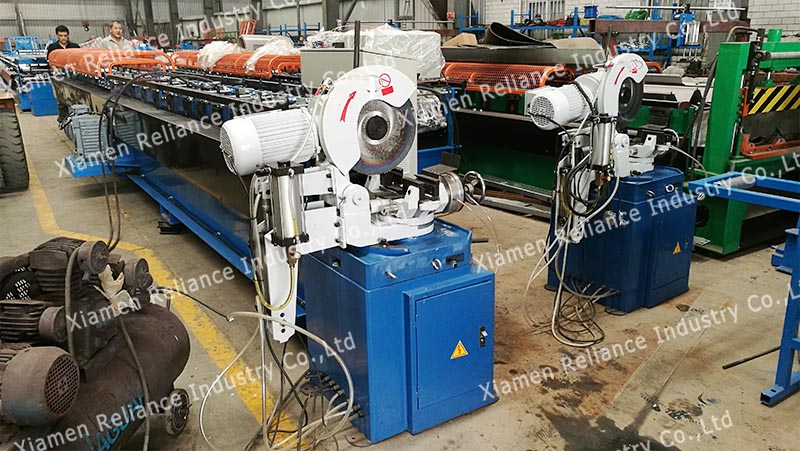

The production line system includes:

Decoiler/Uncoiler

Material extending device

Material feed

Forming machine with water cooling system

Blow dry DEVICE

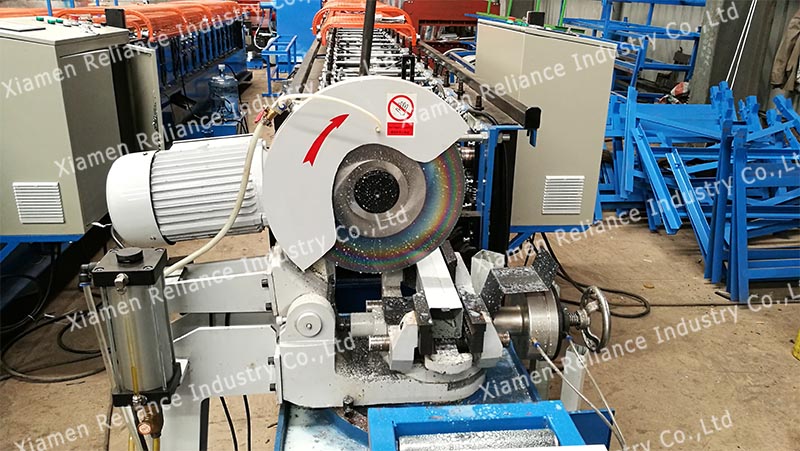

Automatic Saw cutting section

Electrical control system

Product run out table



pipe welding machine instead:

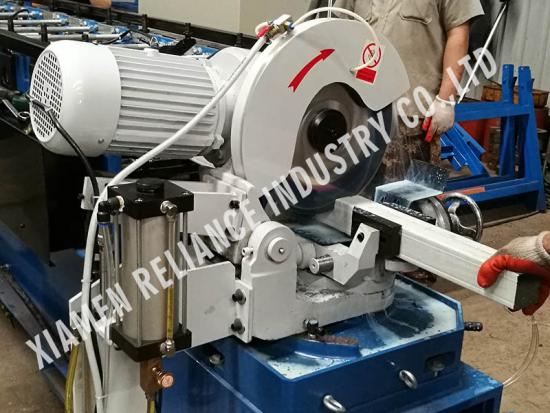

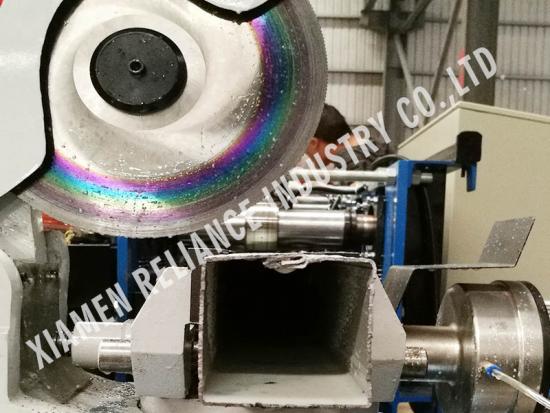

tube cutting:
