Garage Rolling Door Roll Forming Machine

  • 1(16).jpg
  • 2(16).jpg
  • 3(16).jpg
  • 4(9).jpg
Rolling Door Roll Forming Machine/Garage Rolling shutter door forming machine is used for producing steel rolling up shutters, rolling doors.

PAYMENT:T/T,L/C,CASH

SHIPPING PORT:Xiamen,China

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


▶Description:

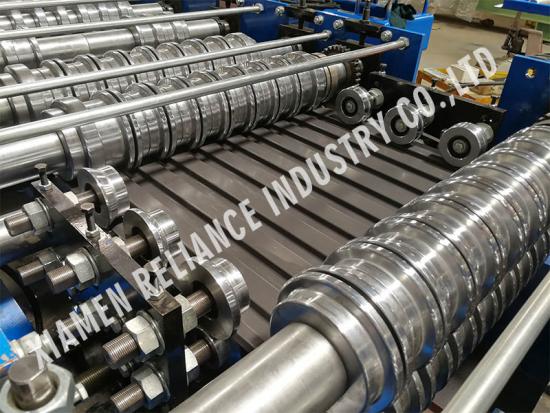

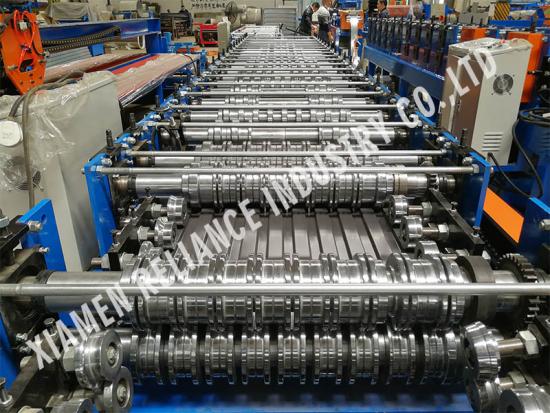

Rolling Door Roll Forming Machine/Rolling shutter door forming machine

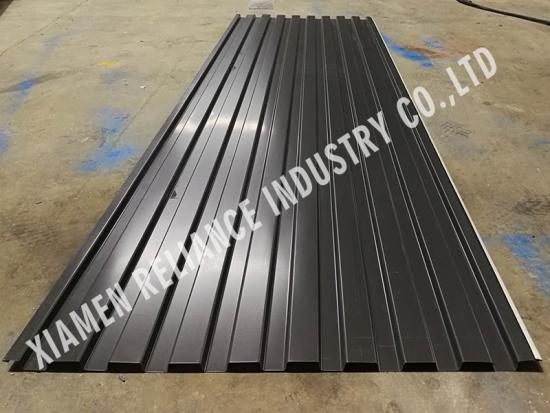

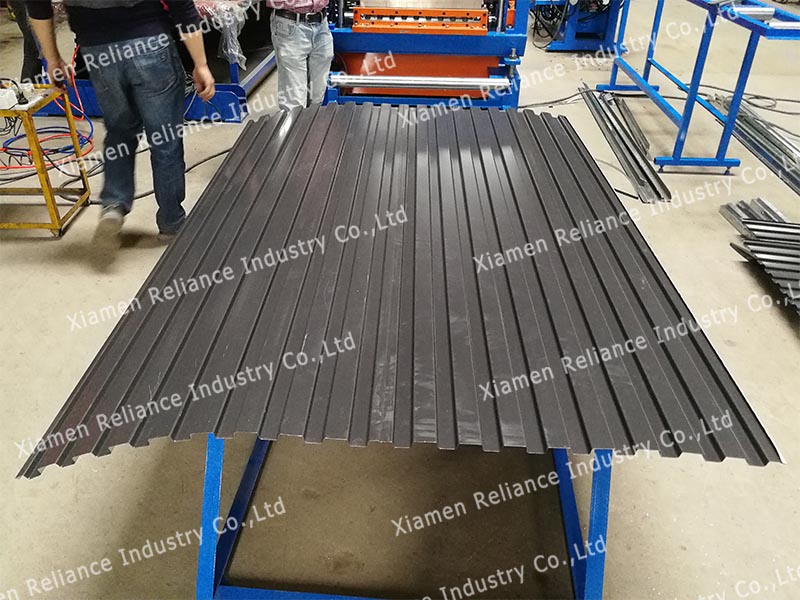

can be fabricated from various material thicknesses and in almost any length. With highly inline precision lock punching automatically and cut to length, the forming line capable well improved customer production capacity. After product flat door panels, the seaming machine can tightly joint several rolling doors according to warehouses door size.


▶Technical Details:


The Line’s Specifications

Weight

About 9300kgs

Whole line’s dimension

About 13m x 1.8m x 1.5m (length x width x height)

Color

Main color: Blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

0.38-0.6mm

Coil width

900/1000

Yield Strength

250Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 22

Diameter of forming rollers shafts

75mm

Roll Forming Speed

18m/min

Production Speed

15m/min

Forming rollers material

45# steel, CNC lathe, hard chrome coated

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

PLC (Siemens), Touch Screen (SIEMENS), Inverter (SCHNEIDER), Encoder (Omron), etc

Electric Power requirement

Main motor power: 7.5kw

Hydraulic unit motor power: 4kw

Electric voltage

According to customer’s requirement

Main Components

Hydraulic Decoiler (manual and automatic for options)

1 set

Guiding device

1 set

Manual pre-shearing device

1 set

Roll Forming system

1 set

Hydraulic Cutting system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set




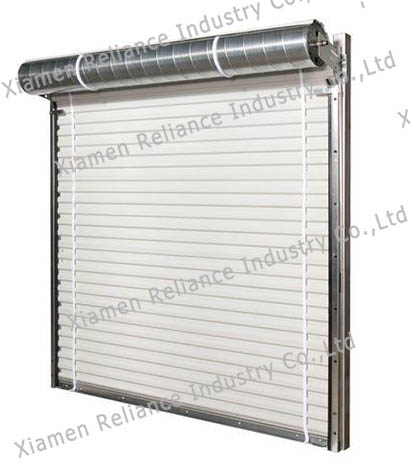

▶Application rolling door:

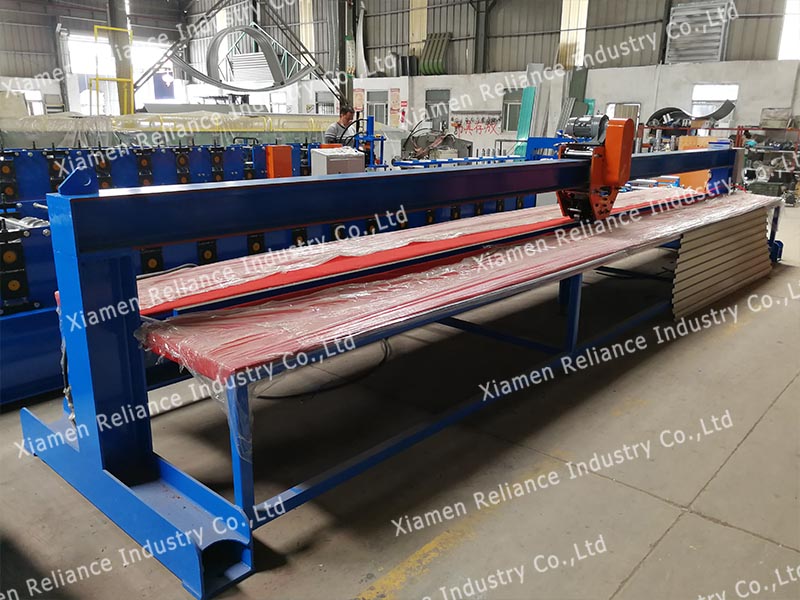

▶Roller Shutter Seaming Rollformer Machine:

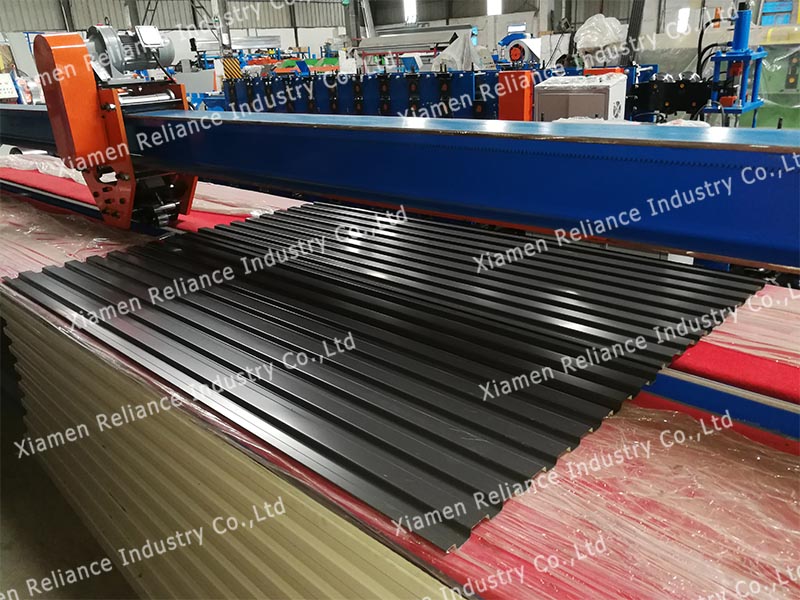

▶garage rolling shutter seaming machine:


▶garage door
