Glazed Tile Roof Forming Machine

  • 1(20).jpg
  • 2(19).jpg
  • 3(16).jpg
  • 4(16).jpg
  • 5(14).jpg
Glazed Tile Roof Forming Machine/Metal Tile Rool Forming Machine/Tile Roofing Sheets Machine/Spanish Tile Roofing Machine is use to produce various types of steel tile roofing panels that typically used as structural component.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:

Glazed Tile Roof Forming Machine/Metal Tile Rool Forming Machine/Tile Roofing Sheets Machine/Spanish Tile Roofing Machine

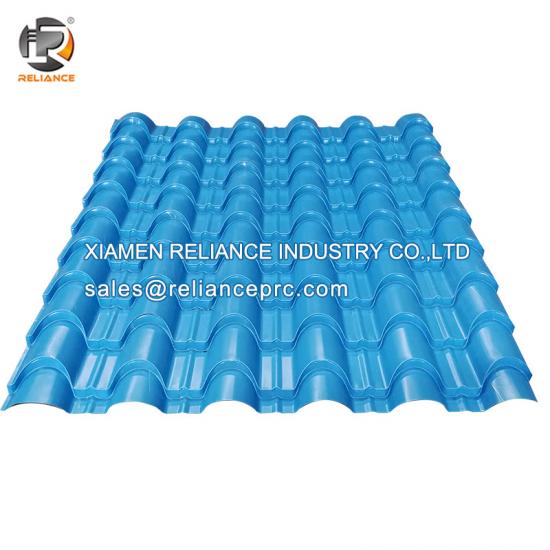

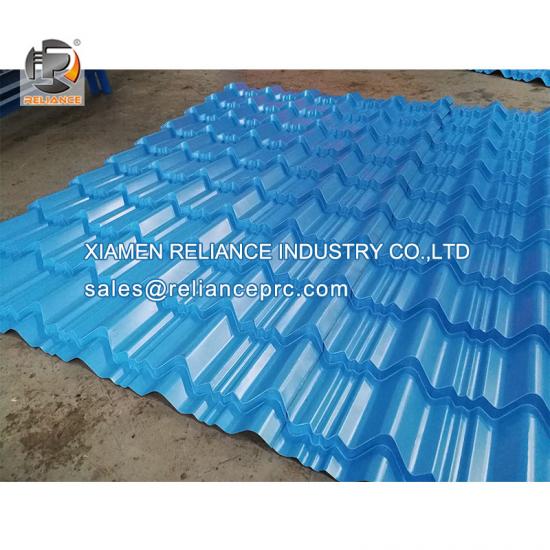

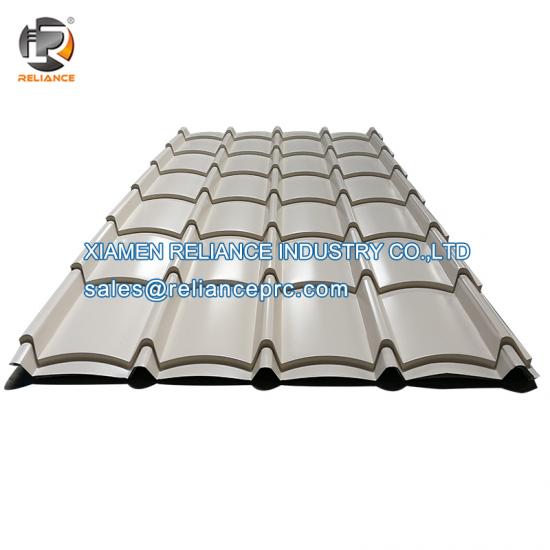

The metal tile roofing sheets are made of continuously roll forming and pressing step tile sheets. It widely used in all kinds of roofing systems.

Working Procedure:

Uncoiling– Hydraulic Pre-cutting (Optional)- Roll Forming Machine- Step pressing– Cutting– Collecting


All kinds of profiles customized made as buyer requirements.



Technical Details:



The Line’s Specifications

Weight

About 10000kgs

Whole line’s dimension

About 15m x 1.3m x 1.5m (length x width x height)

Color

Main color: blue


Warning color: yellow

Suitable Raw Material

Material

GI, CR, PPGI;

Thickness

0.4-0.6mm

Coil Feeding Width

1000/1200/1220/1250mm as per profile design

Step depth

16~22mm

Yield Strength

250~350Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 16~18

Diameter of forming rollers shafts

75/95mm

Roll Forming Speed

18m/min

Production Speed

8~10m/min

Forming rollers material

40Cr steel, CNC lathe, hard chrome coated

Hydraulic Stair-Drawing Device

Stop to press, Pressing die material: P20

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 7.5kw servo motor


Hydraulic unit motor power: 11kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set

Pre-Cutting Device

1 set for cut head and tail of sheet

Roll Forming system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set

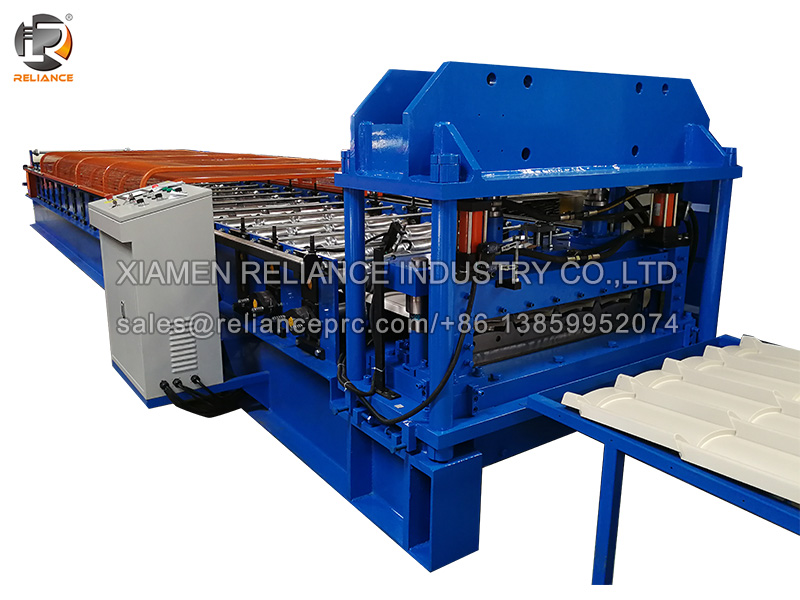

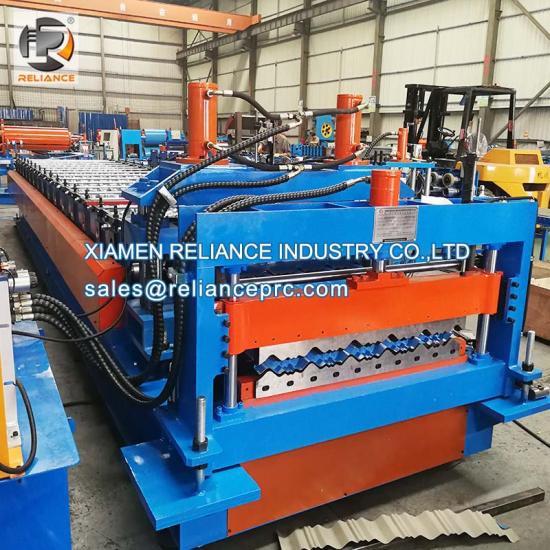

metal tile forming machine:

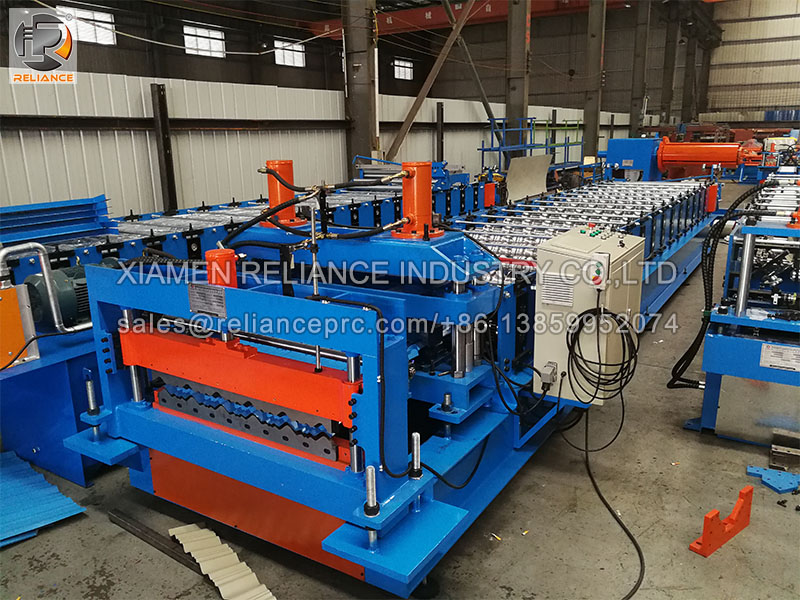

step tile roof machine:

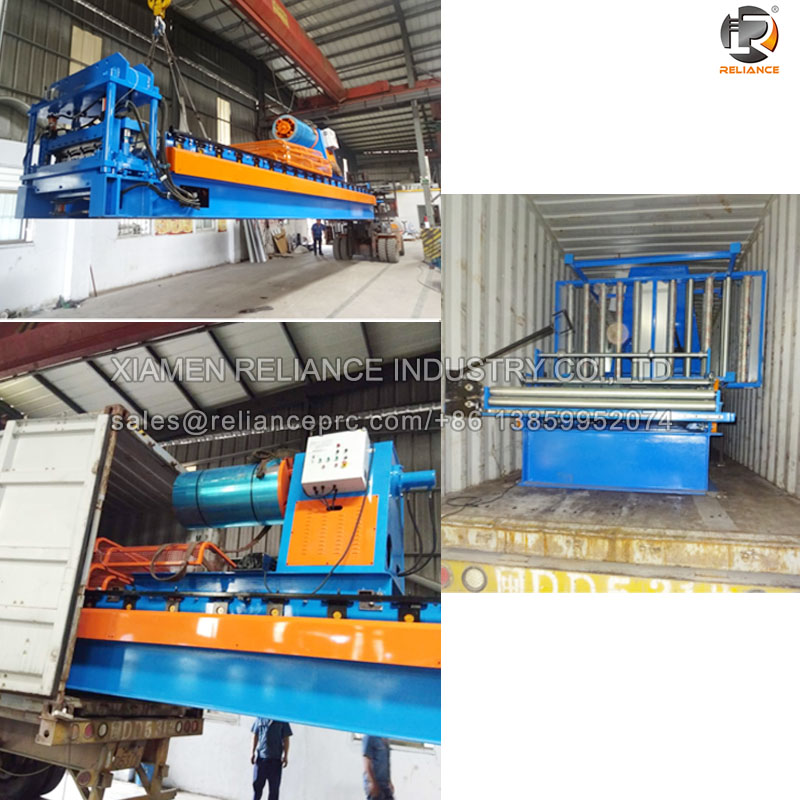

Loading photos:
