No-stop Cutting Metal Furring Machine

  • 1(18).jpg
  • 2(18).jpg
  • 3(18).jpg
  • 4(11).jpg
No-stop cutting metal furring Machine/furring channel roll forming machine/metal furring ceiling roll forming is used for producing steel furring sheet for ceilings that used in inner house suspended ceiling usage.

PAYMENT:T/T,L/C,CASH

SHIPPING PORT:Xiamen,China

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


▶No-stop cutting metal furring Machine/furring channel roll forming machine/metal furring ceiling roll forming

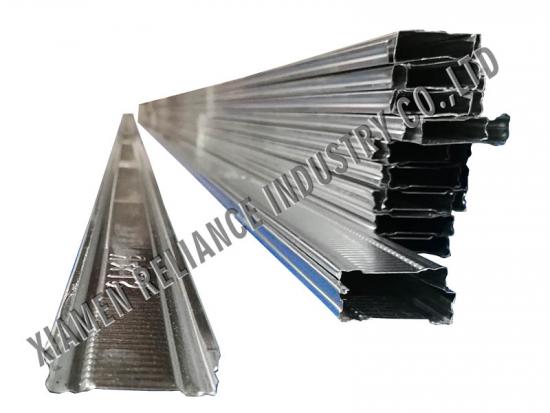

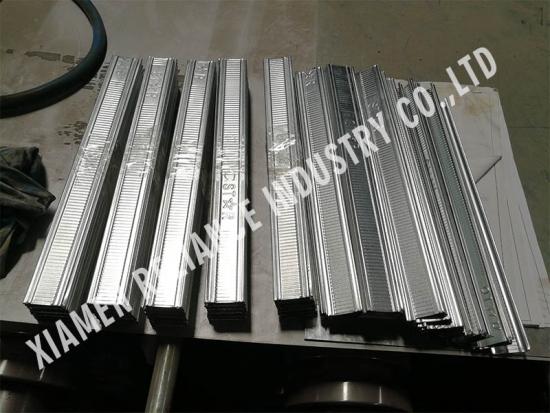

The steel hollow can be fabricated from various material thicknesses and in almost any length. With highly dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.



▶Technical Details:


The Line’s Specifications

Weight

About 2600kgs

Whole line’s dimension

About 10m x 1.5m x 1.45m (length x width x height)

Color

Main color: blue

Warning color: orange

Suitable Raw Material

Material

Galvanized Coils

Thickness

0.18-0.45mm

Coil width

According to products size

Yield Strength

550Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 12

Diameter of forming rollers shafts

60mm

Roll Forming Speed

30m/min

Production Speed

30m/min

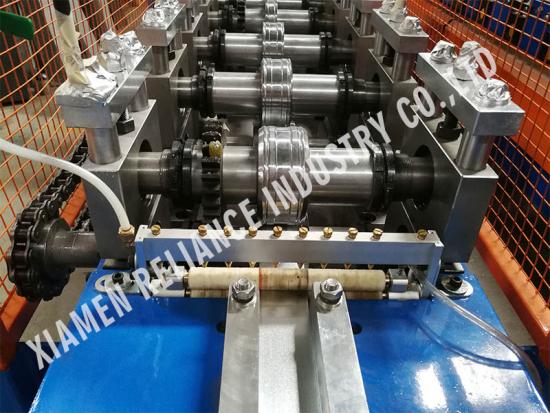

Forming rollers material

Gcr15 mould steel, with quenched treatment

Cutter material

CR12 mould steel, with quenched treatment

Controlling system

Industrial Computer, Touch Screen (WEINVIEW), inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 15kw

Hydraulic unit motor power: 4kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set

Guiding device

1 set

Cooling system

1 set

Roll Forming system

1 set

No-stop Cutting system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set


▶Furring Channel Roll Forming Machine:


▶Metal Furring Ceiling Rollformer:
