Steel Cable Tray Roll Forming Machine

  • 1(23).jpg

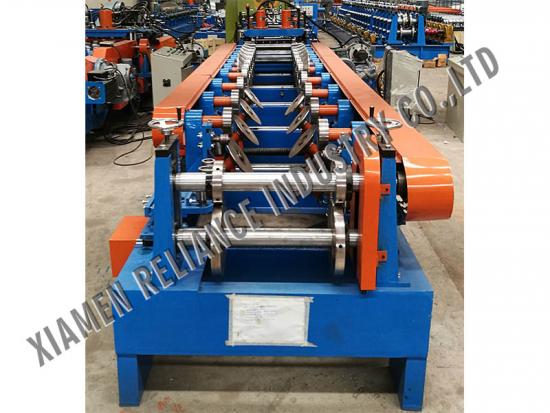

  • 2(23).jpg

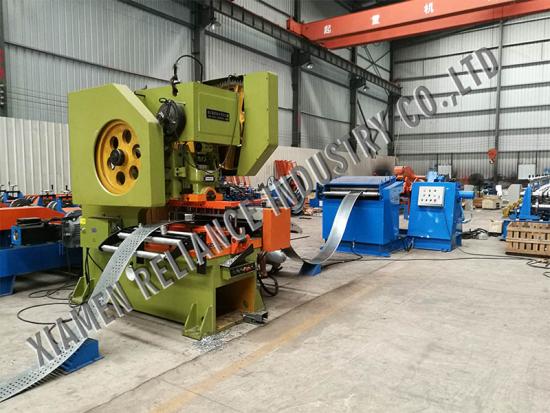

  • 3(23).jpg

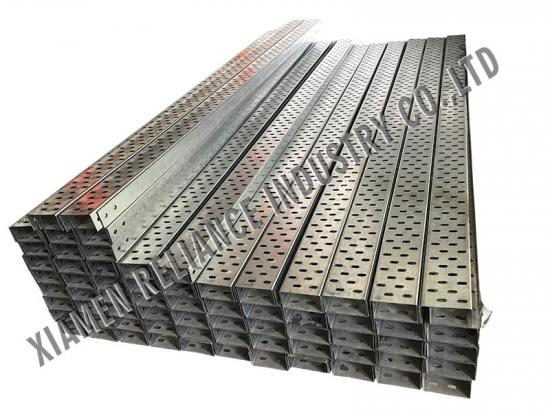

  • 4(19).jpg

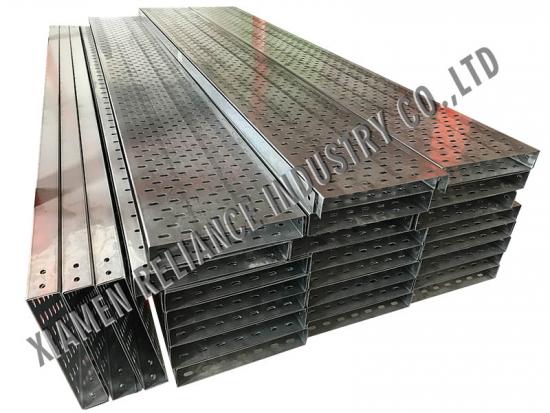

  • 5(12).jpg
Cable tray machine/cable tray roll forming machine/cable tray making machine is used for producing steel cable trays, cable tray ladders and covers.

PAYMENT:T/T,L/C,CASH

SHIPPING PORT:Xiamen,China

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Cable tray machine/cable tray roll forming machine/cable tray making machine can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly punching accuracy, accurate dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.

Working Procedure:

Uncoiling– Leveling– Servo Feeding and Punching– Roll Forming Machine– Cutting– Collecting

Technical Details:


The Line’s Specifications

Weight

About 15000kgs

Whole line’s dimension

About 30m x 1.3m x 1.5m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

0.6-1.5mm

Cable Tray Width

50-600mm

Cable Tray Flange Height

20-100mm

Yield Strength

350Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 16

Diameter of forming rollers shafts

75mm

Roll Forming Speed

18m/min

Production Speed

8m/min

Forming rollers material

Cr12 mould steel, with quenched treatment

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 15kw

Hydraulic unit motor power: 7.5kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set

Leveling system

1 set

Servo Feeder

1 set

Stamping Machine

1 set

Pre-Cutting Device

1 set

Roll Forming system

1 set, auto size adjustment

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set

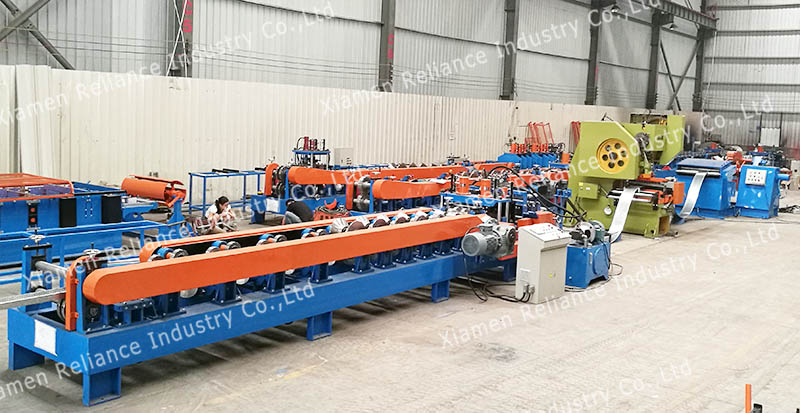

Cable Try Production Line Machine:

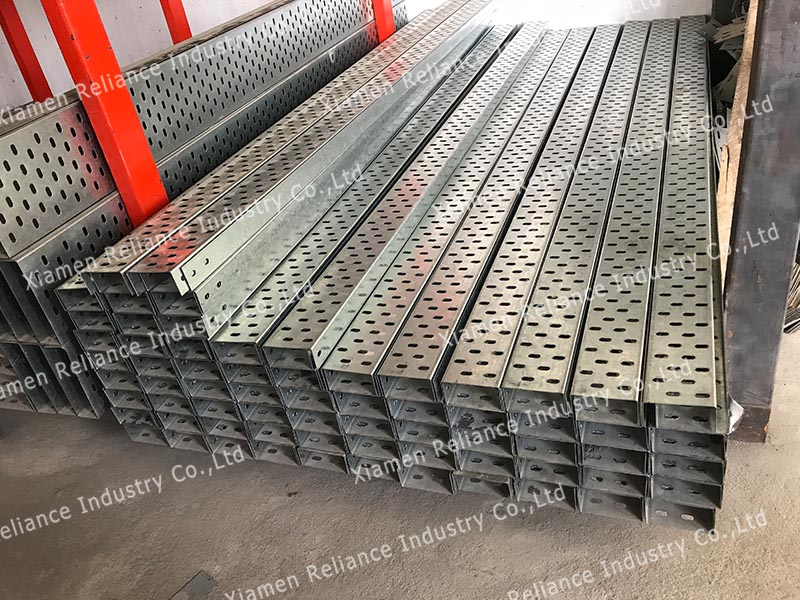

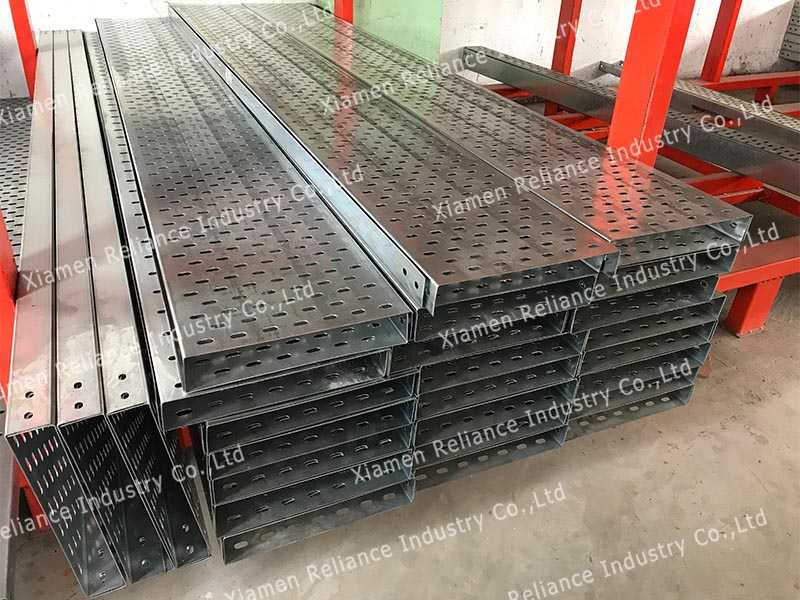

Cable Try Covers:


Cable Try Ladders:
