Stronger Auto CZ Purlin Machine

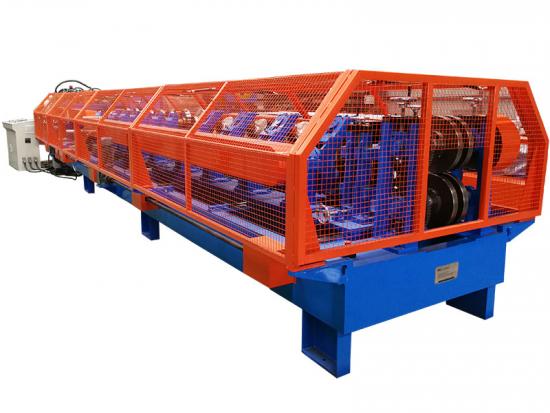

  • 1(47).jpg

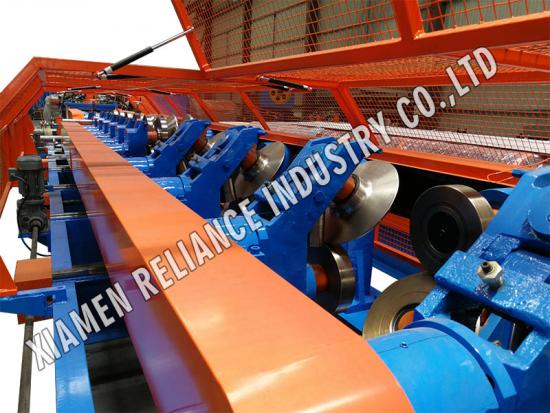

  • 2(46).jpg
  • 4(43).jpg

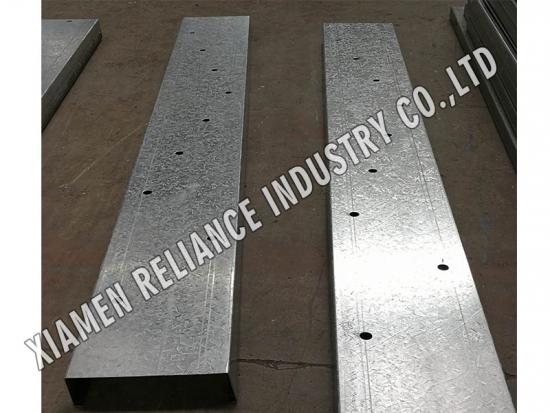

  • 5(41).jpg

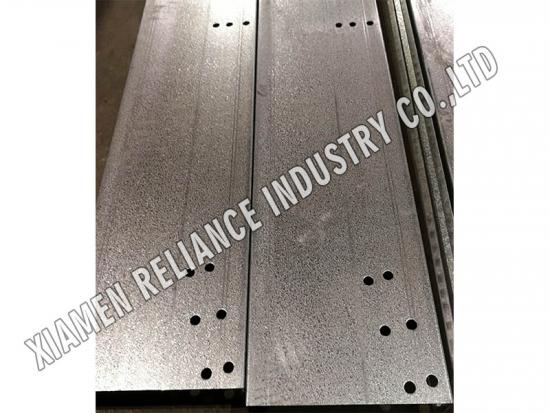

  • 6(34).jpg
Stronger Auto CZ Purlin Machine/ Cz Purlin Roll Forming Machine/Steel Frame Purlin Roll Forming Machine/Z Purlin Rollformer Machine is used for producing various sizes of C purlin and Z purlin sections that widely used in PEB construction field

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:

Stronger Auto CZ Purlin Machine/ Cz Purlin Roll Forming Machine/Steel Frame Purlin Roll Forming Machine/Z Purlin Rollformer Machine:


Both C section and Z section are combined on one machine, with pre-shearing function that avoids material waste. It can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly punching accuracy, accurate dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.



Working Procedure:


Uncoiling– Leveling– Servo Feeding and Punching– Pre-shearing– Roll Forming Machine– Collecting


Technical Details:

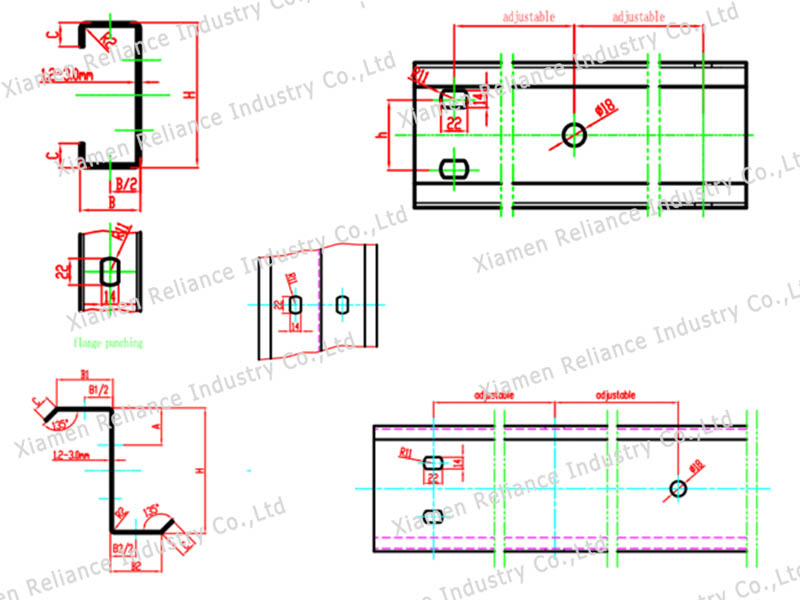

Available produced purlin sizes:






Machine Specifications

Weight

15800KGS

Sizes

11.5*2.2*1.8M

Color

Main machine color: Blue


Mesh cover: Orange

Suitable Raw Material

Material

Galvanized /HR/CR Mild Steel

Thickness

1.5~3.5mm

Coil width

150-550MM

Yield strength

250-550Mpa

Main Technical Parameters

Forming roller station quantity

15 stations

Material of rollers

Cr12 mould steel with quenched treatment

Diameter of shafts

ф90mm

Material of shafts

45﹟ casting steel

Line forming speed

25m/min

Punching die material

Cr12 mould steel with quenched treatment

Cutting die material

Cr12 mould steel with quenched treatment

Control system

PLC(Siemens), Touch Screen(Siemens), Encoder(Omron)

Line power requirement

Main driven motor: 36KW


Size changing motor: 1*1.5KW, 2*0.75KW


Hydraulic Pack motor: 11KW

Electric voltage standard

As per customer requirements




Main Components:


5Ton hydraulic uncoiler

Hydraulic expanding mandrel and motor driven rotation

Work coil width: max 600mm

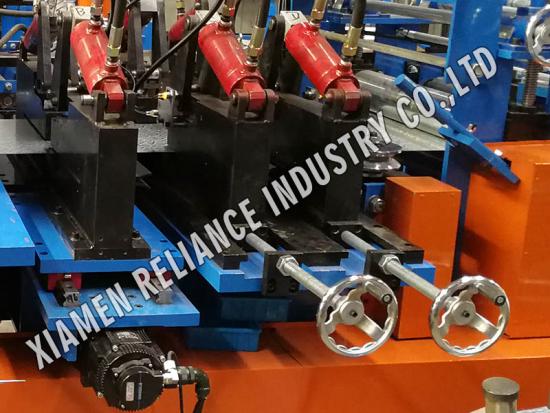

Pre-leveling & Pre-punching & Pre-cutting Device

The section firstly making the strip material flat before feeding into roll forming machine

Then punching and cutting process, cut to piece sheet going into roll forming process

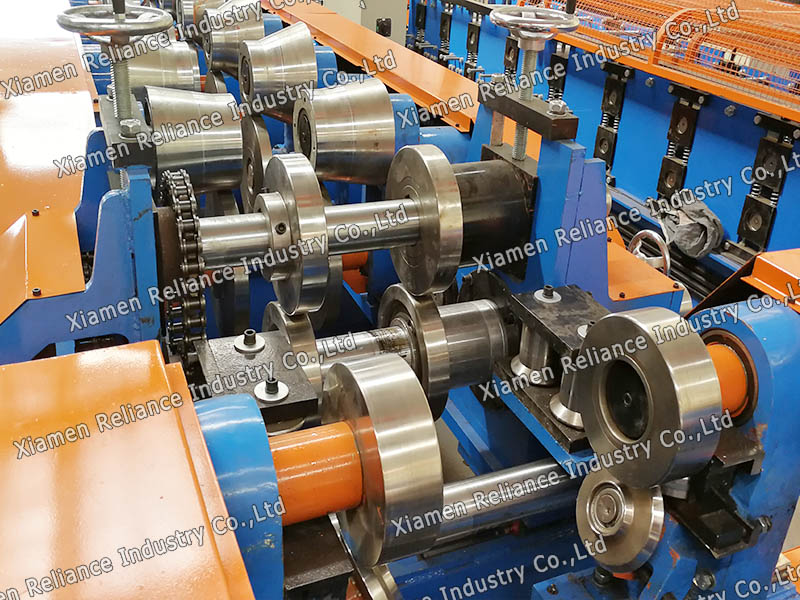

Main roll forming machine:


Driven type: gear sprocket with chain connection

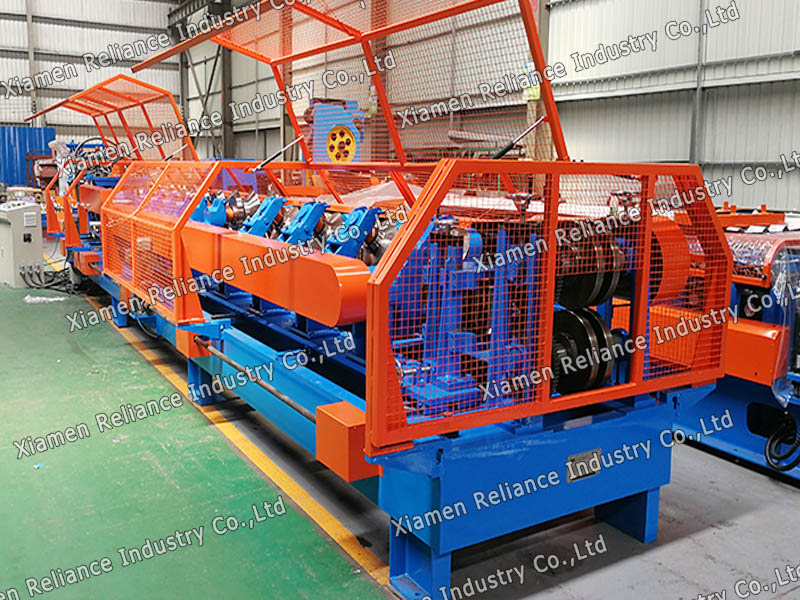

Stronger stand frame design with full mesh cover around main forming machine



PLC control cabinet

All international brand elements composited and qualified system

 Production run out table

Handel forming sheets for packing


Special Features:


Quick C to Z interchange: The rollers for C & Z are changed very quickly without dismantle any parts. The forming tooling is simply unclamped (two bolts), rotated through 180 degree, and re-tightened. No tooling or spacers are removed or changed. Quickly, Easier and Simple operation

Size change: The form tooling is unclamped, slid into the correct position by PLC control. No special tools, no spacer changed. Infinite sizes are possible.

Only input data in touch screen can adjust any size automatically, by motor driving stations moving accurately on linear guiderail with encoder.



Stronger Auto CZ Purlin Machine

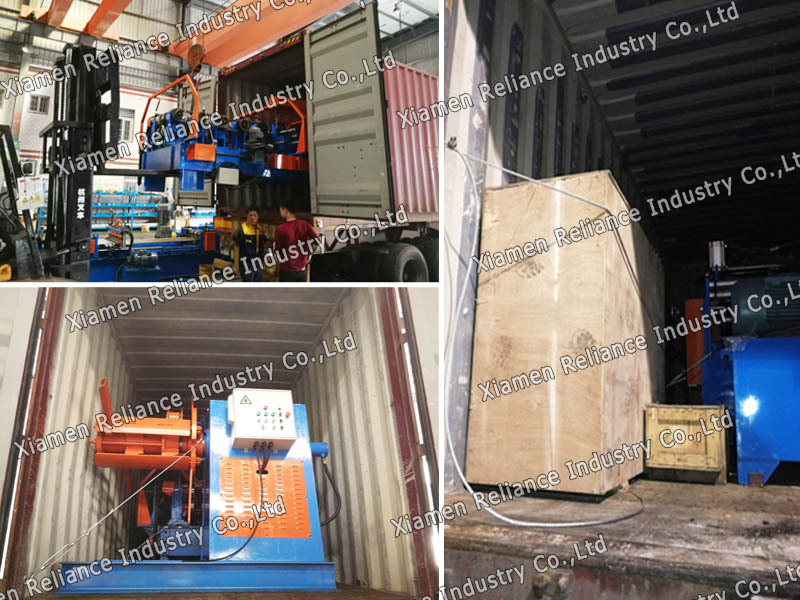

Packaging Photos:
