Wall Cladding Roll Former Machine

  • 1(18).jpg

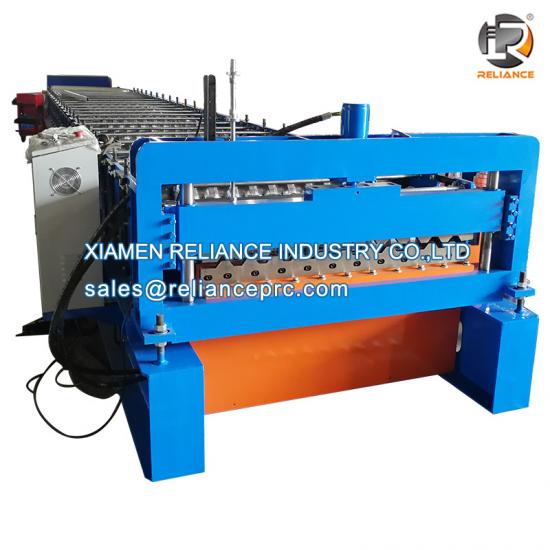

  • 2(17).jpg

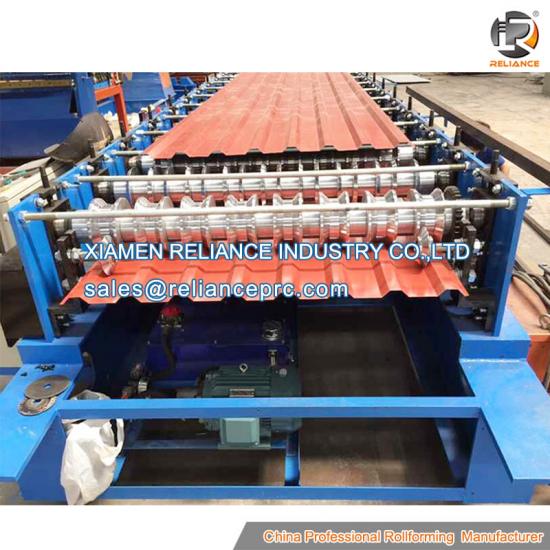

  • 3(14).jpg
  • 4(14).jpg

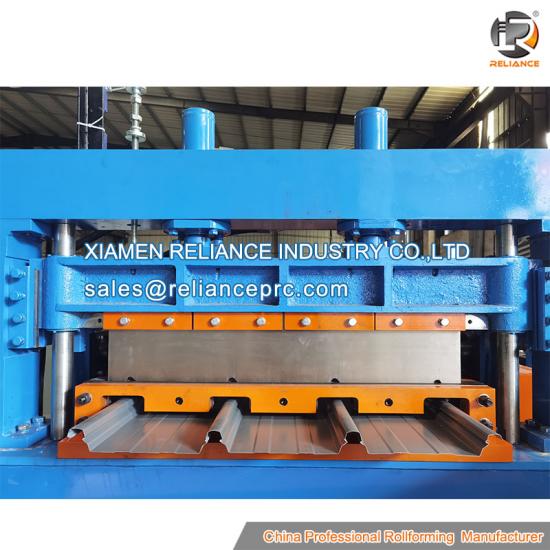

  • 5(12).jpg
  • 6(11).jpg
Reliance regular cladding panel forming machines are available to produce the steel sheets which are applied as facade panels or wall cladding sheets. Machine have many patterns such as wall cladding rollfomer, trimdek roofing machine, spandek forming machine, kliplok roof making machine, IBR roofing forming machine etc.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:

Wall Cladding Roll Former Machine/China Roof Cladding Roll Forming Machine/IBR roofing forming machine/China Klip Lok Roof Making Machine:


Facade panel sheets usually work as wall panels function only, not for top roofing usage.

It can be fabricated from various material thicknesses and in almost any length. Via PLC control system can realize whole roofing line production automatically.



Working Procedure:



Uncoiling– Hydraulic Pre-cutting (Optional)- Roll Forming Machine– Cutting– Collecting



All kinds of profiles customized made as buyer requirements.



Material Thickness: 0.3-0.8mm

Applicable material: GI, CR, PPGI;

With yield strength 350~550Mpa


Machine Specifications

Weight

About 7000~8000kgs

Size

About 11m x 1.5m x 1.5m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Colored Steel Coils

Thickness

0.3-0.8mm

Coil width

1000/1220/1250mm

Yield Strength

250~550Mpa

Main Technical Parameters

Quantity of forming rollers stations for up and down

18-22

Diameter of forming rollers shafts

75/95mm

Roll Forming Speed

18-20m/min

Forming rollers material

40Cr steel, CNC lathe, hard chrome coated

Cutter material

CR12 mould steel, with quenched treatment

Controlling system

PLC and Converter

Electric Power requirement

Main motor power: 7.5kw

Hydraulic unit motor power: 4kw

Electric voltage

According to customer’s requirement





Main Components

Decoiler (manual and automatic for options)

1 set

Feeding section with guide

1 set

Manual pre-Cutting Device

1 set

Roll Forming system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set


China Wall Cladding Roll Former Machine:

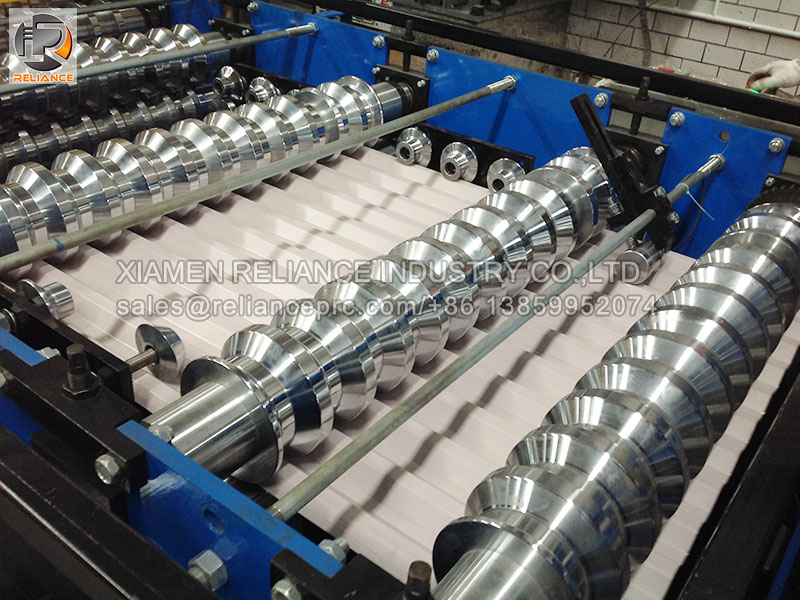

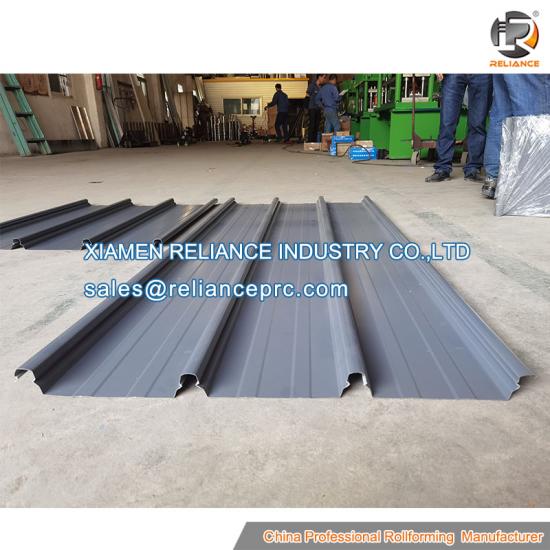

Trimdek roofing machine:

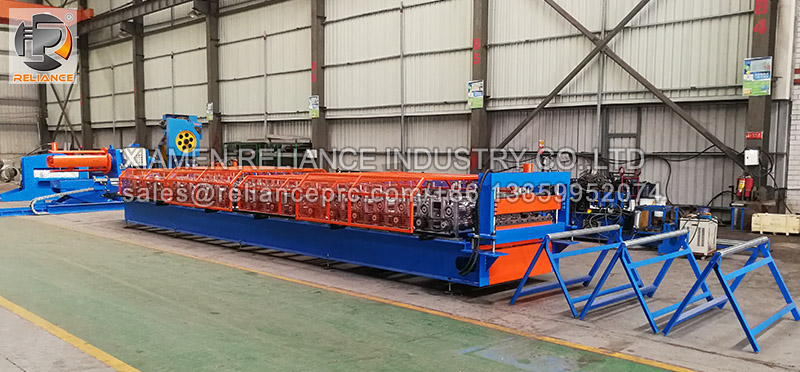

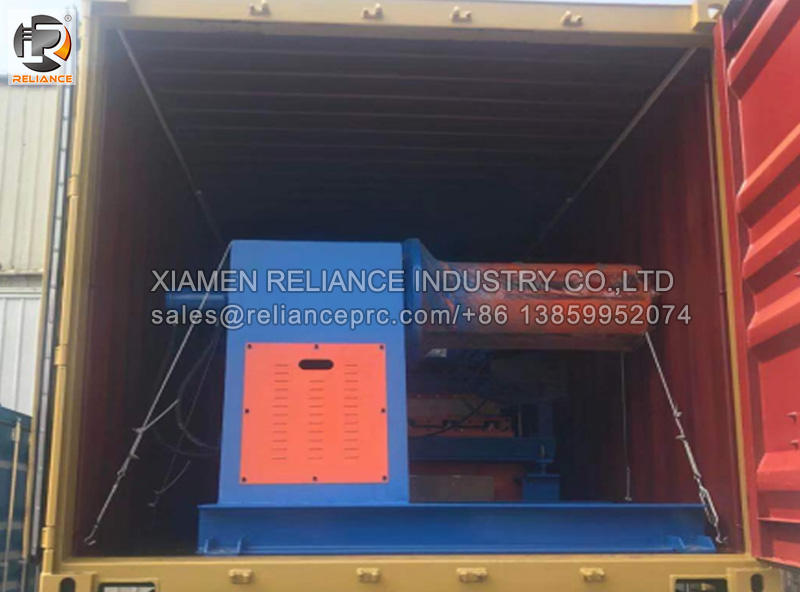

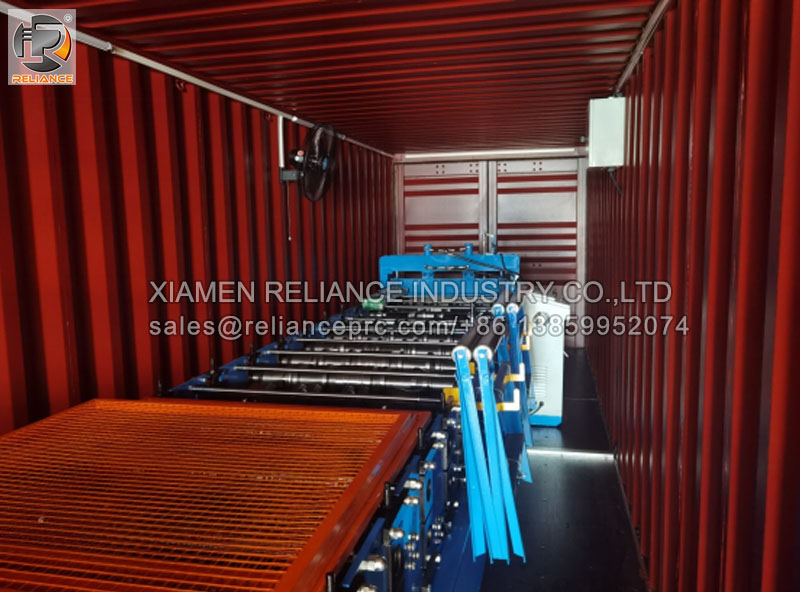

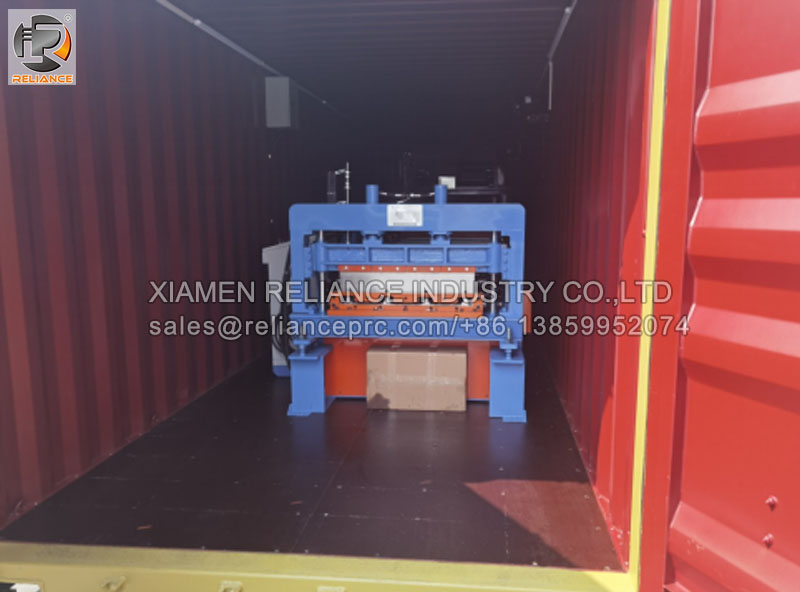

Loading photos:
