• PAYMENT:

  T/T,L/C,CASH

• SHIPPING PORT:

  Xiamen,China

• LEAD TIME:

  2~3moths

• WAY OF PACKAGING:

  Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

• ADVANTAGE FEATURES:

  1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

Description:

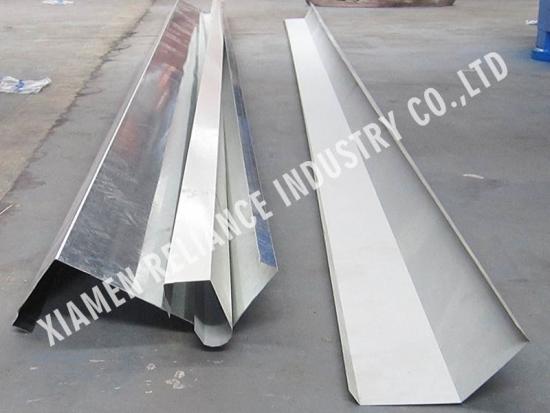

Cnc Folder Roll Forming /Sheet Metal Folding Machine/CNC Folder Machine monitoring system to make down folding process, finally manual semi-automatically work with the plain sheet to realize various steel section production. Such as trims, ridges, gutters, flashings etc…

Technical Details:

1) For Steel sheet:Aluminum coil

2) Thickness range: 0.3-1.0mm (aluminum up to 1.2mm)

3) Driven by Servo motor, pump motor: 0.82KW

4) Working length: 8200mm

5) Press clamp：9 units

6) Weight：Approx. 4500 Kg

7) Pressing power：Pump motor for hydraulic station 11KW（Located outside）

8) Bending range：0-125 degree

9) Depth of throat：1000 mm（Max. working width of material in clamp）

10) Hinge：9 groups

11) Total power：12.92KW (11KW+1.1KW+0.82KW)

12)Outline dimension（Length×Width×Height）：9500×1620×1800 (For reference only)

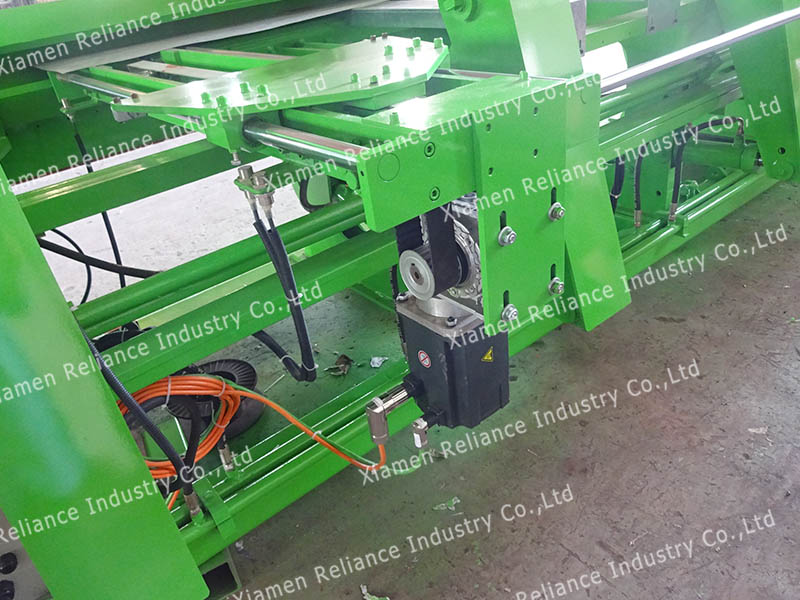

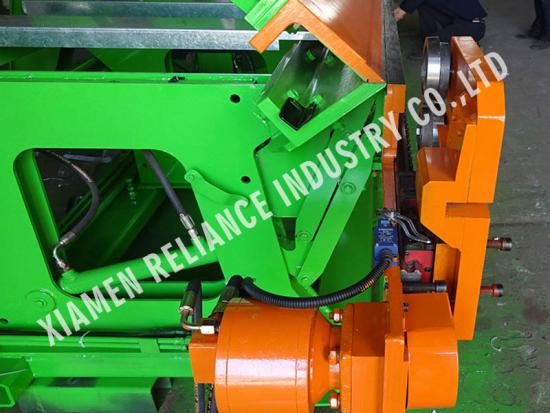

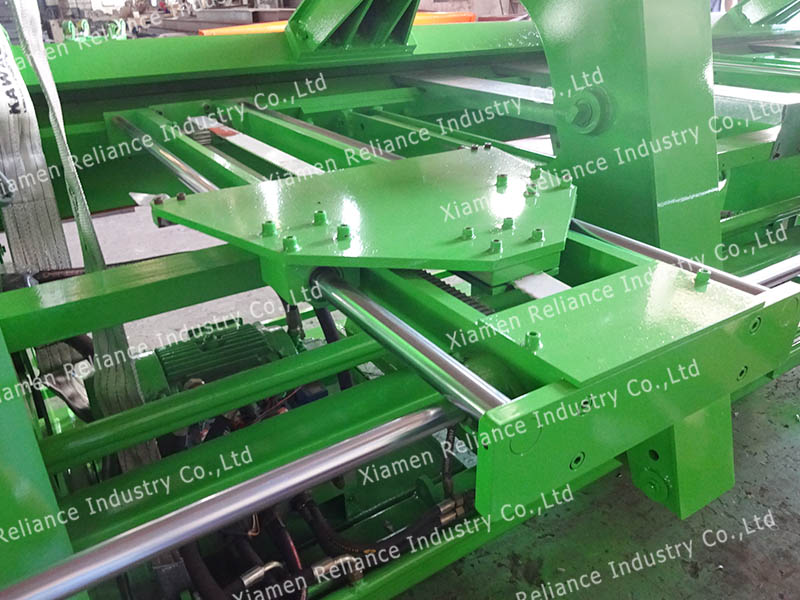

Slitting Device:

1) Type Of Blade : Slitting wheel

Diameter：∮80

Material：Cr12MoV (D2), heat treatment

2) Drive system： motor power 1.1KW

Guiding device：Steel chain circling

3) Slitting speed：Approx.4.8m/s

Slitting distance: Through steel chain circulation.

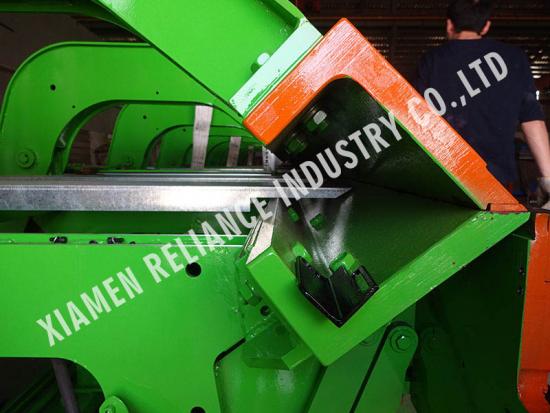

Bending & Slitting Device:

 1) Max. Bending thickness     1.0mm

       2) Max. Bending length         8200mm

       3) Max. Slit thickness            1.0mm

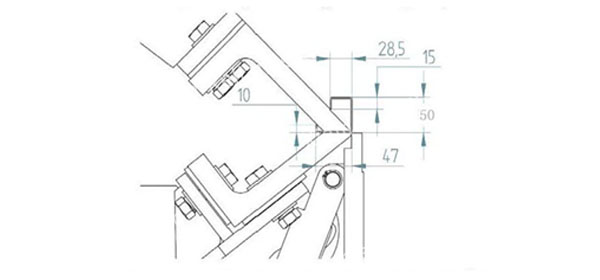

       4) Min. folding dimension      as below

Hydraulic power pack:

1) Capability：Max.16MPA

2) Capacity of oil tank： 460L

3) Power source：Hydraulic

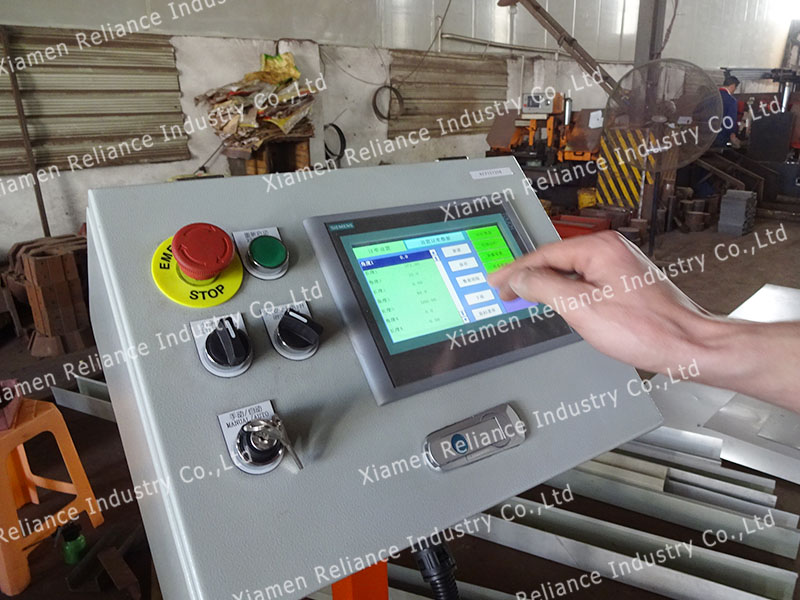

PLC Control System (with running simulation system):

1) System：Austria B&R System

2) Numerical control locating system：Austria B&R PLC Control

3) Operating table：Austria B&R Touch Screen

4) Angle programmer：Encoder test

5) Slitting control：Manual

6) Emergency stop: e-stop button+ e-limit+ foot switch (right heavily)

Cnc folder controler:

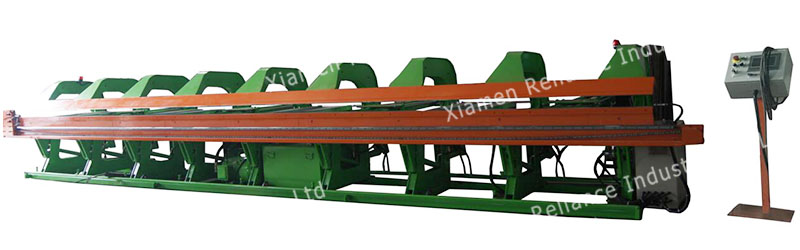

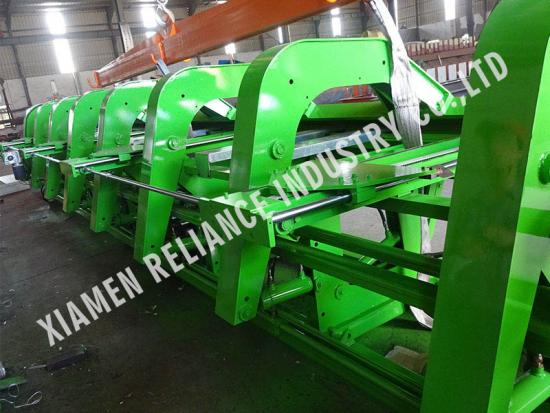

Sheet metal folding rollformer machine:
