Auto Taper Standing Seam Machine

  • 1(31).jpg
  • 2(30).jpg
  • 3(27).jpg
  • 4(27).jpg
  • 5(25).jpg
  • 6(20).jpg
standing seam roll forming machine can roll forming metal standing seam roofing sheet.

After roll forming process by this standing seam machine, the surface of metal roofing is very smooth and beautiful without any scratch on the surface of roofing sheets.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:

Auto Taper Standing Seam Machine/Auto Standing Seam Roll Forming Machine/Standing Seam Curving Machine/S Curving Machine/China Standing Seam Machine:

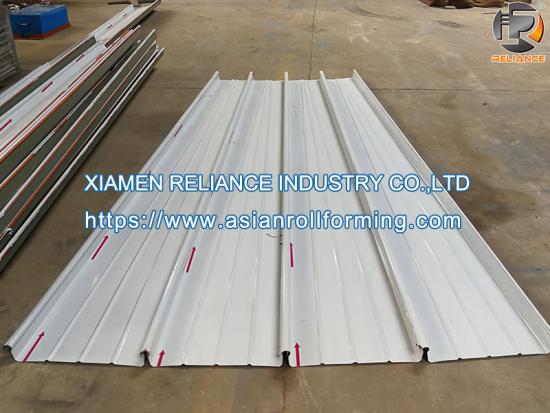

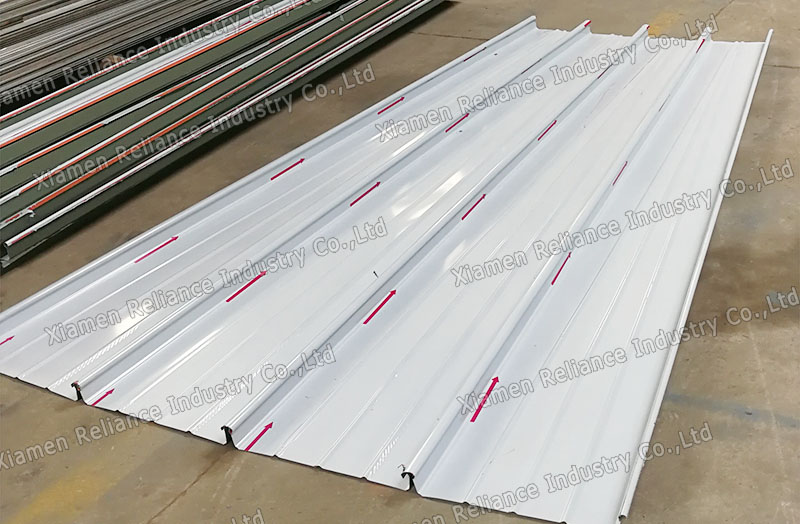

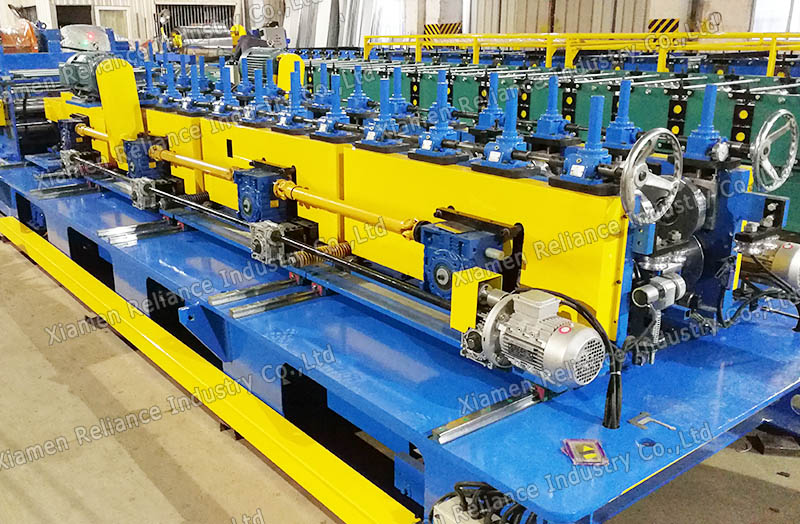

The Standing Seam Roof Profile Roll Forming Machine is with fully automatic control system with PLC. It can produce various shapes of standing seam profile. Such as straight standing seam roofing, taper size standing seam roofing. The roofing width is variable automatically.

Easy operation: Key in the length and quantity on the control panel, also width of sheet.

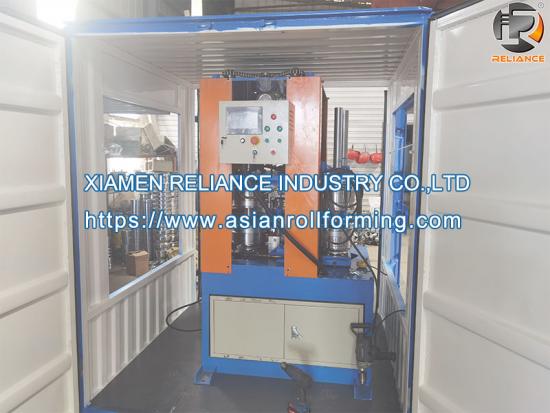

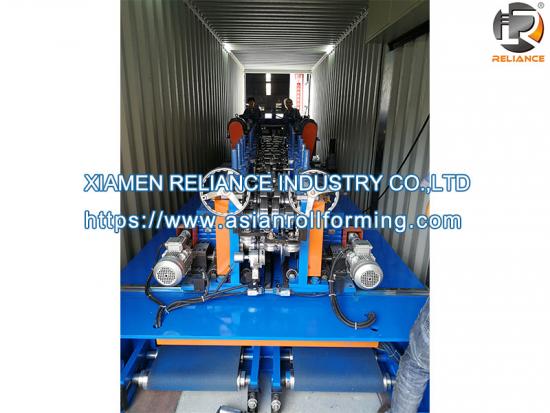

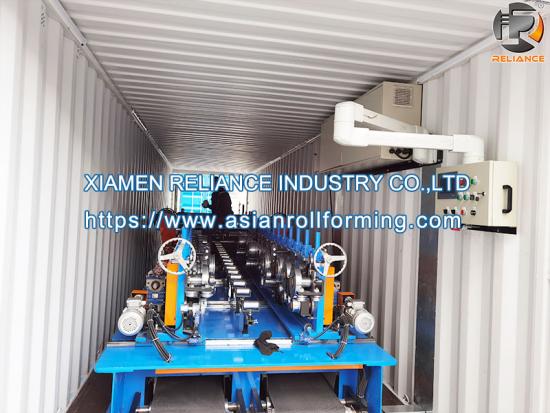

Machine can fix in a 40 feet container to achieve site working purpose.

We also can do a custom roll forming machine, we can design machine according to your specifications and profile drawings.


The production line system includes:



Hydraulic Decoiler/Uncoiler


Flat sheet pre-shearing device


Material feeding & slitting section


Duplex type main forming machine


PLC automatically control cabinet


Product Rack


40 Feet container


Electric Seaming Machine


Manual Edge-locking Pincers

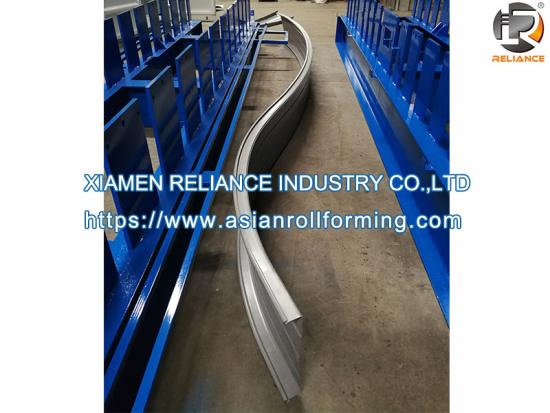

Auto standing seam curving machine


Advantage Features:

Forming and cutting at any required length with pre-set quantity automatically.

The encoder will record signal feedback and showing exact length of product.

The total length of finished coil is able to calculate via control panel.

Steel rollers are fabricated by CNC precision machine and hard chrome coated.

Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

metal standing seam machine:




portable standing seam machine:











standing seam profiling machine:

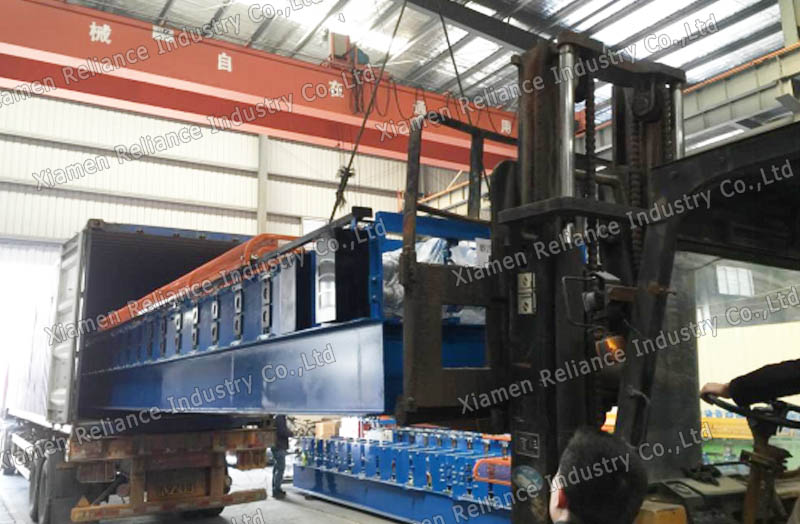

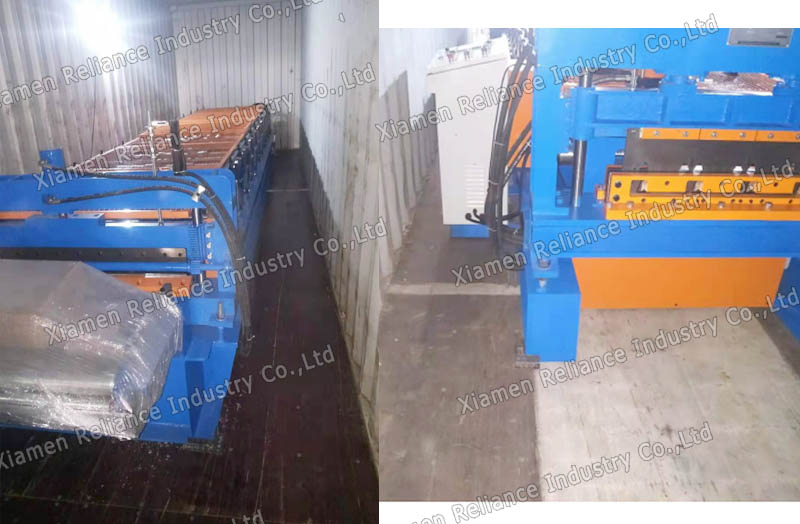

Loading Photos:
