Lockseam Roofing Machine
.jpg "1(30).jpg")
.jpg "2(29).jpg")

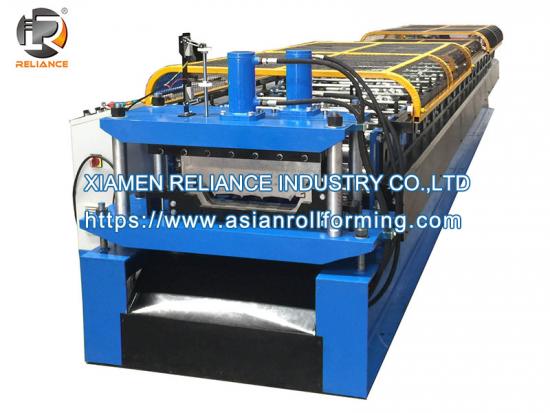

.jpg "3(26).jpg")
.jpg "4(26).jpg")
.jpg "5(24).jpg")

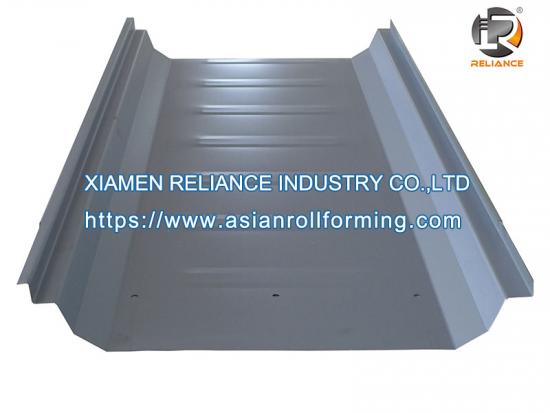

.jpg "6(19).jpg")
.jpg "7(8).jpg")
PAYMENT:T/T,L/C,CASH
LEAD TIME:2~3Months
WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.
ADVANTAGE FEATURES:
1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.
2. Forming, Punching & cutting at any required length with pre-set quantity automatically.
3.The encoder will record signal feedback and showing exact length of product on display.
4.The total length of finished coil is able to calculate via control panel.
5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.
6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.
7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.
Description:
Lockseam Roofing Machine/Seam Lock Foofing Machine/Standing Seam Curving Machine/Seam Lock Profiling Machine/Lock Seam Forming Machine/Electric Seaming Machine:
It can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly punching accuracy, notching for light panel, accurate dimension forming automatically and cut to length, the forming line popular used in PEB construction field.
Roofing install with metal clips and seaming together that can get better joint function, no more leakage after years of raining season affect. Machine fix in container and make into portable type can suit for site working purpose, which much highly improve customer working efficiency.
Working Procedure:
Uncoiling– Roll Forming Machine– Cutting– Collecting

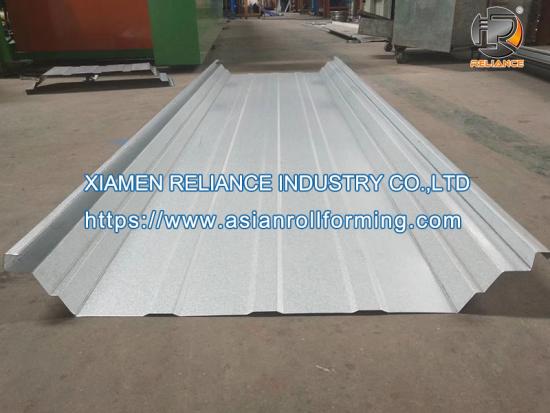

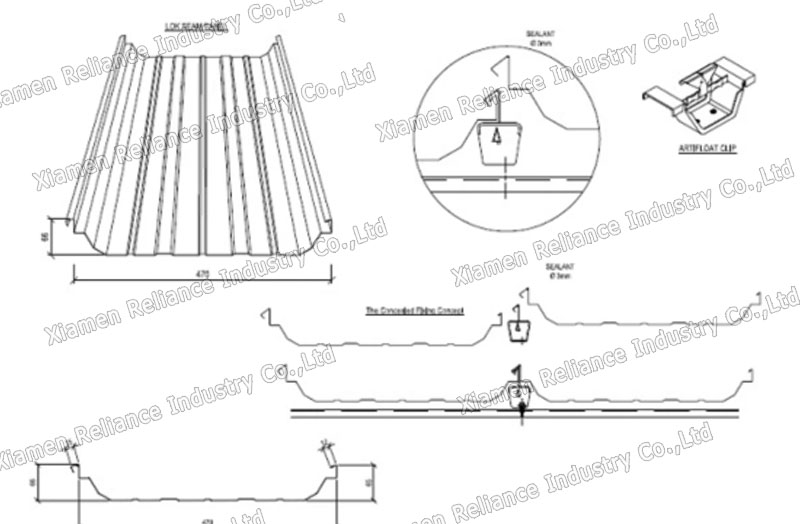

Profile:
.jpg "11(24).jpg")

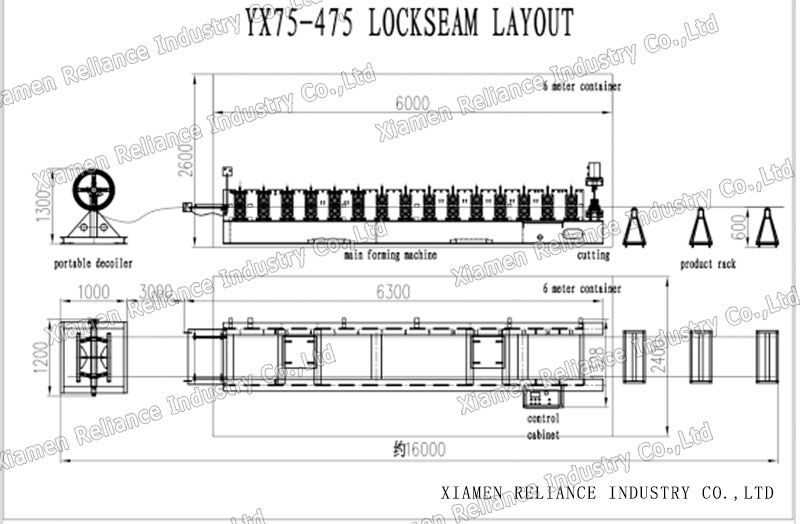

Layout:
.jpg "22(17).jpg")
Technical Details:
The Line’s Specifications | |
Weight | About 4600kgs |
Whole line’s dimension | About 6m x 1.2m x 1.3m (length x width x height) |
Color | Main color: blue |
Warning color: yellow | |
Suitable Raw Material | |
Material | PPGI, GL, PPGL, ALUMINUM |
Thickness | 0.4-0.8mm |
Coil feeding width | 600/610mmm |
Cover width | 475/480mm |
Yield Strength | 350~550Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | About 15 |
Diameter of forming rollers shafts | 75mm |
Roll Forming Speed | 22m/min |
Accessories | One electric seaming machine, two hand pincers |
Forming rollers material | 40Cr, CNC lathes, hard Chrome Coated |
Cutter material | Cr12 mould steel, with quenched treatment |
Controlling system | Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc |
Electric Power requirement | Main motor power: 4kw*2 |
Hydraulic unit motor power: 4kw | |
Electric voltage | According to customer’s requirement |
Main Components | |
Decoiler (manual and automatic for options) | 1 set |
Roll Forming system | 1 set |
20 feet container | 1 unit, modify to site working purpose |
Electric seaming machine | 1 set |
Hand seaming pincers | 2 units |
PLC control box | 1 set |
Hydraulic unit | 1 set |
Run outs tables | 1 set |

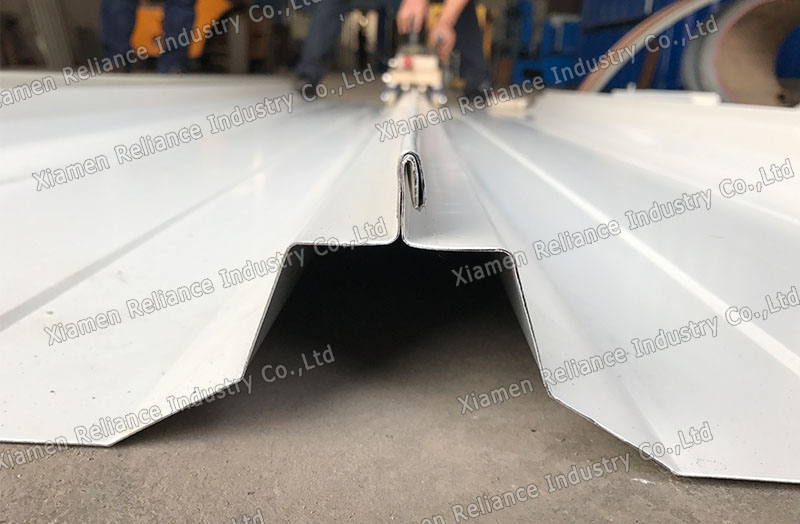

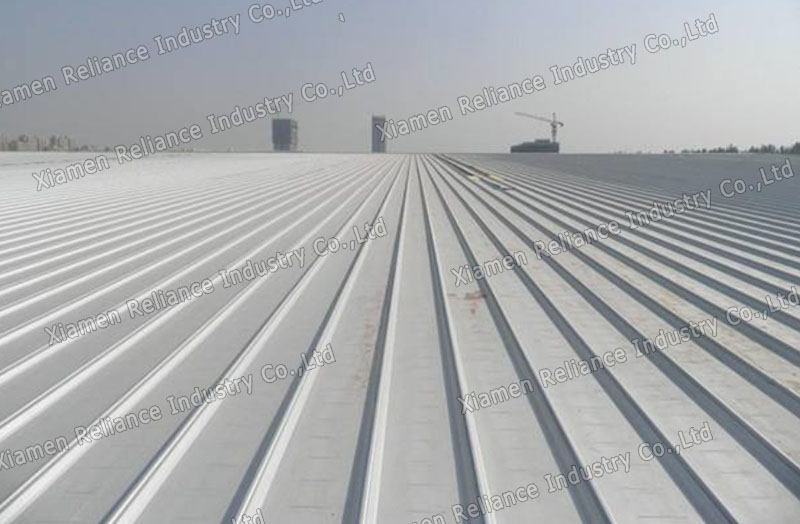

electric seaming machine:
.jpg "33(14).jpg")
.jpg "44(7).jpg")

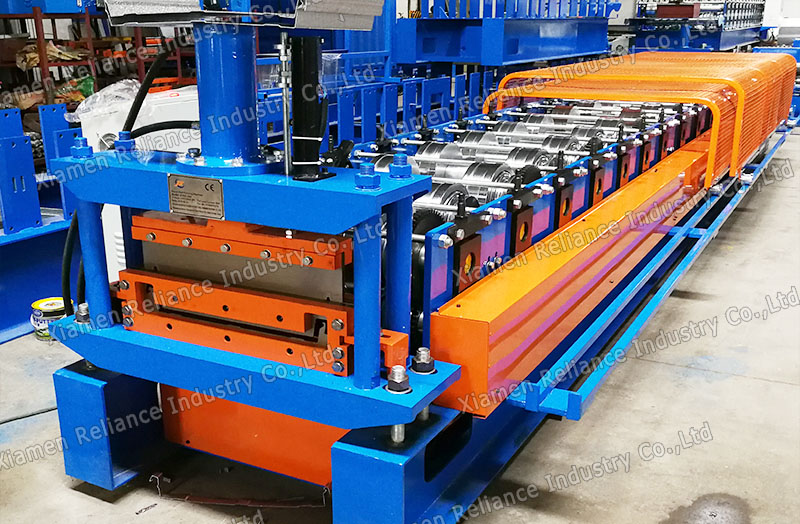

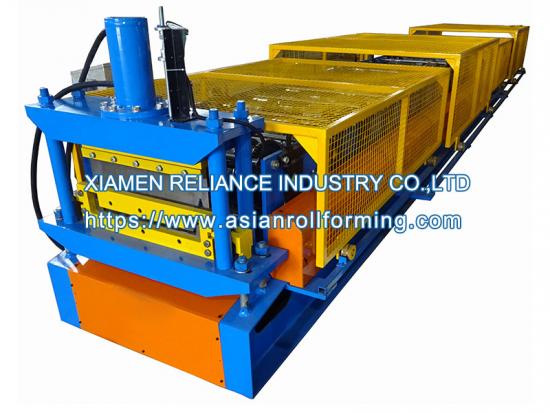

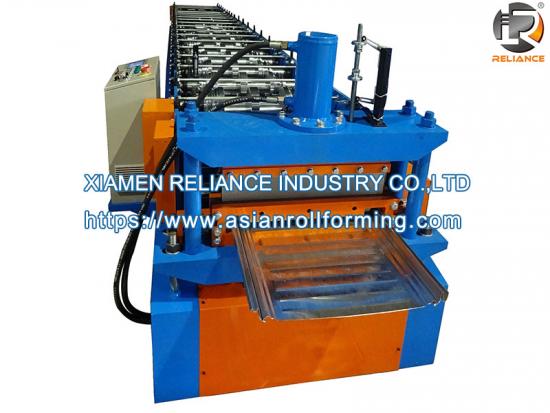

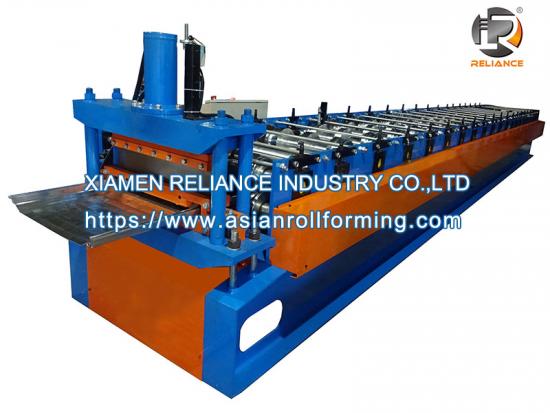

lock seam forming machine:
.jpg "55(5).jpg")

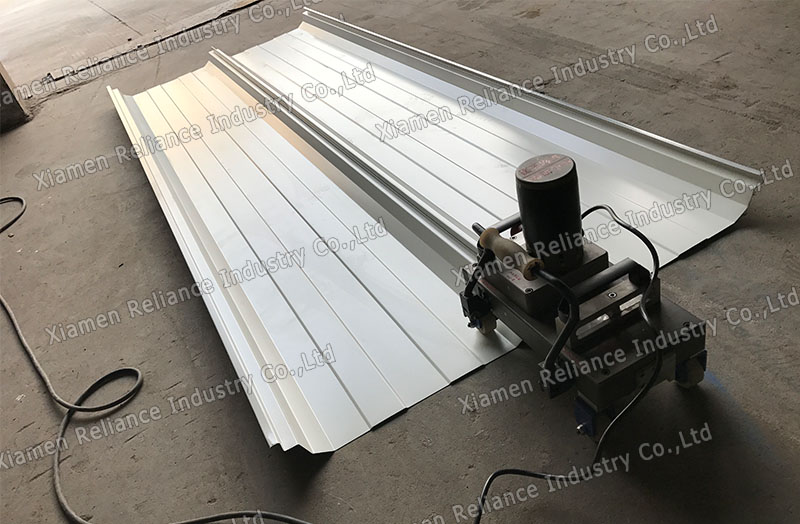

lock seam seaming machine:
.jpg "66(2).jpg")

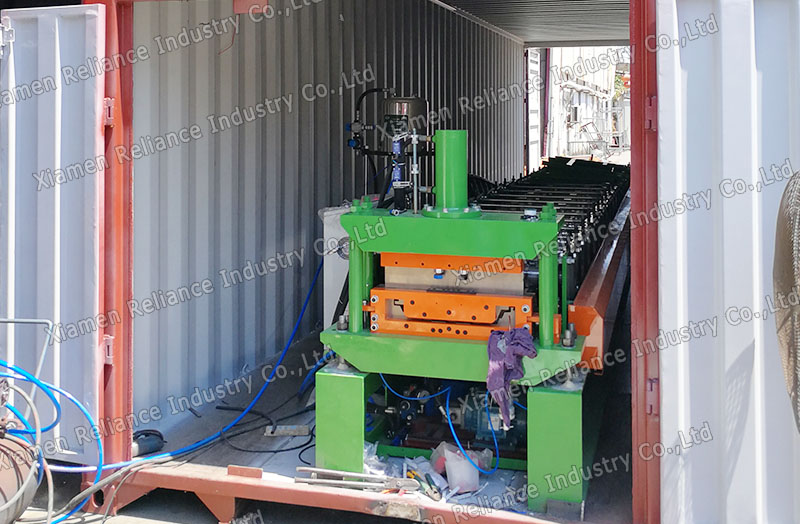

portable seam lock machine:
.jpg "77(1).jpg")

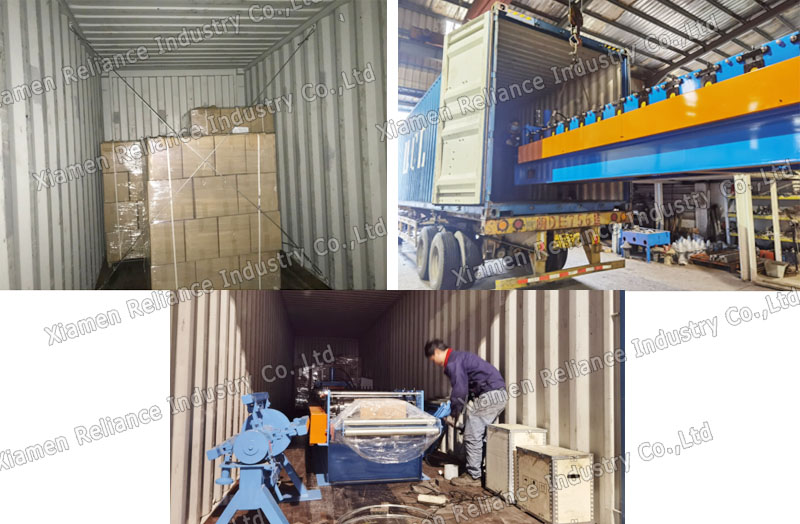

Loading Photos：
