Clip Lock Roofing Sheet Roll Forming Machine

  • 1(29).jpg

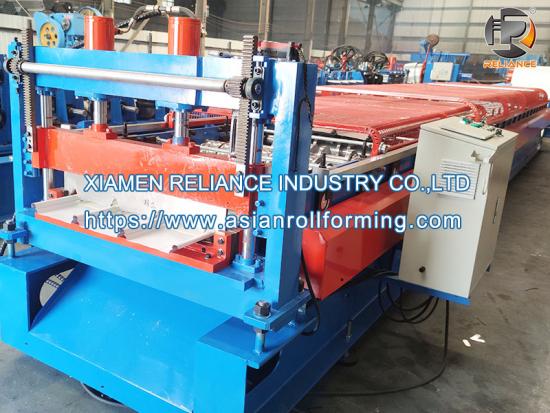

  • 2(28).jpg

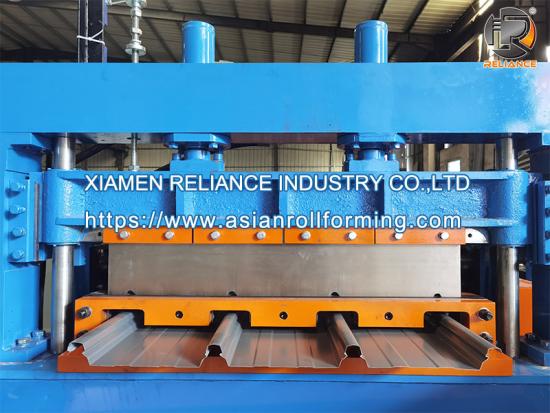

  • 3(25).jpg

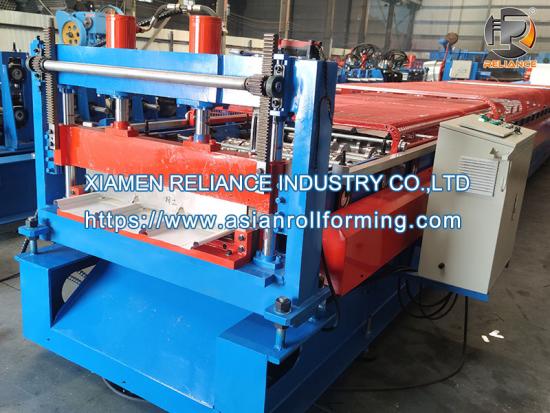

  • 4(25).jpg

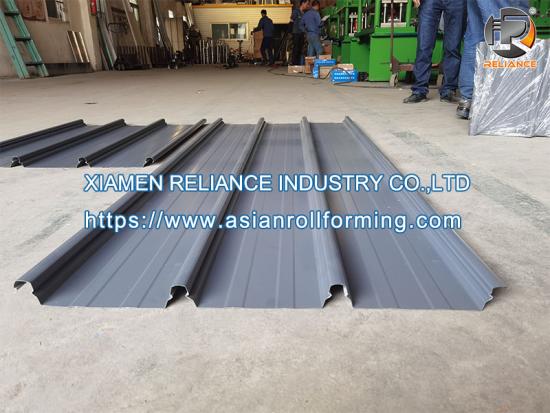

  • 5(23).jpg

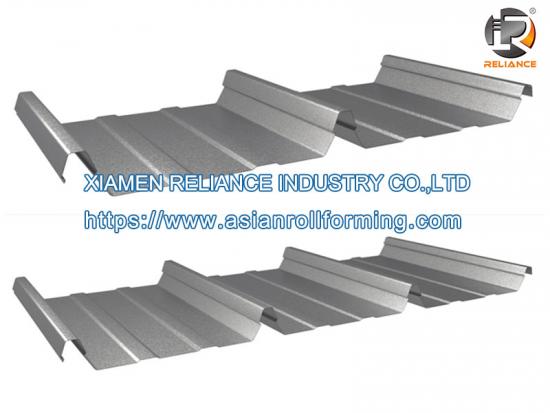

  • 6(18).jpg
Klip Lok Roofing Machine/klip-lok 700 roof machine/Clip Lock Roofing Sheet Roll Forming Machine/Kliplok Sheet Panel Making Machine/clip lock machine is used for producing roofing panels which save time and money.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:


Klip Lok Roofing  Machine/klip-lok 700 roof machine/Clip Lock Roofing Sheet Roll Forming Machine/Kliplok Sheet Panel Making Machine/clip lock machine :

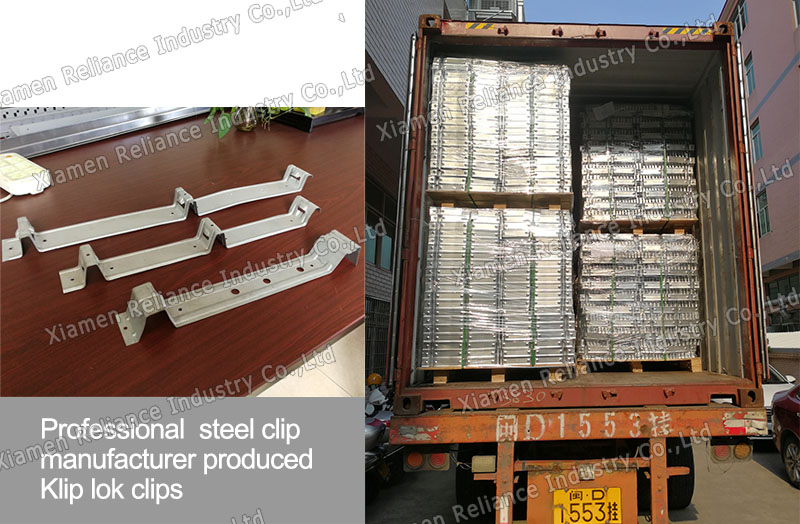

It can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly punching accuracy, accurate dimension forming automatically and cut to length, the forming line capable well improved customer production capacity. It also offers bold ribs and concealed fix roofing claddings or concealed fastener panels.


Working Procedure:


Uncoiling–Pre-shearing–Roll Forming Machine– Cutting– Collecting



Technical Details:


The Line’s Specifications

Weight

About 11800kgs

Whole line’s dimension

About 11m x 1.3m x 1.6m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils, PPGI

Thickness

0.6-0.8mm

Coil feeding width

914mm

Yield Strength

350Mpa



Machine Components:





5Ton*1250mm Hydraulic un-coiler:


Hydraulic system expand coil inner hole, Pump motor: 4KW

Frequency Inverter to regulate turning speed, Motor: 4KW

Taper-wedge expanding system

Load capacity = Max.5Tons, Coil width = Max.1250mm

Coil Inner-diameter=510±30 mm, Coil out diameter Max 1200mm

Automatic stopping device with limited switch as assistance to control stop/star rotation


Entry roller & Manual Pre-shearing device:

Smart cut control, to cut off the end of the final piece of sheet only

Working thickness up to 0.7mm

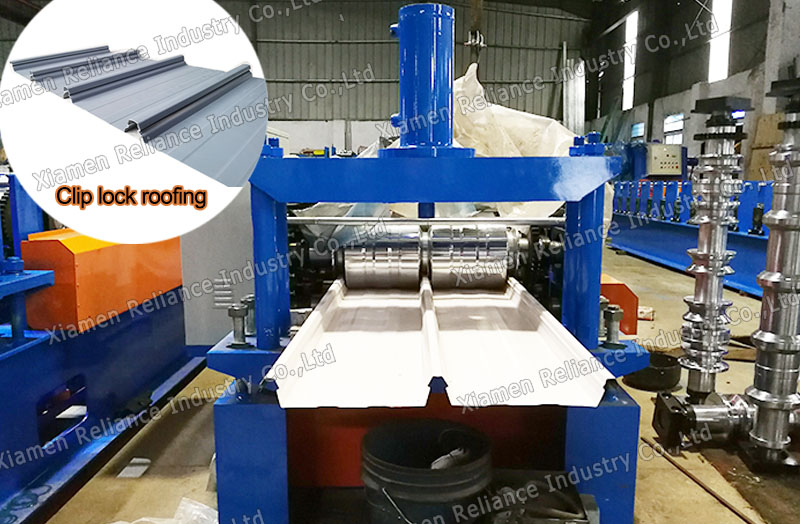

Cold Rolling Mills:

Feeding section with guide

Gear/Sprocket driving, 24-step to form, wall plate frame design

Rollers material 40Cr Steel, CNC lathes, fine polished, hard Chrome Coated

Shafts material 45# Steel, Diameter ф75mm, Precision Machined, fine Polished

Main motor =7.5KW, frequent speed control

Max. Line speed of roll former:Approx. 15m/min

Protection Mesh Cover Above Roll-former To Avoid Hands Go Inside

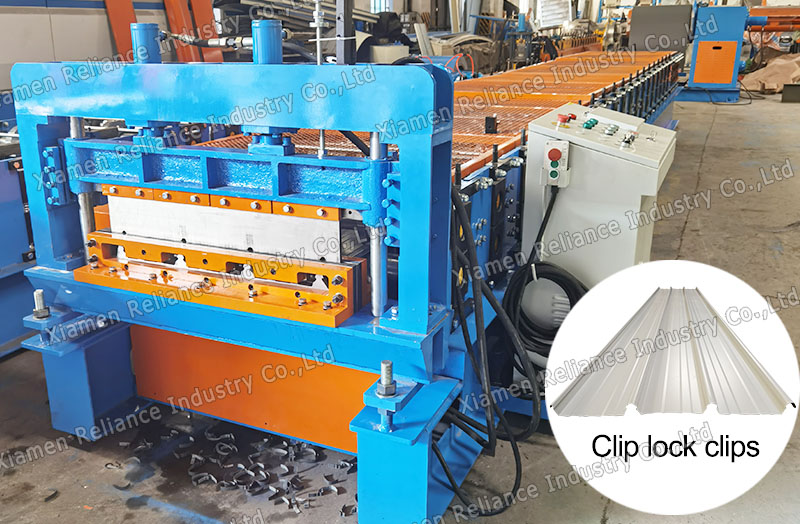

Hydraulic Cutting Device:

Stop to cut, Post cut, slug breaker

Cutting tool material: Cr12, Heat treatment

Hydraulic unit, Pump motor =3.0KW


PLC Control System

Control the quantity & cutting length automatically

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter(Schneider), Encoder (Omron), etc

Cut-to-length tolerance≤±2mm

24V Control voltage

Portable controller with forward/backward/emergency stop buttons


Product Rack :

 Un-powered, 3 units

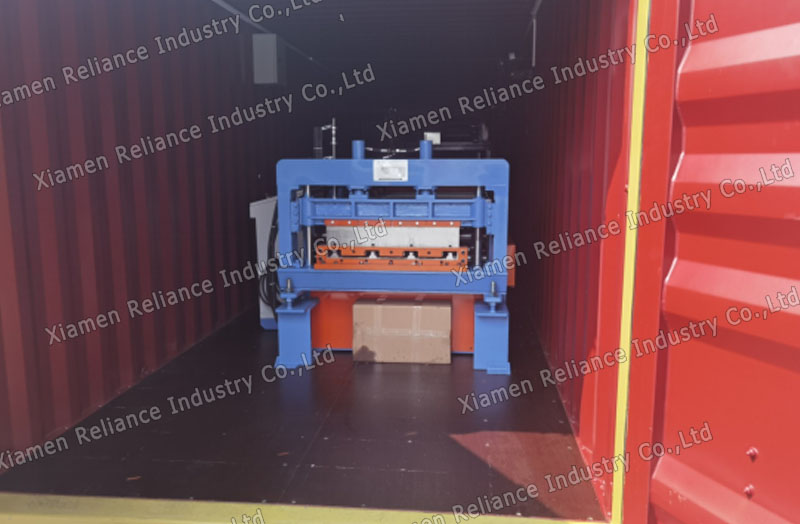

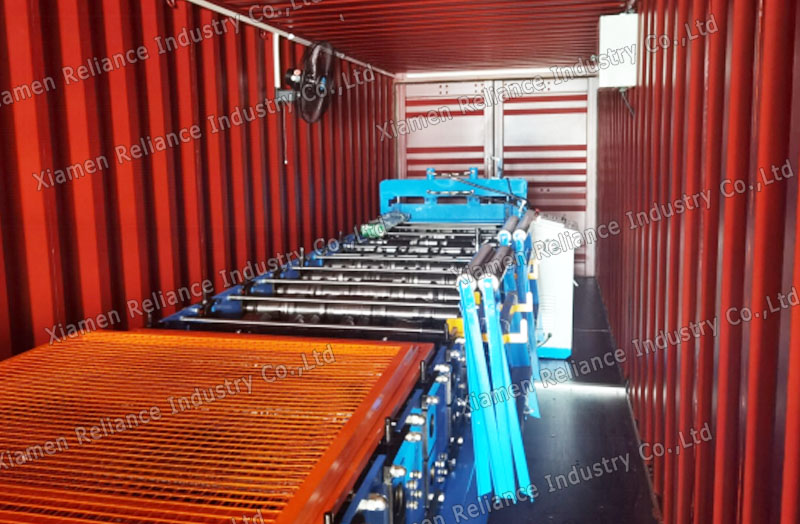

40ft container modify to portable type :

Open one more door and install electrical system


Why Choose Us:

Original manufacturer with prompt directly service support.

Professional and deep experienced in customized roll forming field.

Reasonable price with qualified, reliable, humanization design and solutions.

We sincerely treat customer as friend and build lasting relationship.
