Boxbeam Roll Forming Machines

  • 1(21).jpg
  • 2(21).jpg
  • 3(21).jpg
  • 4(17).jpg

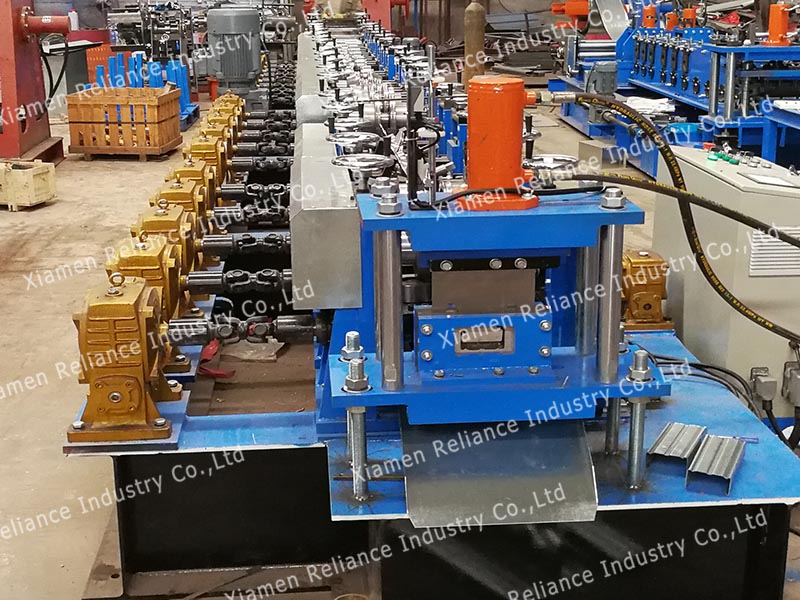

Box Beam Roll Forming Machines/Racking System Box Beam Roll Former Machine/Box Beam Channel Roll Former Machine is used for producing various sizes of box beams that used in warehouse pallet rack and logistic storage rack system, building pillar system, instead of traditional square welding pipe.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Box Beam Roll Forming Machines/Racking System Box Beam Roll Former Machine/Box Beam Channel Roll Former Machine:


The box beam sizes are adjustable automatically. It can be fabricated in 0.8~2.0mm thickness and almost any length. With highly forming accuracy and cut to length, the forming line capable well improved customer production capacity.

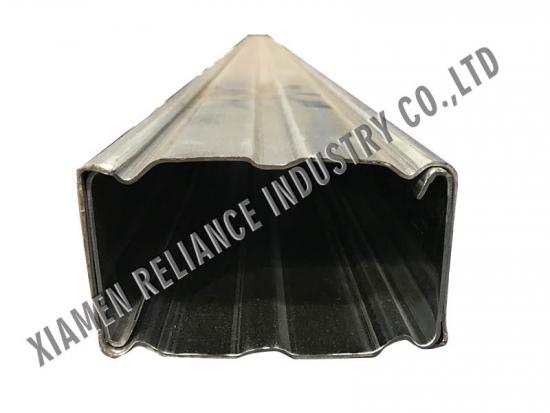

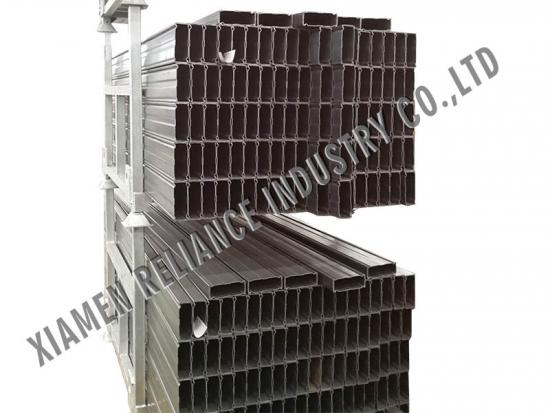

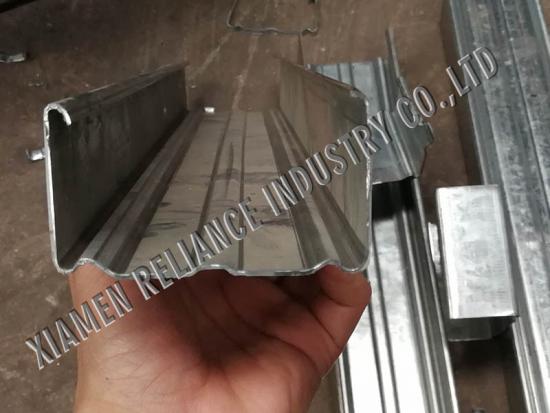

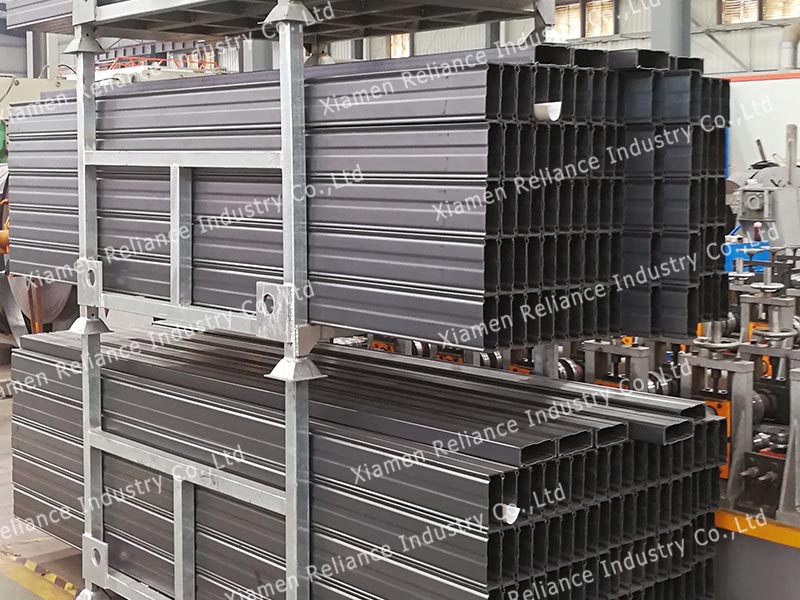

Box beams  introduction

Box beams vary in different sizes and can be customized as per requirements according to load capacity. It has no inset step, but has four flat flanges looks like a box. In practical usage, the load beams mounted onto upright rack column with hooks or integral rivets. Some special systems also may utilize extra clips or bolts for locking beam and the upright. In market, the regular box beams normally made up from two independent c channels and nested together like a box. The box beam has stronger strength compare with other types of steel beams.

Technical Details:


The Line’s Specifications

Weight

About 14500kgs

Whole line’s dimension

About 13m x 1.5m x 1.5m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

0.8-2.0mm

Coil width

According to products size

Yield Strength

250-400Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 16

Diameter of forming rollers shafts

75mm

Roll Forming Speed

18m/min

Production Speed

18m/min

Forming rollers material

Cr12 mould steel, with quenched treatment

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 15kw

Size variation motor power: 1.5KW+0.75KW

Hydraulic unit motor power: 7.5kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set

Guiding device

1 set

Leveling system

1 set

Roll Forming system

1 set

Stop Cutting system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set

▶Racking System Box Beam Roll Former Machine:
