Bracing Roll Forming Machine

  • 1(20).jpg

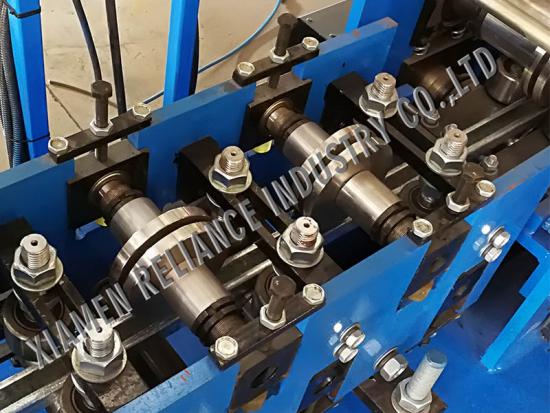

  • 2(20).jpg

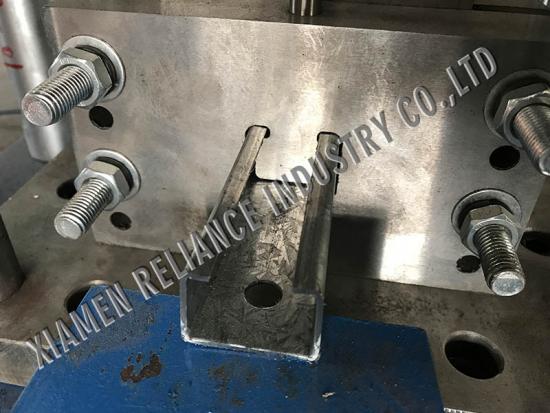

  • 3(20).jpg
  • 4(16).jpg
Bracing Roll Forming Machine/Rack Bracing Roll Forming Machine/C Braceing Cold Rolled Machine/Section Roll Froming Machines

PAYMENT:T/T,L/C,CASH

SHIPPING PORT:Xiamen,China

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Bracing Roll Forming Machine/Rack Bracing Roll Forming Machine/C Braceing Cold Rolled Machine/Section Roll Froming Machines:

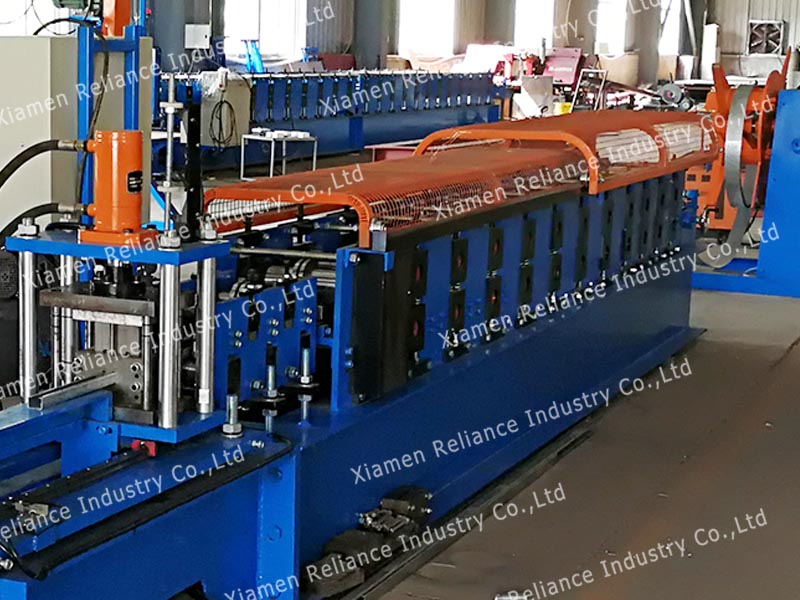

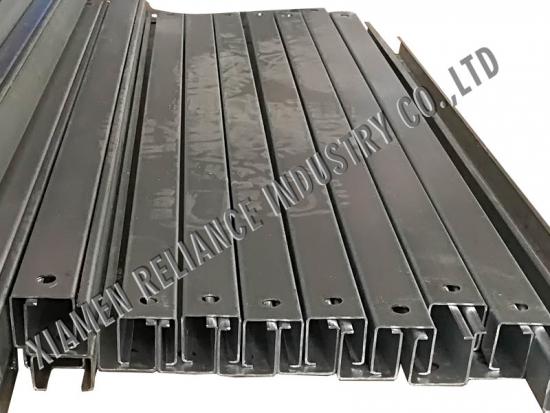

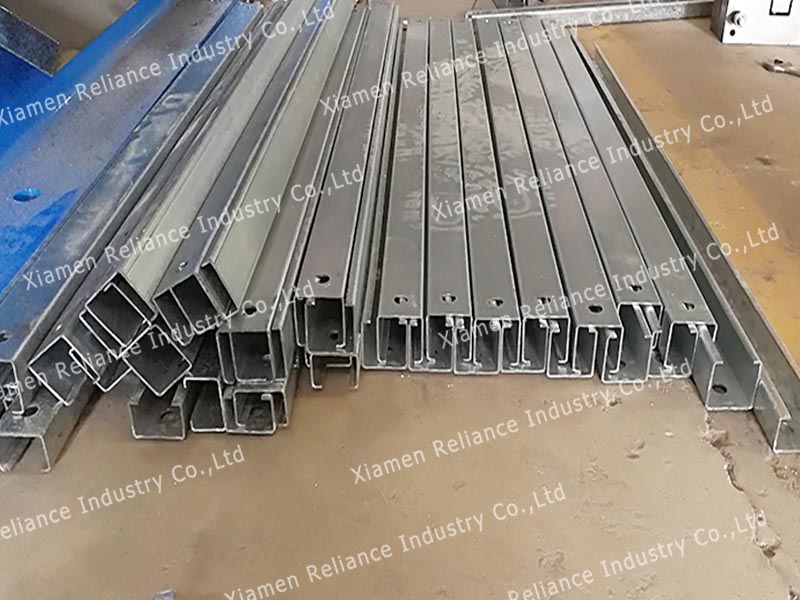

is used for producing C bracing channels that used for supermarket shelving panel system and logistic storage rack system, it majorly for enlarge the shelving panel capacity. It can be fabricated in 1.5~2.0mm thickness and almost any length. With highly forming accuracy and cut to length, the forming line capable well improved customer production capacity.

Technical Details:


The Line’s Specifications

Weight

About 4500kgs

Whole line’s dimension

About 11m x 1.2m x 1.4m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

1.6-2.0mm

Coil width

According to products size

Yield Strength

350-550Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 12

Diameter of forming rollers shafts

75mm

Roll Forming Speed

12m/min

Production Speed

12m/min

Forming rollers material

Cr12 mould steel, with quenched treatment

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 7.5kw

Hydraulic unit motor power: 7.5kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set

Guiding device

1 set

Leveling system

1 set

Roll Forming system

1 set

No-Stop Cutting system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set
