Cabinet Frame Nine Fold Rack Forming Machine

  • 1(9).jpg
  • 2(9).jpg
  • 3(9).jpg
  • 4(6).jpg
  • 5(5).jpg

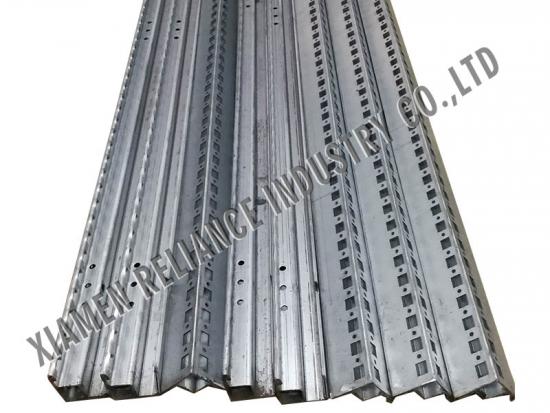

  • 6(2).jpg
Cabinet Frame Nine Fold Rack Forming Machine/electrical cabinet 9 fold roll forming machine/Cabinet Frame Nine Fold Rack roll Forming Machine is used for producing cabinet rack such as 9 fold profile, multi fold section panels, enclosure steel frame components

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Cabinet Frame Nine Fold Rack Forming Machine/electrical cabinet 9 fold roll forming machine/Cabinet Frame Nine Fold Rack roll Forming Machine:

It can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly punching accuracy, accurate dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.

▷▶Working Procedure:

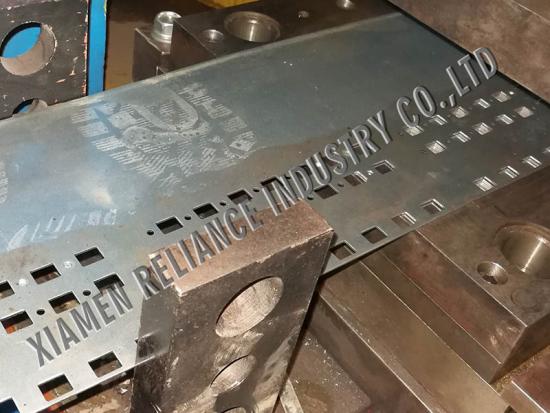

Uncoiling– Leveling– Pre-shearing& Welding Device– Servo Feeding and Press– Notching & Hydraulic punching– Roll Forming Machine– Saw Cutting– Collecting

Technical Details:

The Line’s Specifications

Weight

About 12000kgs

Whole line’s dimension

About 25m x 1.2m x 1.5m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

1.5mm

Coil Feeding Width

206mm

Cable Tray Flange Height

43*43mm

Yield Strength

350Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 26

Diameter of forming rollers shafts

75mm

Roll Forming Speed

18m/min

Production Speed

8m/min

Forming rollers material

Cr12 mould steel, with quenched treatment

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 18.5kw

Hydraulic unit motor power: 7.5kw

Electric voltage

According to customer’s requirement

Main Components

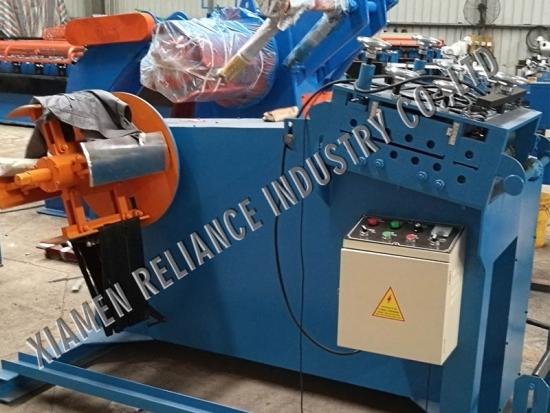

3 in 1 decoiler with leveling

1 set, 3T*300mm

Shearing & Welding Device

1 set, for coil strip head/tail welding

Servo Feeder

1 set

Stamping Machine

1 set

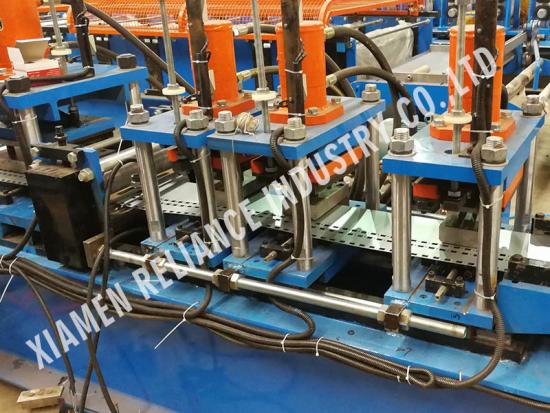

Punching & Notching Unit

1 set

Roll Forming system

1 set, auto size adjustment

Not-stop Saw cutting Device

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set

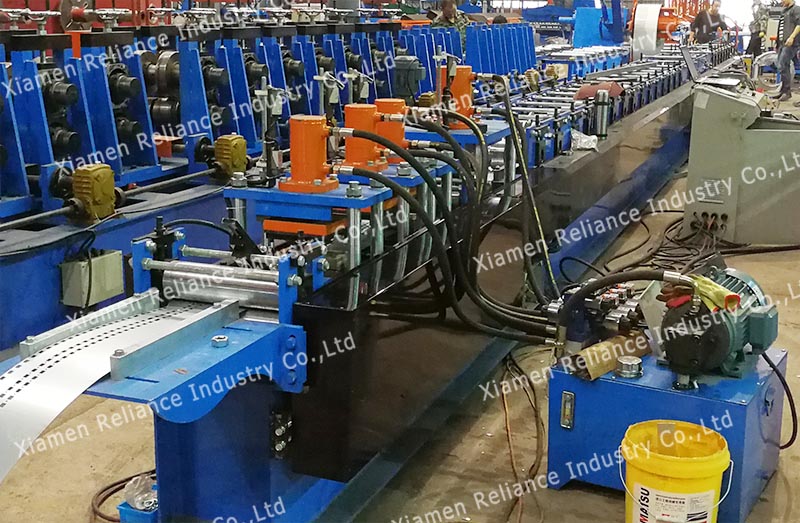

▷▶Cabinet Frame Nine Fold Rack roll Forming Machine:


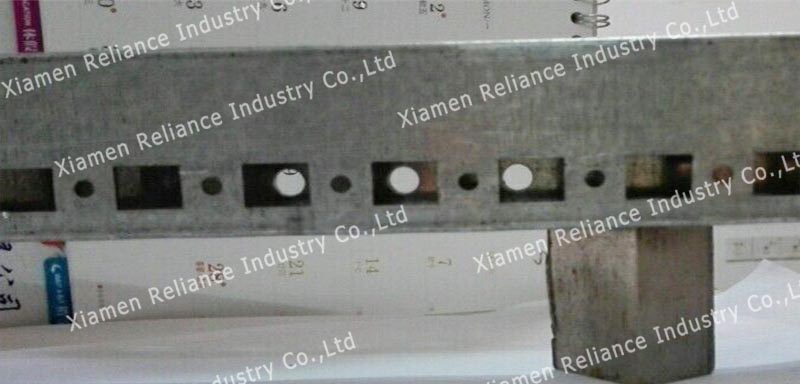

▷▶ steel enclosure frame:

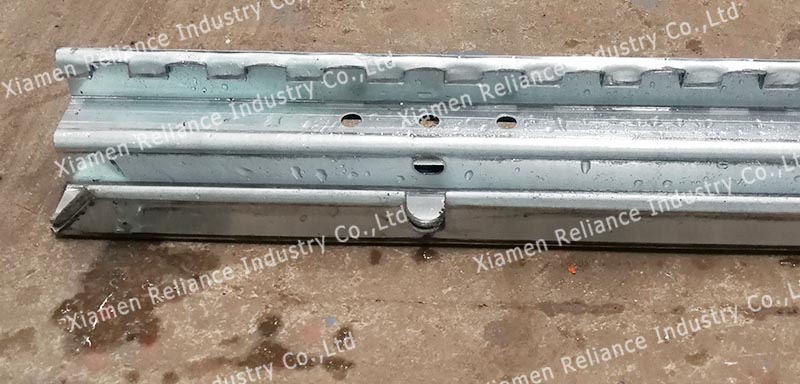

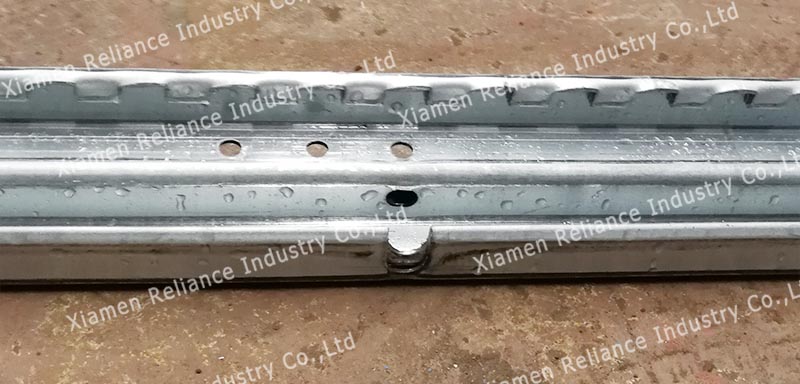

▷▶multi fold section for panel:

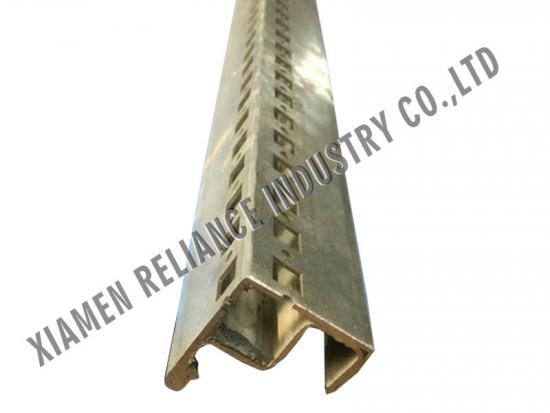

Nine Fold Profile Electric Cabinet Machine:
