4.5MM Solar Panel Mounting Bracket Roll Forming Machine Manufacturers

  • 1(10).jpg
  • 2(10).jpg
  • 3(10).jpg
  • 4(7).jpg
  • 5(6).jpg
Solar Purlin Machine/solar panel support channel roll formine machines/c section frame solar machine/solar section purlin roll forming is used for producing heavy steel section purlins, solar support stand and solar purlin rackings.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

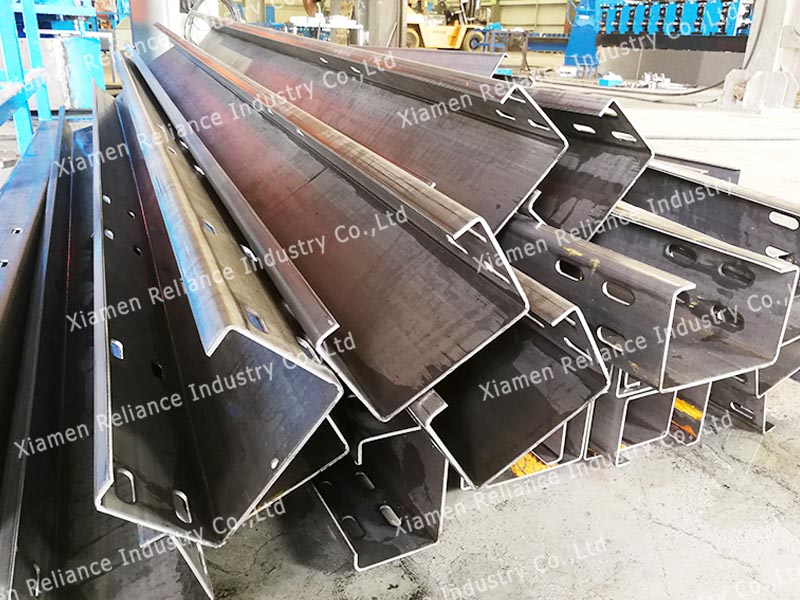

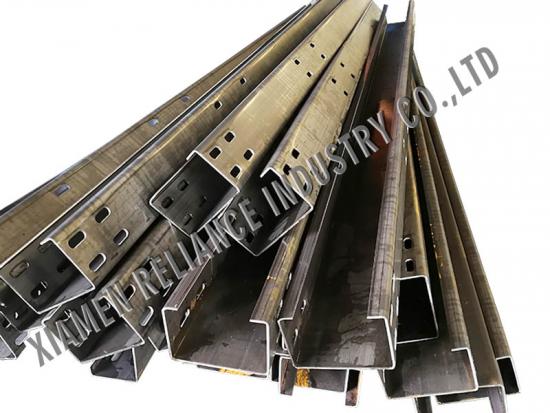

The solar channel beam can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly punching accuracy, accurate dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.

Working Procedure:

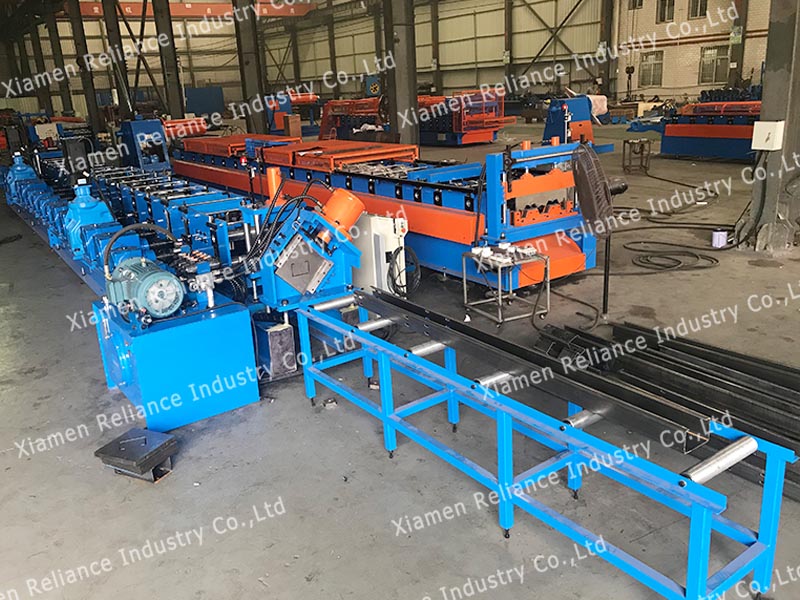

Uncoiling– Leveling– Hydraulic Punching– Roll Forming Machine– Cutting– Collecting

Technical Details:

The Line’s Specifications

Weight

About 17500kgs

Whole line’s dimension

About 22m x 2.2m x 1.6m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

2.5-4.5mm

Cable Purlin Width

100-150mm

Cable Purlin Flange Height

80-100mm

Yield Strength

550Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 16

Diameter of forming rollers shafts

95mm

Roll Forming Speed

18m/min

Production Speed

8m/min

Forming rollers material

Cr12 mould steel, with quenched treatment

Cutter material

Cr12Mov mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 22kw*2

Hydraulic unit motor power: 15kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set

Leveling system

1 set

Pre-punching Device

1 set

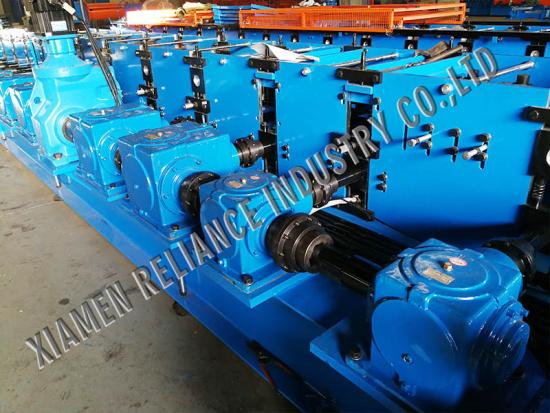

Roll Forming system

1 set

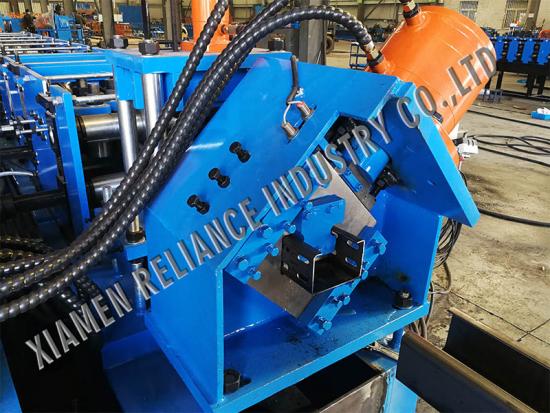

Post cutting device

1 set

PLC control box

1 set

Hydraulic unit

1 set

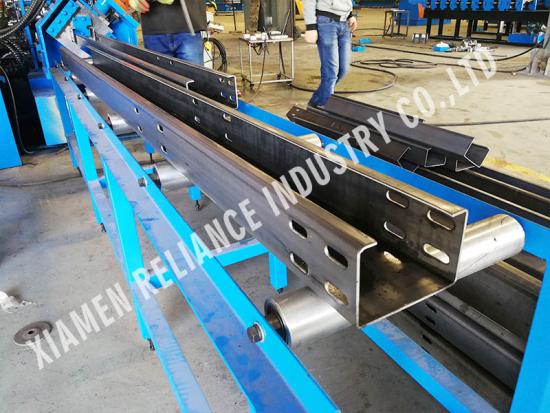

Run outs tables

1 set
