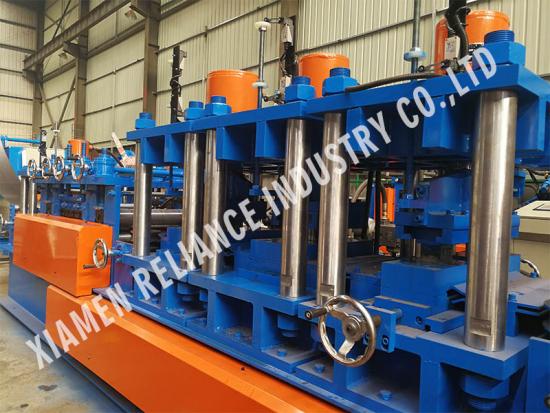

Steel Cable Drums Corss Beam Rollformer Machine

  • 1(11).jpg
  • 2(11).jpg
  • 3(11).jpg
  • 4(8).jpg
  • 5(7).jpg
  • 6(3).jpg
Cable Drum Reel Rollformer/cable drum roll forming machine/teel Wire And Steel Tape Cable Drums Rollformer Machine is used for producing steel cross section beams for making steel cable drum reel or cable drum stand. which can be used for buncher, stranding machine, extruder, cabling machine and armouring machine.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Cable Drum Reel Rollformer/cable drum roll forming machine/cable drum reel making machine

The cable drum real beams can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly punching accuracy, accurate dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.

Working Procedure:

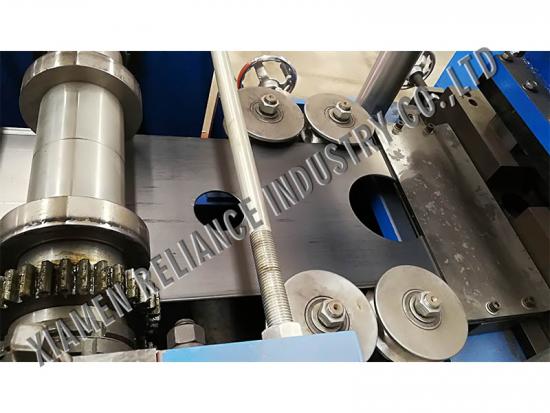

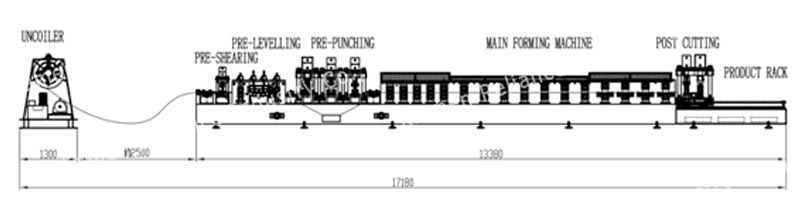

Uncoiling– Leveling– Pre-cutting/Pre-notching and Pre-Punching– Roll Forming Machine– Curved Cutting Device-Flat Cutting Device– Collecting



Technical Details:


The Line’s Specifications

Weight

About 18500kgs

Whole line’s dimension

About 17.18m x 1.3m x 1.5m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

1.5-4.2mm

Cable drum beam width

200mm

Cable Tray Flange Height

48mm

Yield Strength

350Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 16

Diameter of forming rollers shafts

95mm

Roll Forming Speed

18m/min

Production Speed

10m/min

Forming rollers material

Cr12 mould steel, with quenched treatment

Cutter material

Cr12Mov mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 30kw

Hydraulic unit motor power: 11kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set

Leveling system

1 set

Pre-cutting

1 set

Pr-notching

1 set

Pre-punching

1 set

Roll Forming system

1 set, auto size adjustment

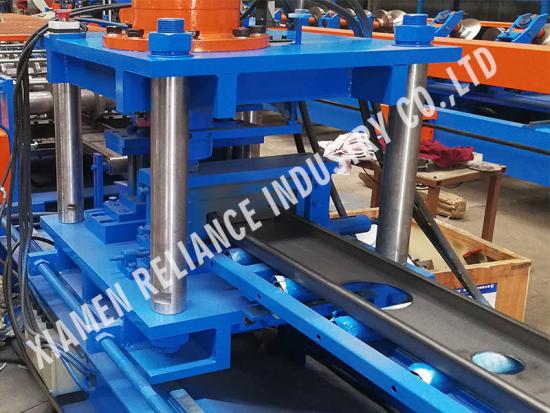

Hydraulic Dual post cutting section

2 sets

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set


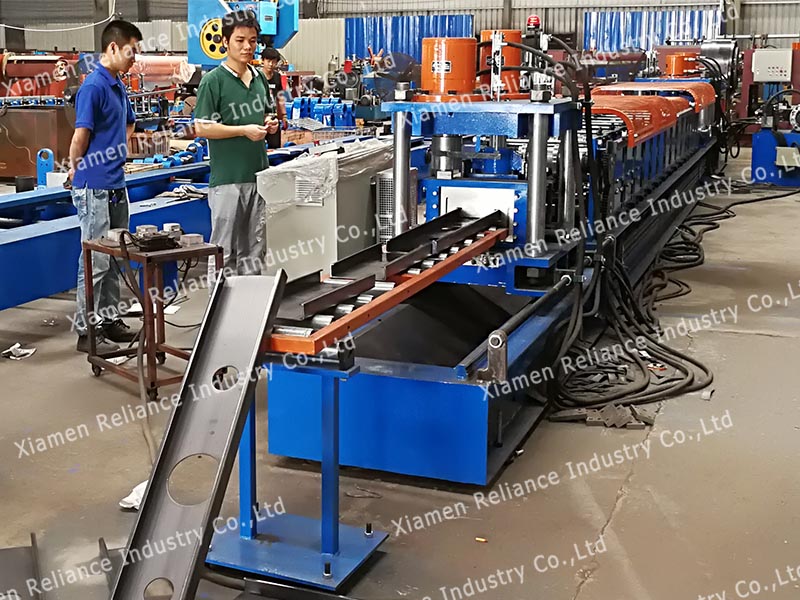

▷▶Steel Cable Drum Assembly Roll Forming Machine/Steel Cable Drums Rollformer Machine:


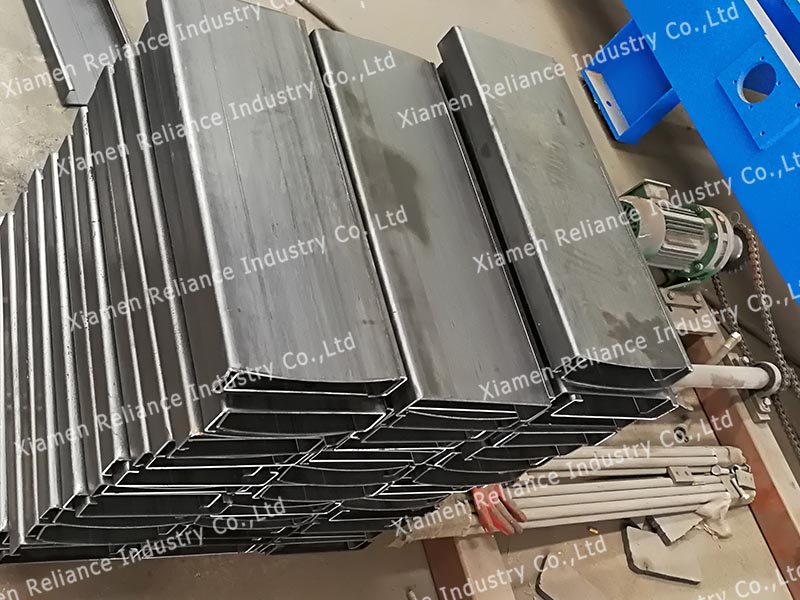

▷Cable drum stand beam:

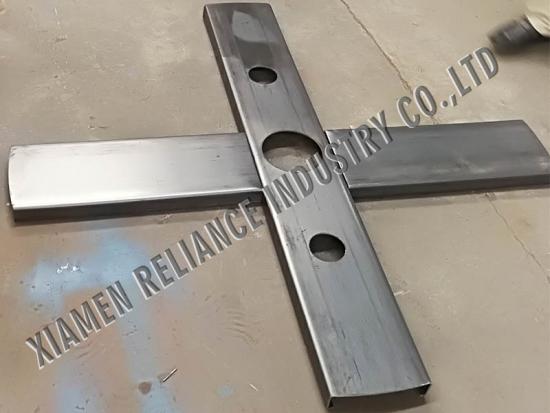

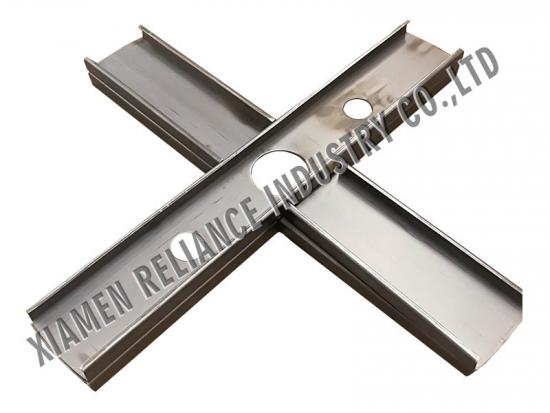

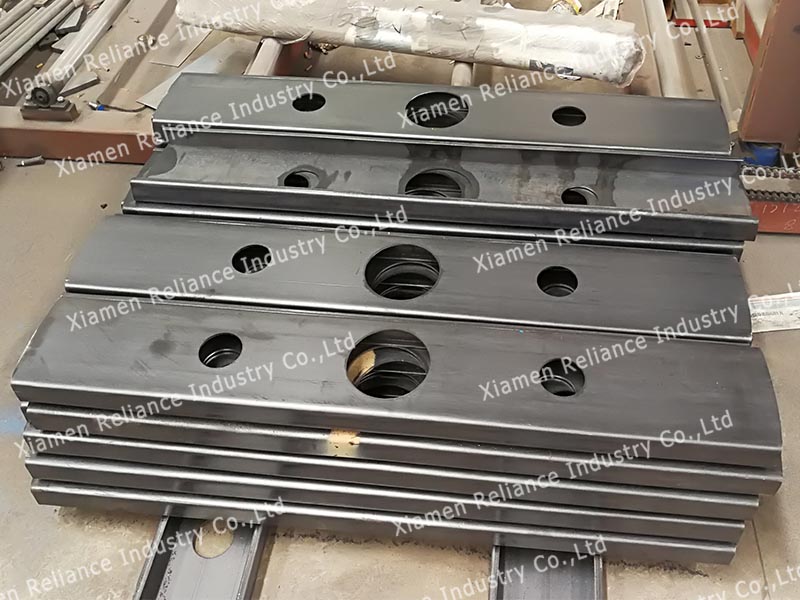

▷Cable durm cross beam:
