Door Frame Roll Former

  • 1(25).jpg
  • 2(25).jpg
  • 3(25).jpg
  • 4(21).jpg

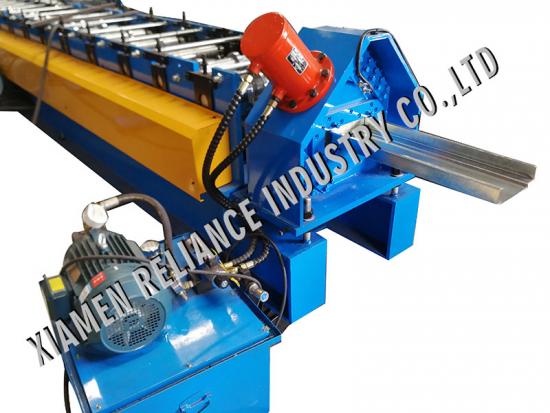

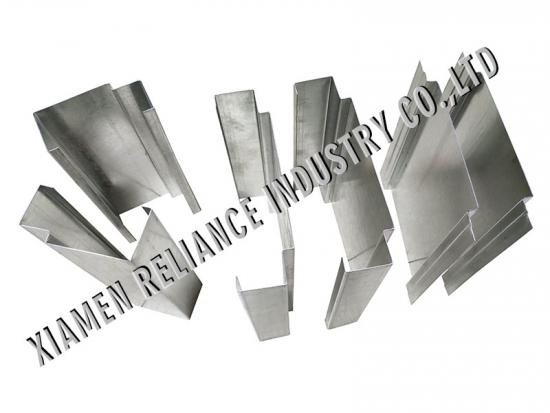

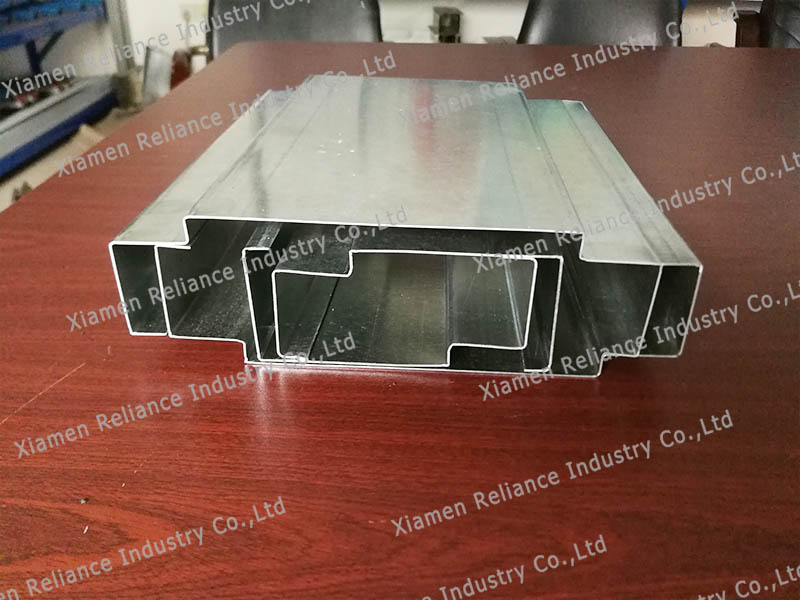

Door frame roll former/steel door frame forming machine/door frame roll forming machine is used for producing steel door frames, such as single door jamb, down sides door frame, door frame cover etc…

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Door frame roll former/steel door frame forming machine/door frame roll forming machine use in inner house door frame making system. The steel door frame can be fabricated from various material thicknesses and in almost any length. Lock install area notching, frame joint parts punching are available if have demand. With highly dimension forming automatically and cut to length, the forming line capable well improved customer production capacity.

Technical Details:

The Line’s Specifications

Weight

About 6150gs

Whole line’s dimension

About 11.5m x 1.6m x 1.2m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

0.8-1.5mm

Coil width

According to products size, many sizes available

Yield Strength

550Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 17

Diameter of forming rollers shafts

75mm

Roll Forming Speed

15m/min

Production Speed

8m/min as per order length

Forming rollers material

Gcr15 mould steel, with quenched treatment

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 25kw

Hydraulic unit motor power:7.5kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set

Guiding device

1 set

Leveling system

1 set

Punching machine

If need as per requirements

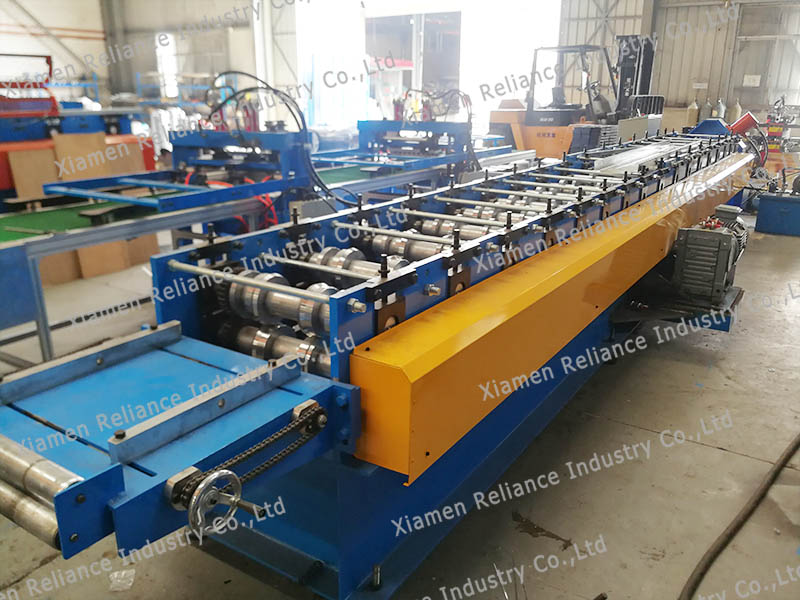

Roll Forming system

1 set

Hydraulic Cutting system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set

●Steel door frame making machine:



Door jamb machine:


●Door frame machine manufacturer:
