Top Beam Roll Forming Machine

  • 1(26).jpg
  • 2(26).jpg

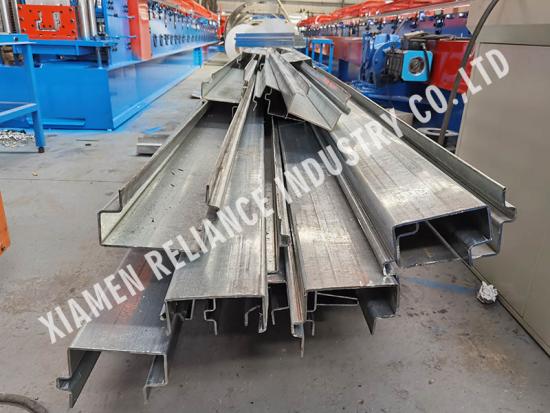

Top Beam Roll Forming Machine/Container House Top Beam Roll Forming Machine/ Container House Equipment Steel beam that produced by roll forming machine nowadays is widely used in container house system, which is more movable, reusable and modular building house.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

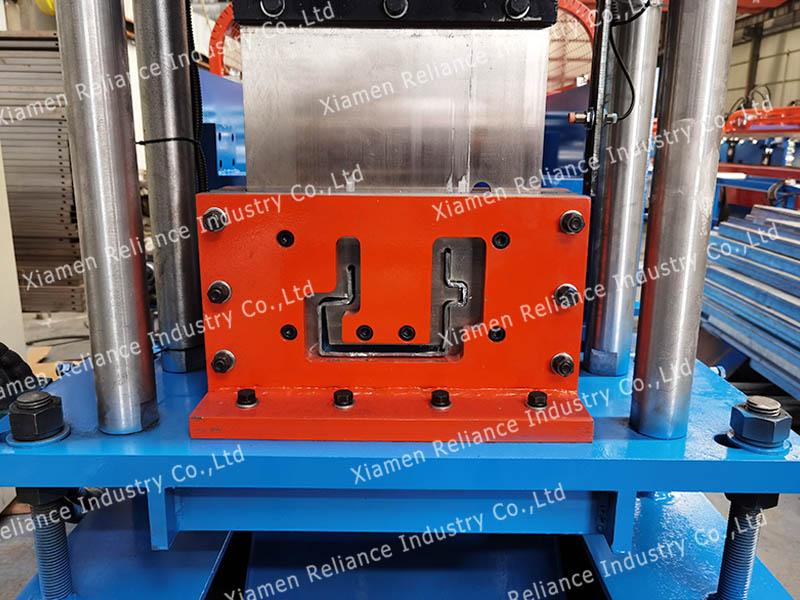

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Top Beam Roll Forming Machine/Container House Top Beam Roll Forming Machine/ Container House Equipment:




Technical Details:

Profile NO.: YX50-110-140

Material available: Galvanized steel

Material thickness: 2~3.5mm

Yield strength: 350Mpa

Machine size: 12MX1.3MX1.5
