House Courtyard Fence Roll Forming Machine

  • 1(2).jpg
  • 2(2).jpg
  • 3(2).jpg
  • 4(2).jpg
  • 5(1).jpg
House Courtyard Fence Roll Forming Machine/Metal Picket Fence Roll Former Machine/fence plate forming machine is used for producing steel house fencing.

PAYMENT:T/T,L/C,CASH

SHIPPING PORT:Xiamen,China

LEAD TIME:2~3Months

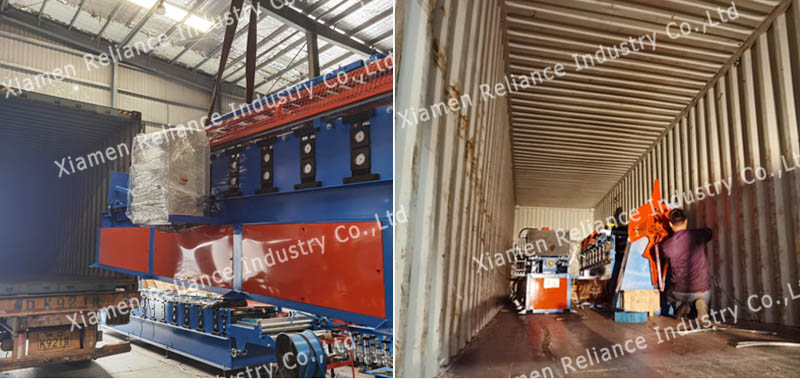

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


House Courtyard Fence Roll Forming Machine/Metal Picket Fence Roll Former Machine/fence plate forming machine :

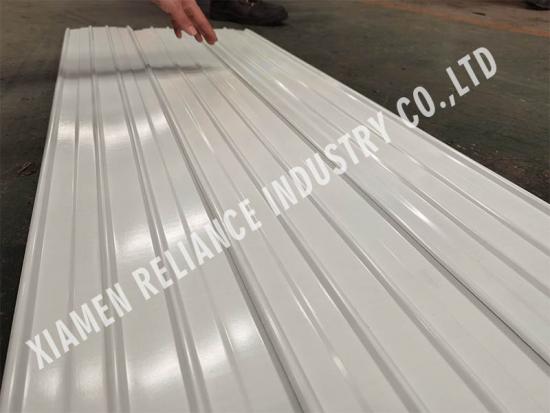

The steel fencing install with fencing post are widely used in house guard protection field. The steel house fence can be fabricated from various material thicknesses and in almost any length. With automatically forming and cut to length, the roll forming line capable well improved customer production capacity.


Technical Details:



The Line’s Specifications

Weight

About 2300kgs

Whole line’s dimension

About 10m x 1.25m x 1.45m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

0.2-0.7mm

Coil Feeding Width

200mm

Yield Strength

550Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 10

Diameter of forming rollers shafts

60mm

Roll Forming Speed

22m/min

Production Speed

22m/min

Forming rollers material

Cr12 mould steel, with quenched treatment

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 4kw

Hydraulic unit motor power: 4kw

Electric voltage

According to customer’s requirement

Main Components

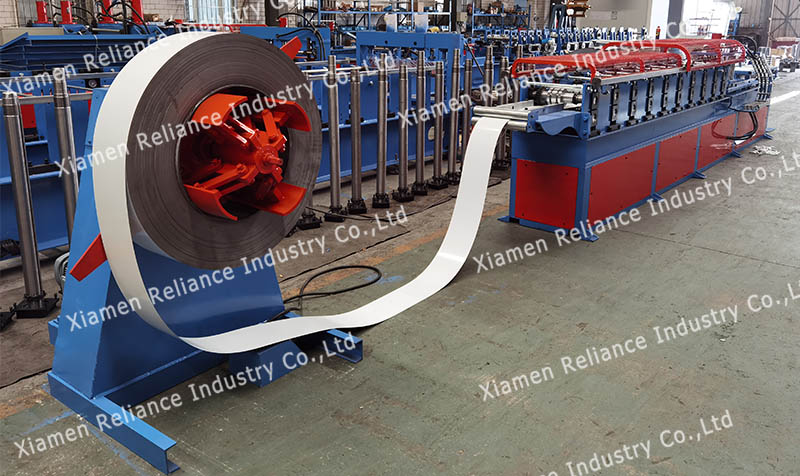

Decoiler (manual and automatic for options)

1 set

Roll Forming system

1 set

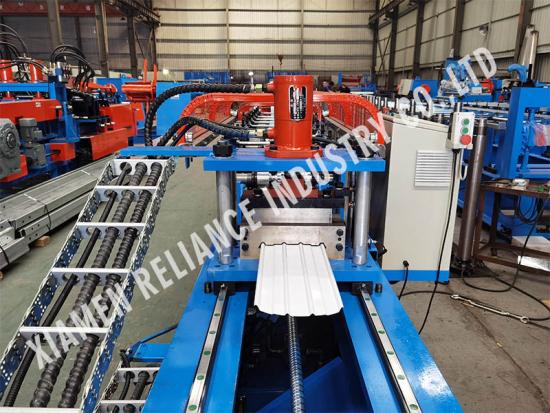

No-stop Cutting Device

1 set

PLC control box

1 set

Hydraulic unit

1 set

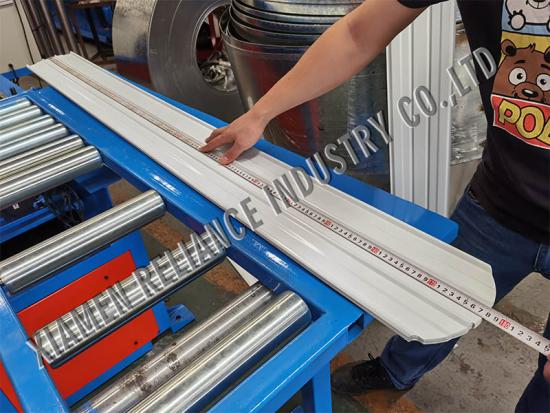

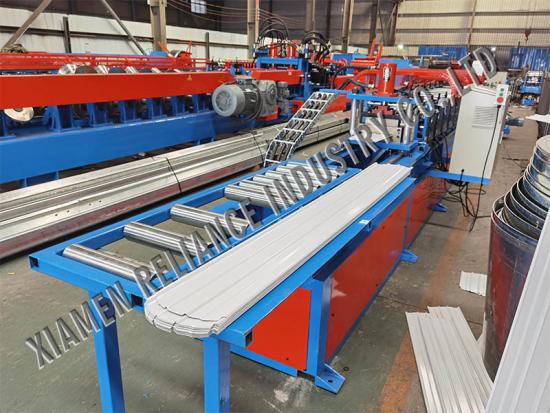

Run outs tables

1 set



House Courtyard Fence Roll Forming Machine:



fence post making machine:
