Octagon Pipe Roll Forming Machine

  • 1(3).jpg
  • 2(3).jpg
  • 3(3).jpg
Octagon Pipe Making Machine/Octagon tube forming machine/Metal Forging Machinery Octagonal Pipe Cold Roll Forming Machine is used for producing steel octagonal tubes

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.

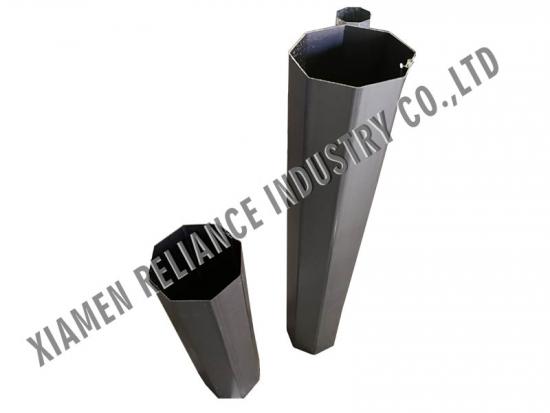

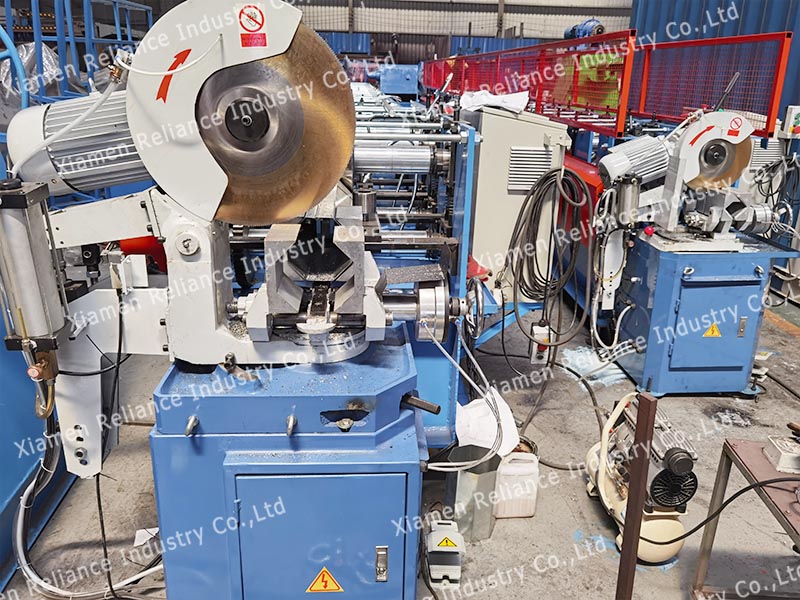

Octagon Pipe Making Machine/Octagon tube forming machine/Metal Forging Machinery Octagonal Pipe Cold Roll Forming Machine  is new type building material that widely used in petrochemical, power plant desulfurization, ships, aerospace, electronics and other fields. The interlocked octagonal tubes is made by roll forming machine via roller stations press and forming, then via saw cutting get final products.

The steel octagon pipe can be fabricated from various material thicknesses and in almost any length. With highly inline precision punching automatically and cut to length, the forming line capable well improved customer production capacity.

Production line system includes:




Decoiler/Uncoiler

Material extending device

Material feed

Pr-punching section with various die composition

Forming machine

Automatic cutting section

Electrical control system

Product run out table



Octagon tube forming machine:



Octagon tube roll forming machine:
