Racking Storage Upright Rollformer Machine

  • 1(15).jpg
  • 2(15).jpg
  • 3(15).jpg

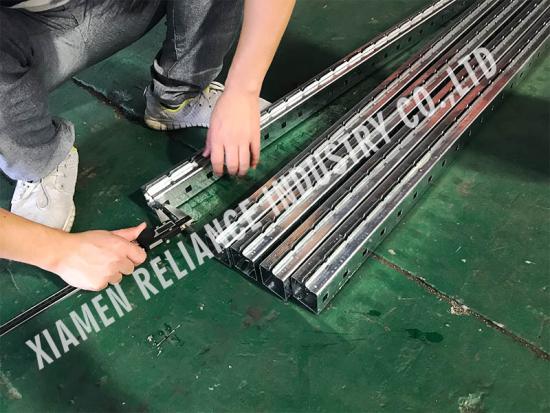

  • 4(12).jpg
  • 5(10).jpg

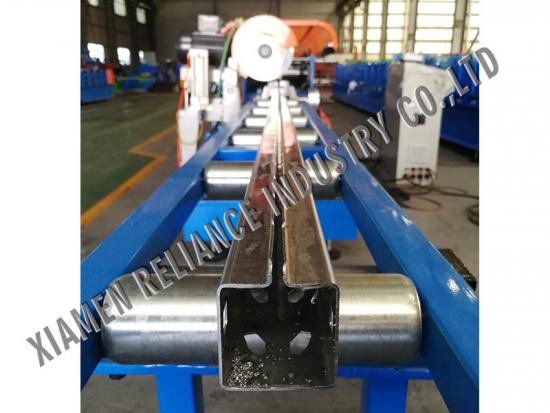

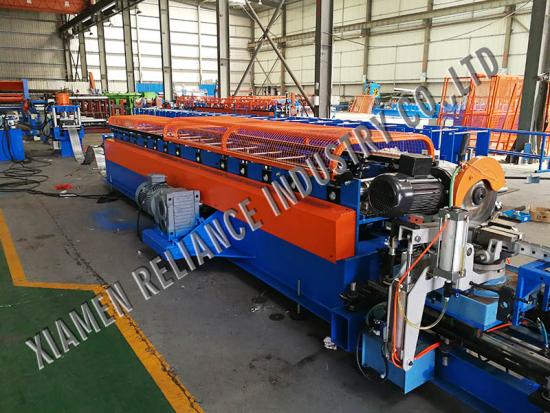

Square upright rollformer/Upright rollformer/Shelves Square Upright Roll Forming Machine is used for producing square upright racks that used in warehouse pallet rack and logistic storage rack system.

PAYMENT:T/T,L/C,CASH

SHIPPING PORT:Xiamen,China

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

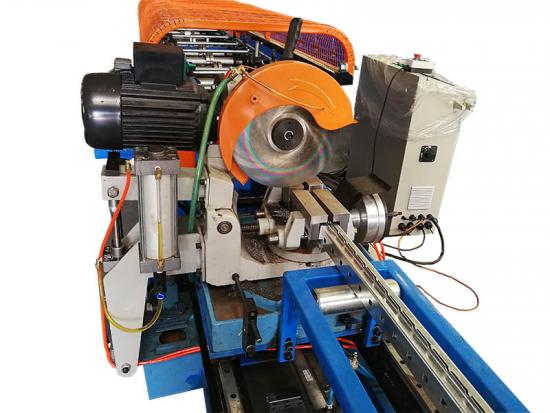

ADVANTAGE FEATURES:1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation. 2. Forming, Punching & cutting at any required length with pre-set quantity automatically. 3.The encoder will record signal feedback and showing exact length of product on display. 4.The total length of finished coil is able to calculate via control panel. 5.Steel rollers are fabricated by CNC precision machine and hard chrome coated. 6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment. 7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Square upright rollformer/Upright rollformer/Shelves Square Upright Roll Forming Machine:

The upright sizes and thickness are adjustable automatically. It can be fabricated in almost any length. With highly punching accuracy and cut to length, the forming line capable well improved customer production capacity.


▷▶Upright rollformer machine introduction:

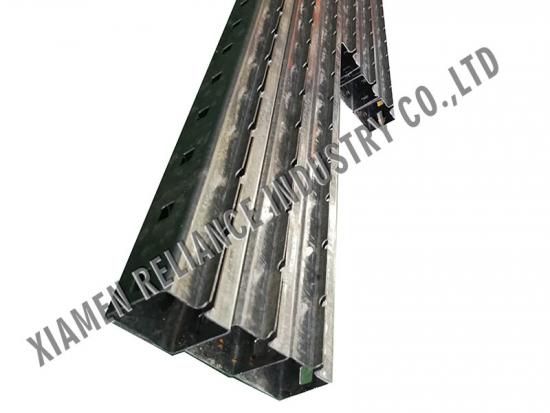

Upright rack, upright columns vary in different sizes and can be customized as per requirements according to load capacity. It has many styles such as L shape (light capacity), C shape (medium capacity), and Special C type (heavy capacity). In practical usage, there are load beams mounted into upright racks. The upright will have pre-punched holes and slots before roll forming process. Heavier upright thickness can up to 3.5mm with high tension grade coil material.


Technical Details:



The Line’s Specifications

Weight

About 12800kgs

Whole line’s dimension

About 18m x 1.4m x 1.5m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

0.8-2.0mm

Coil width

According to products size

Yield Strength

250-400Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 15

Diameter of forming rollers shafts

75mm

Roll Forming Speed

18m/min

Production Speed

15m/min

Forming rollers material

Cr12 mould steel, with quenched treatment

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 15kw

Hydraulic unit motor power: 7.5kw

Electric voltage

According to customer’s requirement

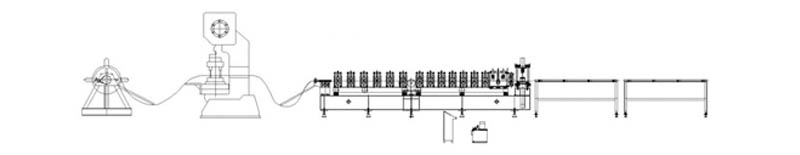

Main Components

Decoiler (manual and automatic for options)

1 set

Continuous hydraulic punching machine

1 set with punching die

Guiding device

1 set

Leveling system

1 set

Roll Forming system

1 set

No-Stop Cutting system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set
