Slotted Angle Bar Rollforming Machine

  • 1(16).jpg
  • 2(16).jpg
  • 3(16).jpg
  • 4(13).jpg

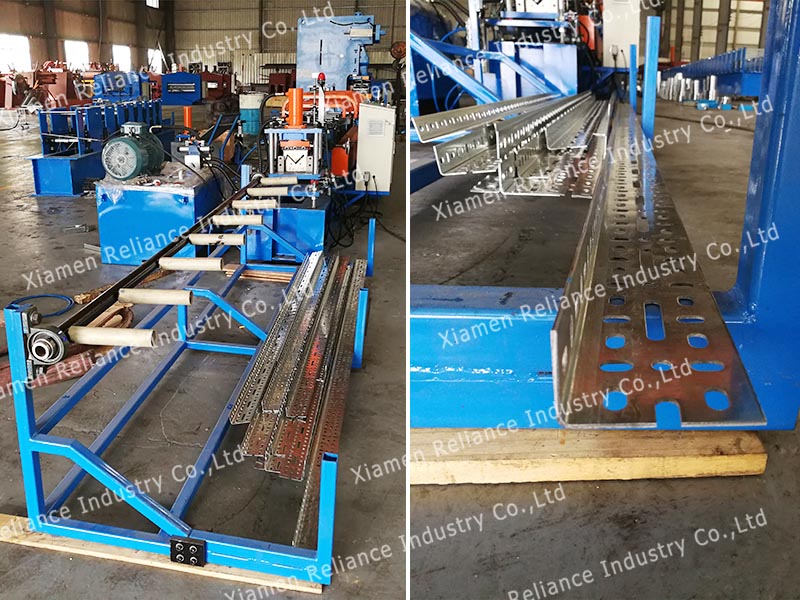

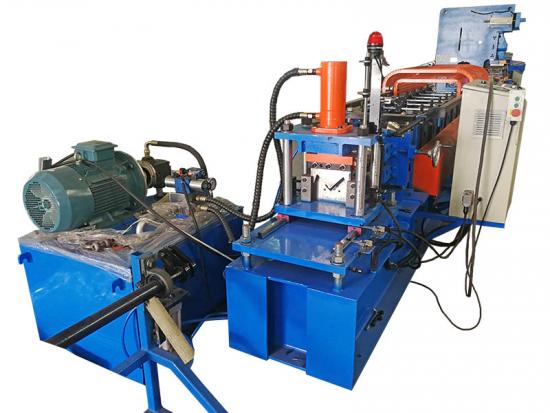

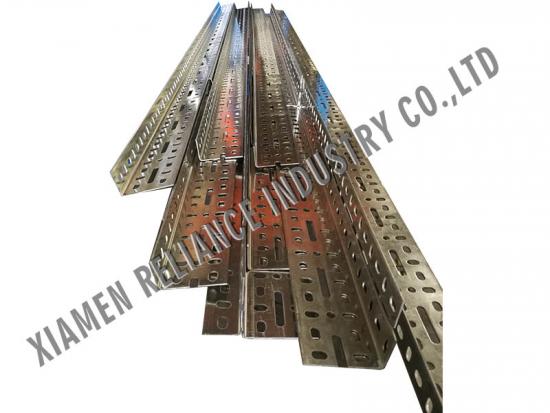

Fully Automatic Steel L Slotted Angle Rollformer Machine/Slotted angle roll forming machine is used for producing slotted angle steel that used for simple storage system, special item support post or solar system support usage etc...

PAYMENT:T/T,L/C,CASH

SHIPPING PORT:Xiamen,China

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.


Fully Automatic Steel L Slotted Angle Rollformer Machine/Slotted angle roll forming machine:

This type slotted angle steel normally have several sizes variation and with continuous slot punching on both flange for connect or bolt work. It can be fabricated in various panel widths and almost any length. With highly forming accuracy and cut to length, the forming line capable well improved customer production capacity.

Technical Details:


The Line’s Specifications

Weight

About 5800kgs

Whole line’s dimension

About 16m x 1.2m x 1.4m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized or Galvalume Coils

Thickness

1.2-2.0mm

Coil widths

According to profile sizes

Yield Strength

250-350Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 12

Diameter of forming rollers shafts

60mm

Roll Forming Speed

20m/min

Production Speed

20m/min

Forming rollers material

Cr12, CNC lathe, heat treatment

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 7.5kw

Hydraulic unit motor power: 7.5kw

Electric voltage

According to customer’s requirement

Main Components

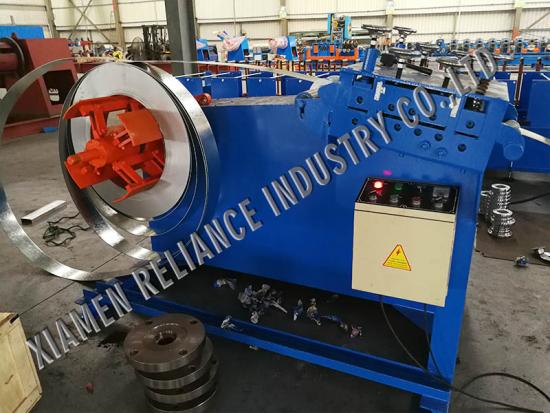

Decoiler (manual and automatic for options)

1 set

Guiding device

1 set

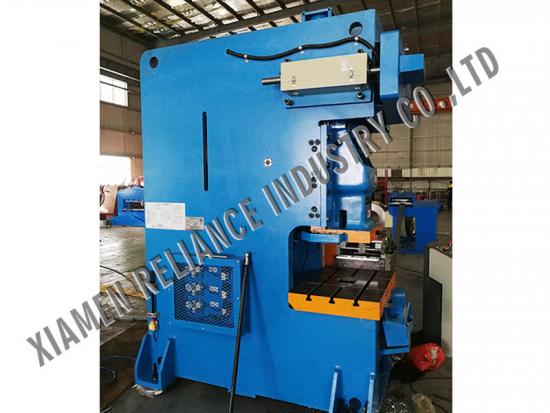

High speed stamping machine

1 set

Roll Forming system

1 set

No-Stop Cutting system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Pneumatic stacking pallet

1 set
