Tile Ridge Cold Rolling Mills

  • 1(23).jpg
  • 2(22).jpg
  • 3(19).jpg
  • 4(19).jpg
  • 5(17).jpg
  • 6(15).jpg

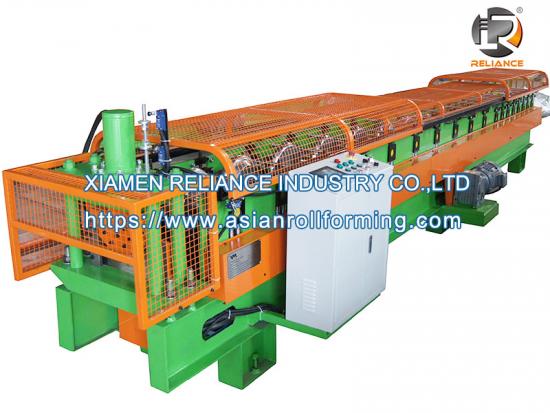

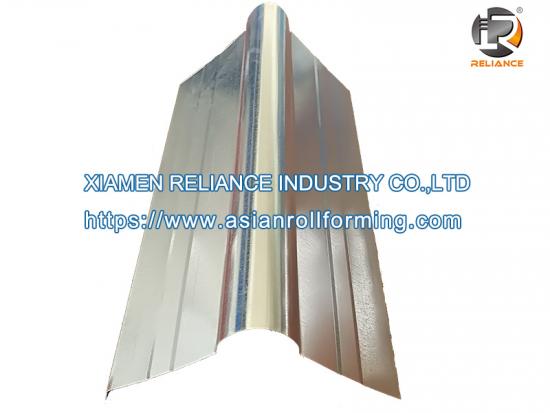

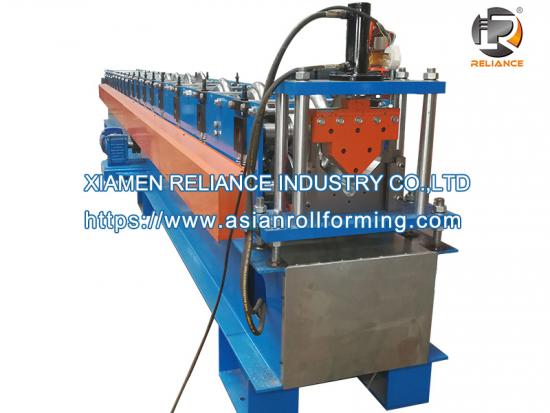

Tile Ridge Cold Rolling Mills/Metal Tile Ridge Cap Machine/Steel Tile Ridge Roll Former/Ridge Cap Roofing Machine/Ridge Cap Forming Machine Rollers is a kind of metal roll forming process equipment for making metal ridge caps.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:

Tile Ridge Cold Rolling Mills/Metal Tile Ridge Cap Machine/Steel Tile Ridge Roll Former/Ridge Cap Roofing Machine/Ridge Cap Forming Machine Rollers:


It can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length so as to suit for different patterns of house roofing style. With highly cutting length accuracy, accurate dimension forming automatically, the forming line capable well improved customer production capacity.


Reliance offer on-site installation, training and maintenance if have demand.



Working Procedure:

Uncoiling– Pre-shearing if inecessary– Roll Forming Machine– Cutting– Collecting

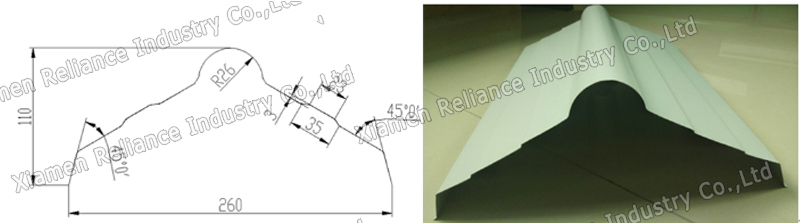

Profile:



Technical Details

The Line’s Specifications

Weight

About 65000kgs

Whole line’s dimension

About 15m x 0.6m x 1.3m (length x width x height)

Color

Main color: blue


Warning color: yellow

Suitable Raw Material

Material

Galvanized, Galvalume Coils, PPGI

Thickness

0.4-0.5mm

Yield Strength

550Mpa

Main Technical Parameters

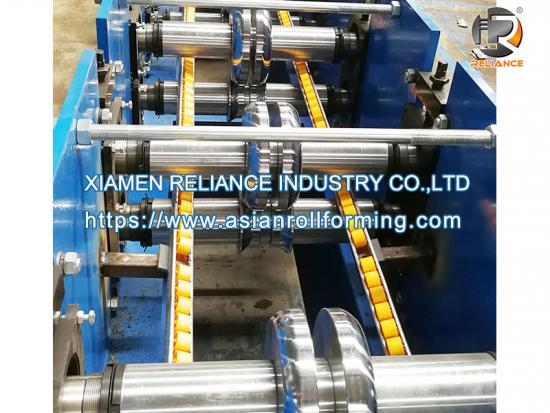

Quantity of forming rollers stations

About 18

Diameter of forming rollers shafts

60mm

Roll Forming Speed

18m/min

Forming rollers material

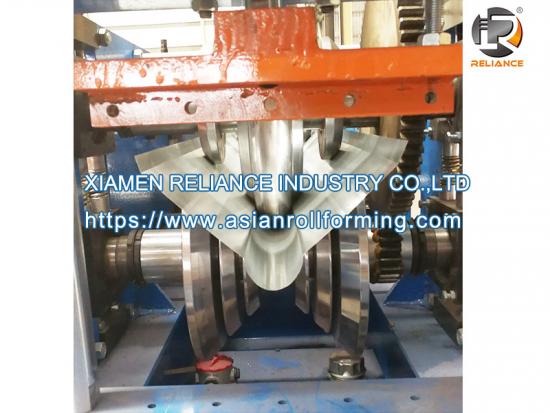

40Cr material, CNC lathe, hard chrome coated

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 5.5kw


Hydraulic unit motor power: 4kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set, 3TonX500mm

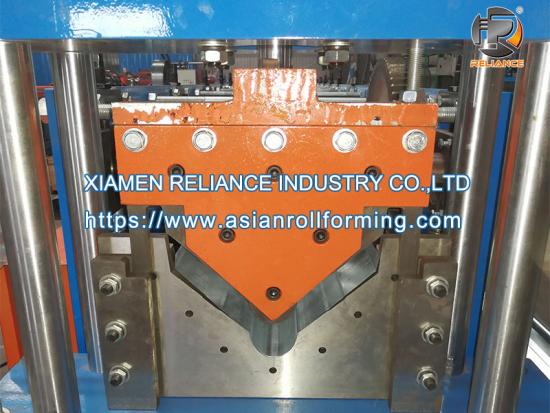

Pre-Cutting Device

1 set

Roll Forming system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set
