Metal Ridge Cap Machine

  • 1(24).jpg
  • 2(23).jpg
  • 3(20).jpg
  • 4(20).jpg
  • 5(18).jpg
  • 6(16).jpg

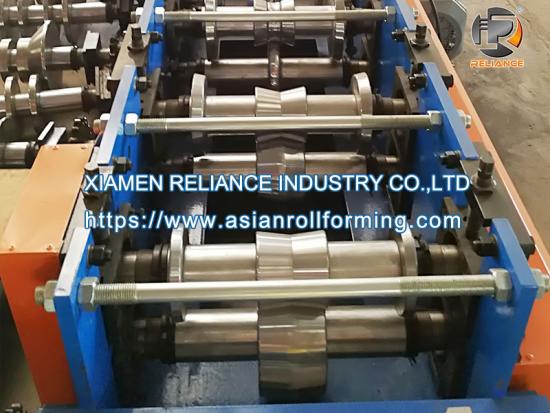

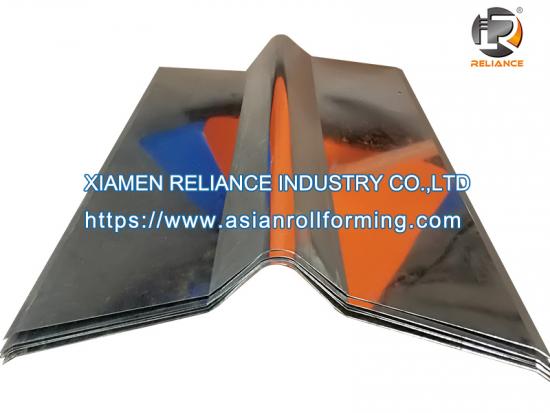

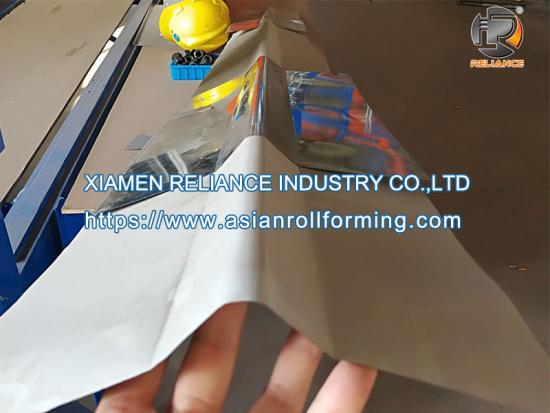

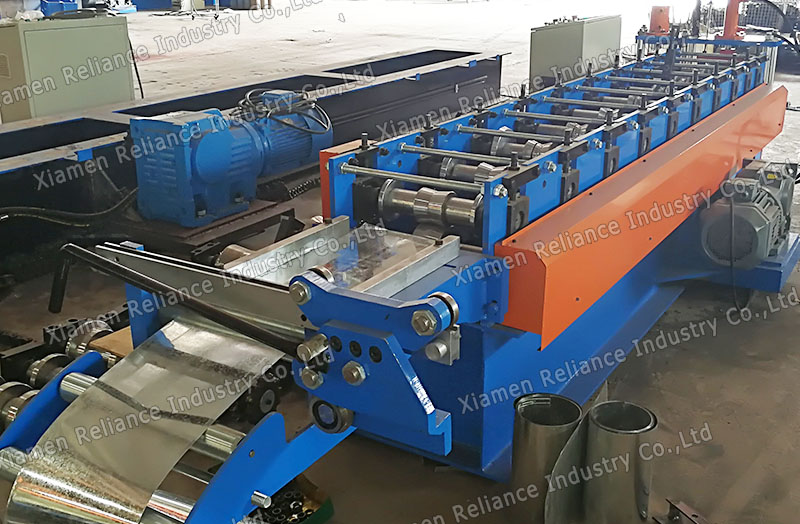

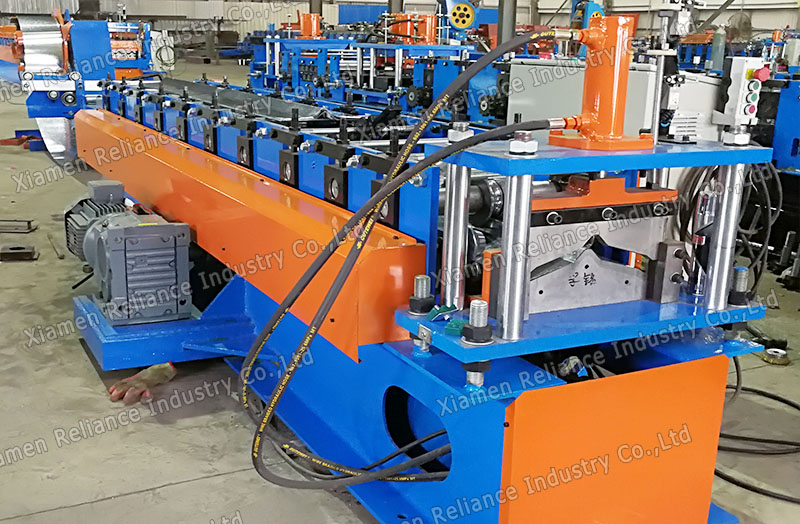

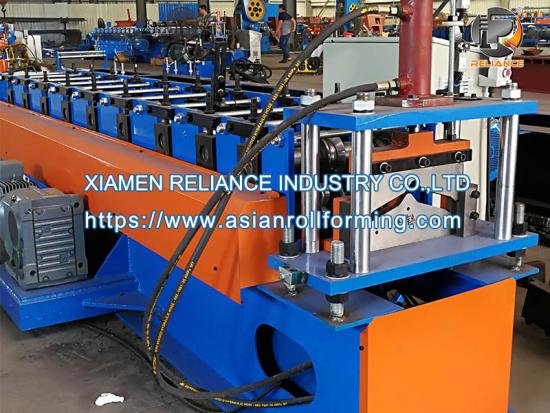

Metal Roof Ridge Cap Machine/Metal Ridge Cap Machine/Roofing Ridge Cap Machine/Metal Ridge Cap Roll Forming Machine is a smart roll former that used for manufacturing various types of metal ridge caps that fix on roofing system top.

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:




Metal Roof Ridge Cap Machine/Metal Ridge Cap Machine/Roofing Ridge Cap Machine/Metal Ridge Cap Roll Forming Machine:



It can be made as per desired requirements and can be fabricated from various material thicknesses and in almost any length. With highly cutting length accuracy, accurate dimension forming automatically, the forming line capable well improved customer production capacity.



Working Procedure:


Uncoiling– Pre-shearing if inecessary– Roll Forming Machine– Cutting– Collecting

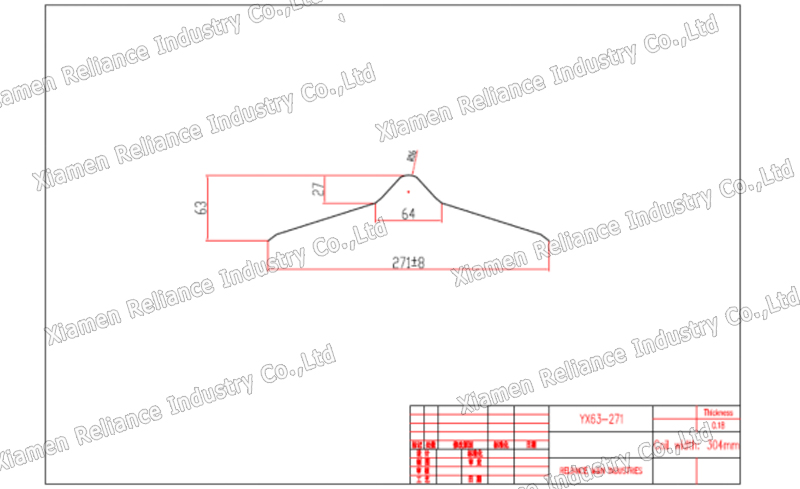

Profile:



Technical Details:


The Line’s Specifications

Weight

About 22000kgs

Whole line’s dimension

About 8m x 0.5m x 1.2m (length x width x height)

Color

Main color: blue

Warning color: yellow

Suitable Raw Material

Material

Galvanized, Galvalume Coils, PPGI

Thickness

0.17-0.25mm

Yield Strength

550Mpa

Main Technical Parameters

Quantity of forming rollers stations

About 10

Diameter of forming rollers shafts

60mm

Roll Forming Speed

18m/min

Forming rollers material

40Cr material, CNC lathe, hard chrome coated

Cutter material

Cr12 mould steel, with quenched treatment

Controlling system

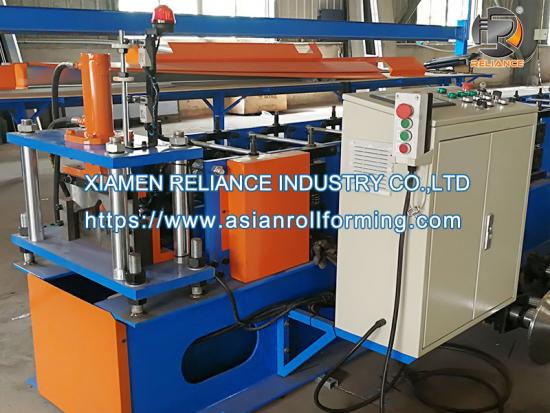

Combined with: PLC (Siemens), Touch Screen (Siemens), Inverter (Schneider), Encoder (Omron), etc

Electric Power requirement

Main motor power: 5.5kw

Hydraulic unit motor power: 4kw

Electric voltage

According to customer’s requirement

Main Components

Decoiler (manual and automatic for options)

1 set, 5TonX600mm

Pre-Cutting Device

1 set

Roll Forming system

1 set

PLC control box

1 set

Hydraulic unit

1 set

Run outs tables

1 set



Metal roof ridge cap machine:






Ridge Cap Roofing Machine:
