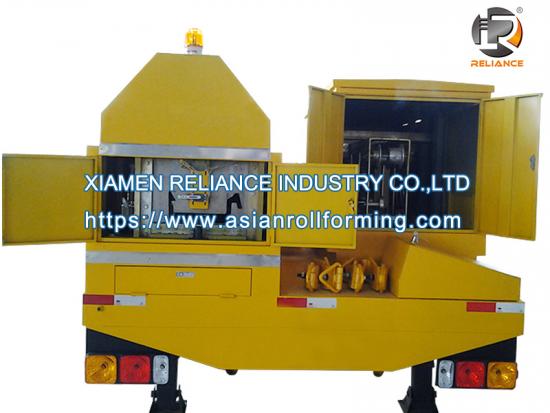

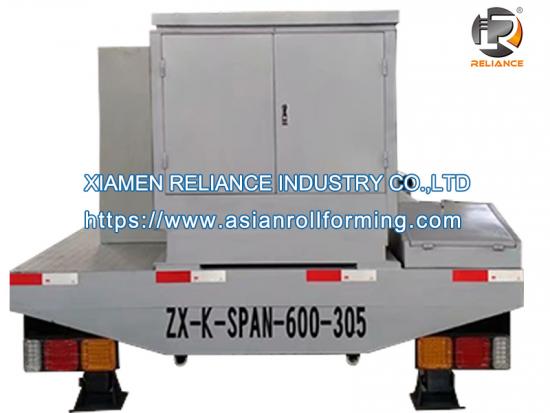

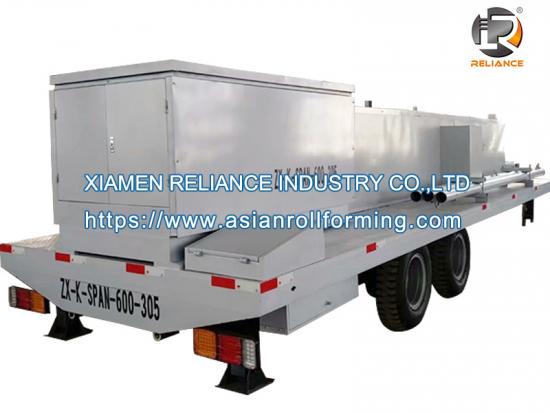

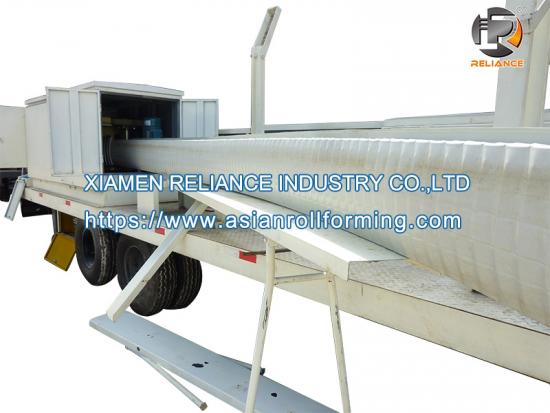

Arch Roof Building Machine

  • 1(25).jpg
  • 2(24).jpg
  • 3(21).jpg
  • 4(21).jpg
  • 5(19).jpg
  • 6(17).jpg

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Arch Roof Building Machine/Arch Roof Forming Machine:

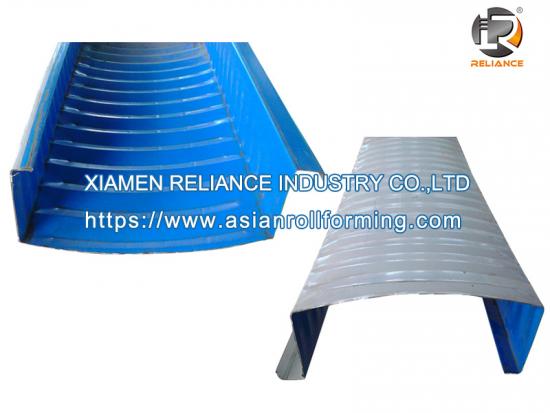

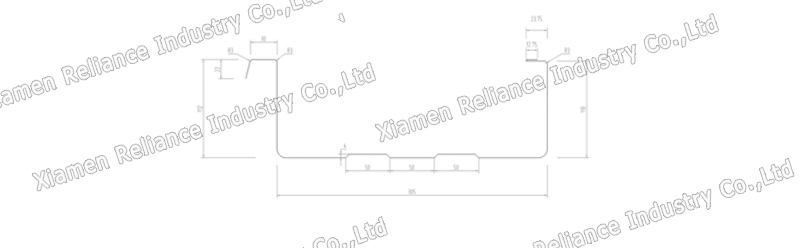

Profile:





1. Features


1.1 Rollers are made of good white steel processed with polishing.


1.2 We needn’t to adjust the gaps between rollers, and can feed 0.6-1.6mm color steel sheets.

1.3 The finished colored will be very large span, high corrugation, high tension strength.



2.Main technical data of ZX-305:


1. Size:8800mmx2200mmx2080mm


2. Total Weight: About 9T

3. Controlling System: PLC+computer touch screen

4. Forming Power: 7.5kw

5. Bending Power: 4.0kw+1.5kw+1.5kw

6. Cutting Power: 3.0kw

7. Material of rollers: 45#steel, quenched HRC52-58

8. Material of roller shafts: 45#steel

9. Material of cutting blade: Cr12 steel

10. PLC Type: Germany Siemens

11. Step of rollers: 14 steps

12. Feeding Width: 600mm

13. Effective Width: 305mm

14. Thickness of the coil: 0.6-1.5mm

15. The depth of the groove: 109mm

16. Working speed: Straight sheet: 15m/min

17. Arch sheet: 13m/min

18. Sewing: 10m/min

19. Max span: 24m

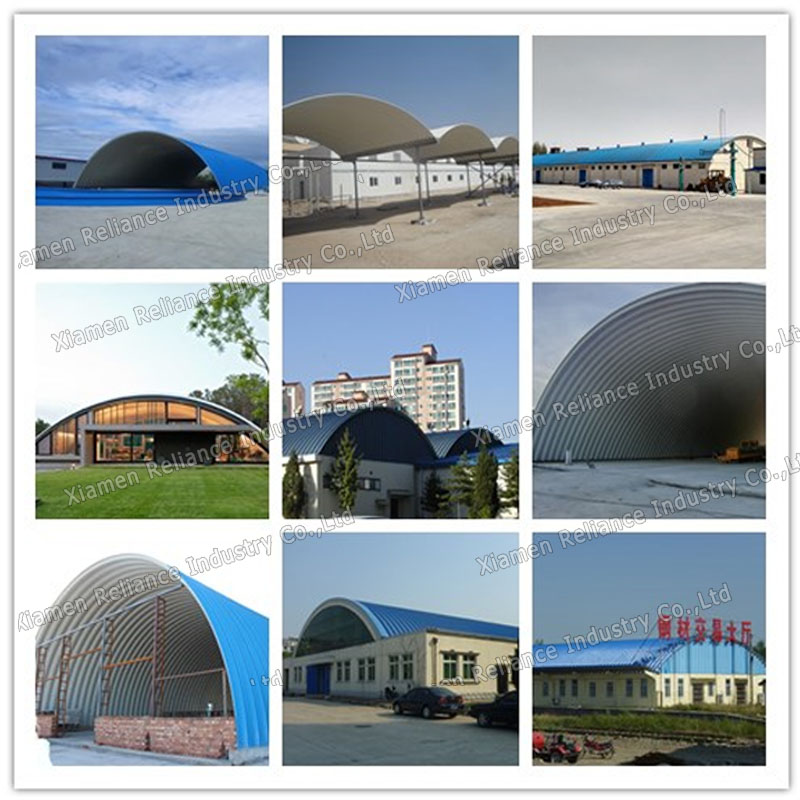

3、Application areas:
