K Span Trussless Roofing Machine

  • 1(26).jpg

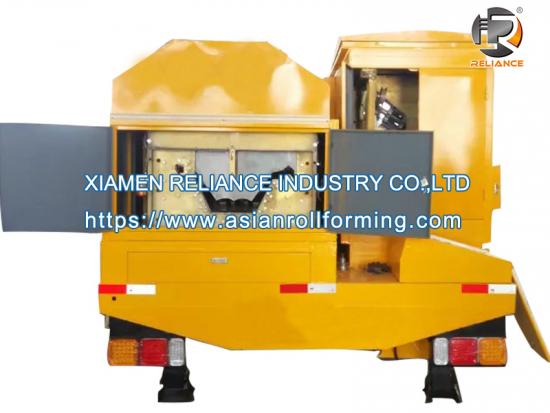

  • 2(25).jpg

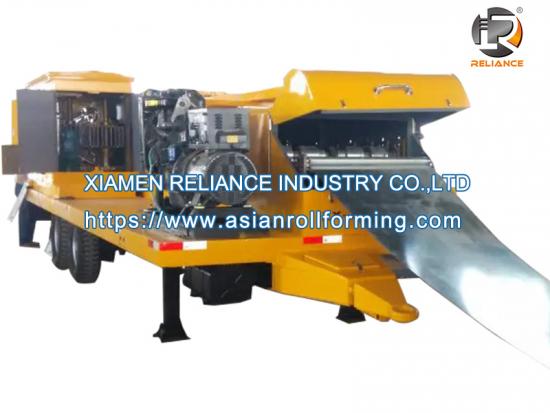

  • 3(22).jpg

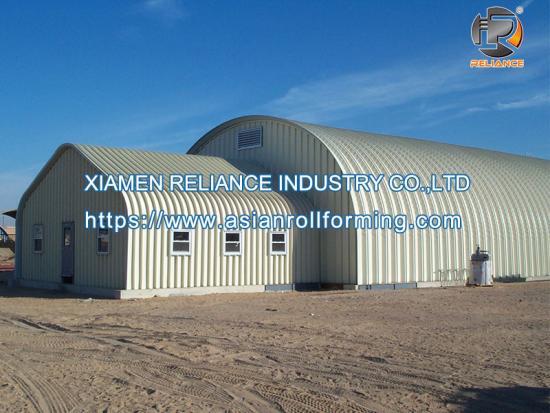

  • 4(22).jpg

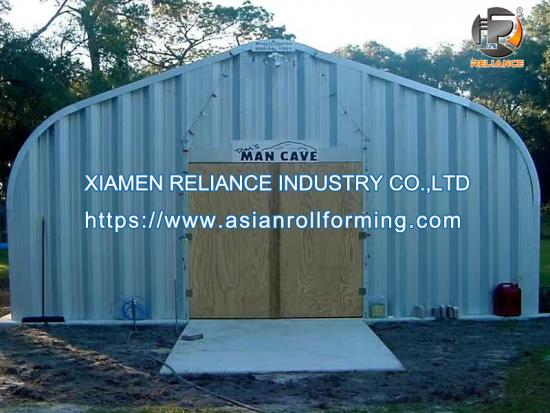

  • 5(20).jpg

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


K Span Trussless Roofing Machine


Profile:



1. Features

1.1 Rollers are made of good white steel processed with polishing.

1.2 We needn’t to adjust the gaps between rollers, and can feed 0.6-1.6mm color steel sheets.

1.3 The finished colored will be very large span, high corrugation, high tension strength.


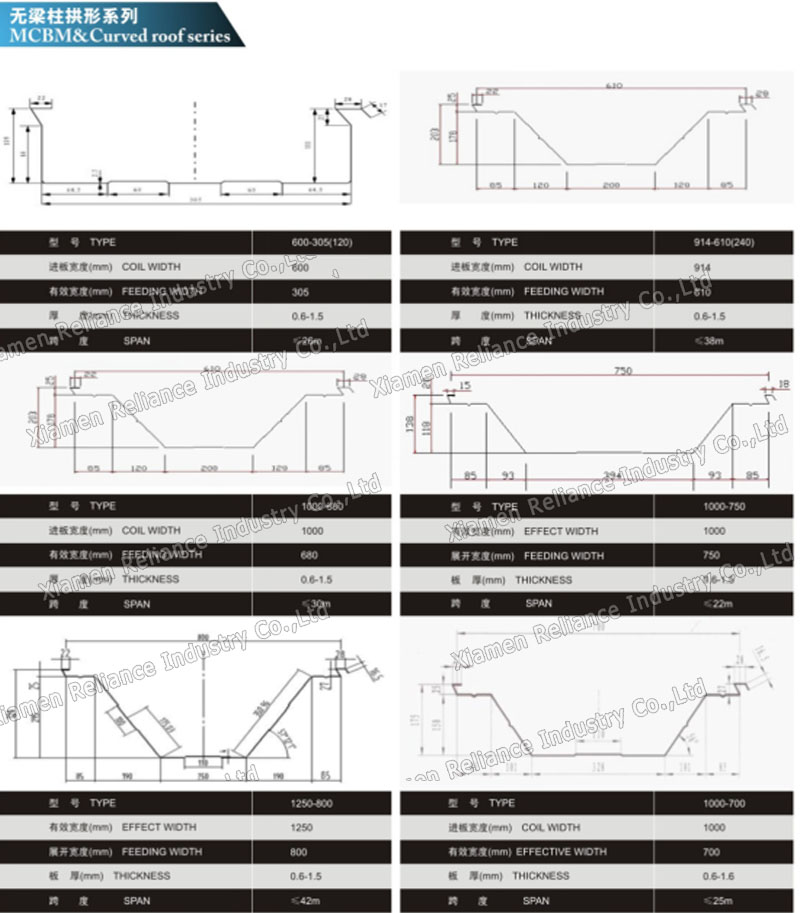

2. Main technical data of ZX-MCBM(120W):

Size:10800*2200*2250

Total Weight:10T

Controlling System:PLC+Servo Control System+Computer Touch Screen+Frequency Converter

Main Power:14.0kw

Forming Power:5.0kw

Bending Power:4.0kw+1.0kw:Servo:

Hydraulic System:U400-15P-PV2R12

Material of rollers:45#steel,quenched HRC 58-62

Material of roller shafts:45#steel

Material of cutting blade:Cr12MoV

PLC Type:Siemens

Step of rollers:14 steps

Feeding Width:600mm

Effective Width:305mm

Thickness of the coil:0.6-1.5mm

The depth of the groove:109mm

Working speed:14m/min

Arch sheet:12m/min

Sewing:10m/min

Maxspan:20m

It can make six shapes.
