V610 K Span Machine

  • 1(27).jpg
  • 2(26).jpg

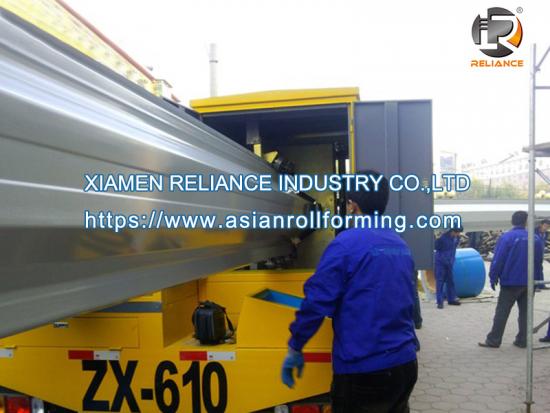

  • 3(23).jpg
  • 4(23).jpg

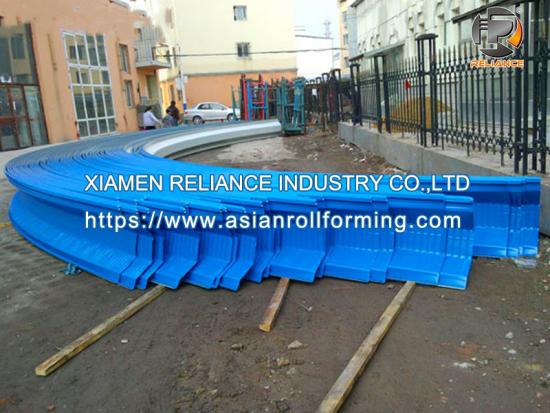

  • 5(21).jpg
K Span Roll Forming Machine/V610 Roof Roll Forming Machine

PAYMENT:T/T,L/C,CASH

LEAD TIME:2~3Months

WAY OF PACKAGING:Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

ADVANTAGE FEATURES:

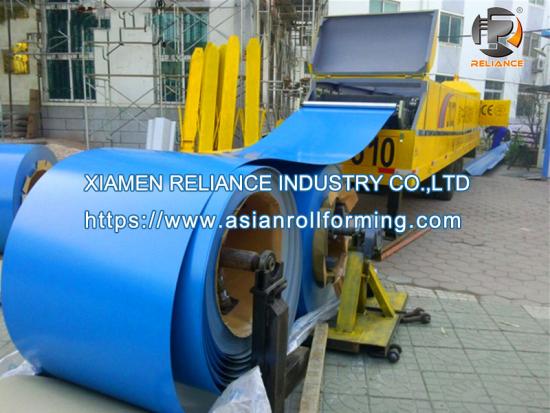

1.De-coiler storage steel coils and smoothly feeding into forming machine labor save operation.

2. Forming, Punching & cutting at any required length with pre-set quantity automatically.

3.The encoder will record signal feedback and showing exact length of product on display.

4.The total length of finished coil is able to calculate via control panel.

5.Steel rollers are fabricated by CNC precision machine and hard chrome coated.

6.Cutting blade material is Cr12/Cr12Mov (D2/D3) fabricated by CNC machine, heat treatment.

7. Hydraulic system will equip cooling system to keep low temperature during long time continuously in one day.


Description:


V610 k span machine technical parameters:

1.Size:9500mmx2270mmx2360mm

2.Total weight:about 10 tons

3.Controlling system:PLC+Computer touch screen

4.Forming motor power:7.5KW

5.Bending motor power:4.0KW+1.5KW+1.5KW

6.Electric cutting power:3.0KW

7.Material of roller:45#steel HRC 58-62

8.Material of roller shafts:45#steel

9.Material of cutting blade:Cr 12#

10.PLC:Siemens

11.Step of rollers:14 steps

12.Feeding width:914mm

13.Effective width:610mm

14.Thickness of the coil:0.6-1.6

15.The depth of groove:203mm

16.Working speed:Straight sheet:15m/min

17.Arch sheet speed:13m/min

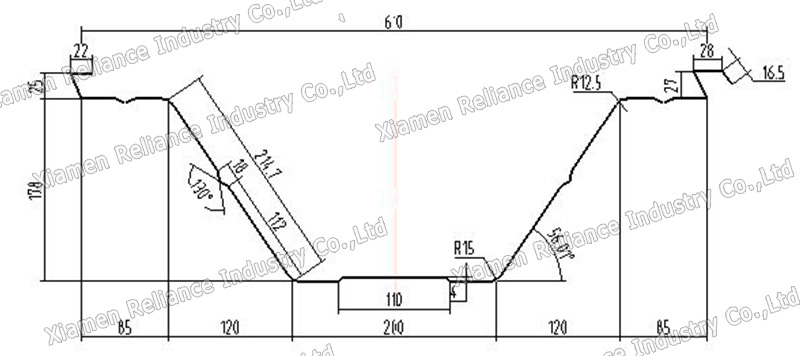

V610 k span machine  profile:

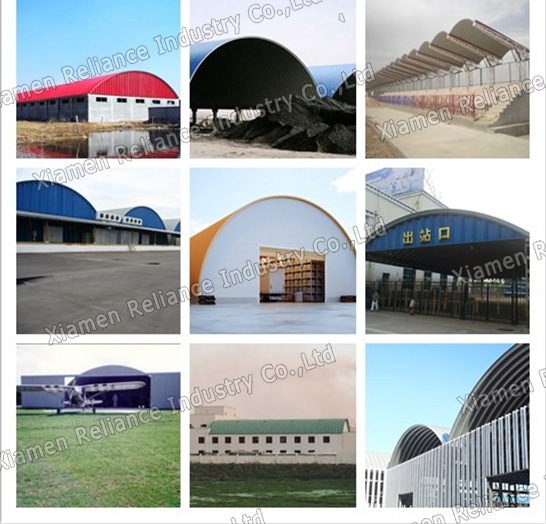

Big Spen Roof:

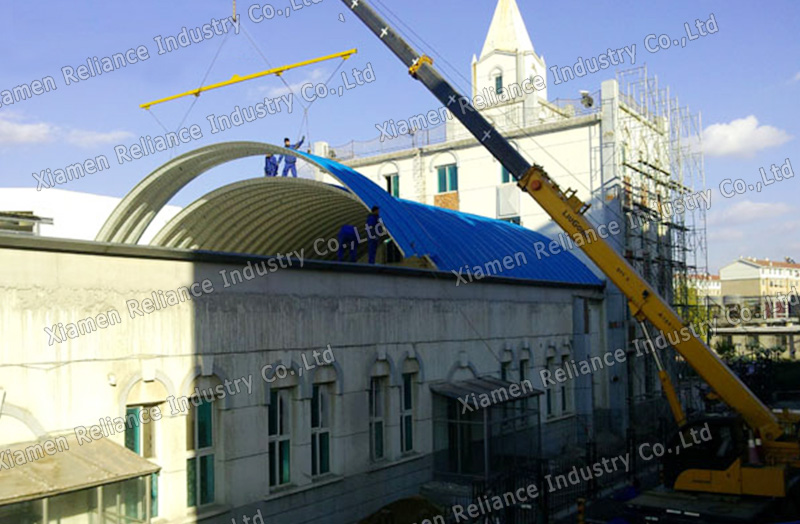

k span roof project:

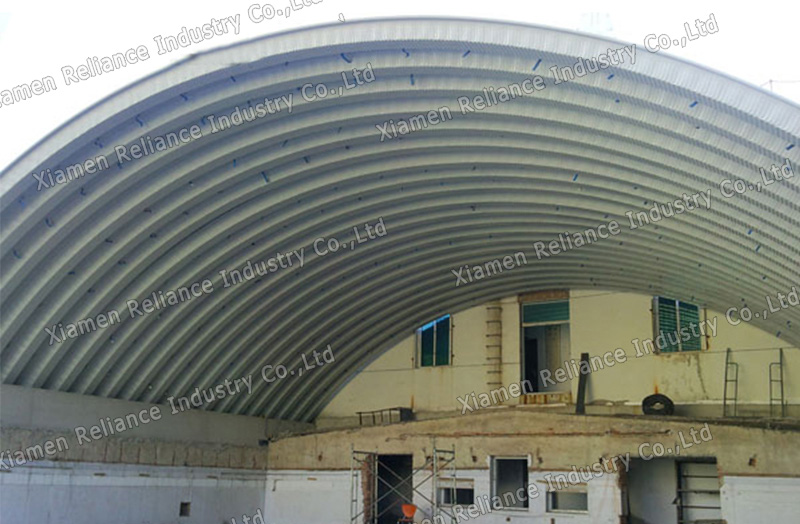

k span project case:
