Packaging Details:

Nude place in container, machine body tightened with steel wire rope and base frame position fixed by heavy steel angle plate. Roller groups cover with waterproof cloth. Computer control system packed with plywood box. Tooling box and regular wearing parts packed with plywood box as well.

Loading Port: Xiamen Port, China

Machine Leading Time: 70~90 Days

Description

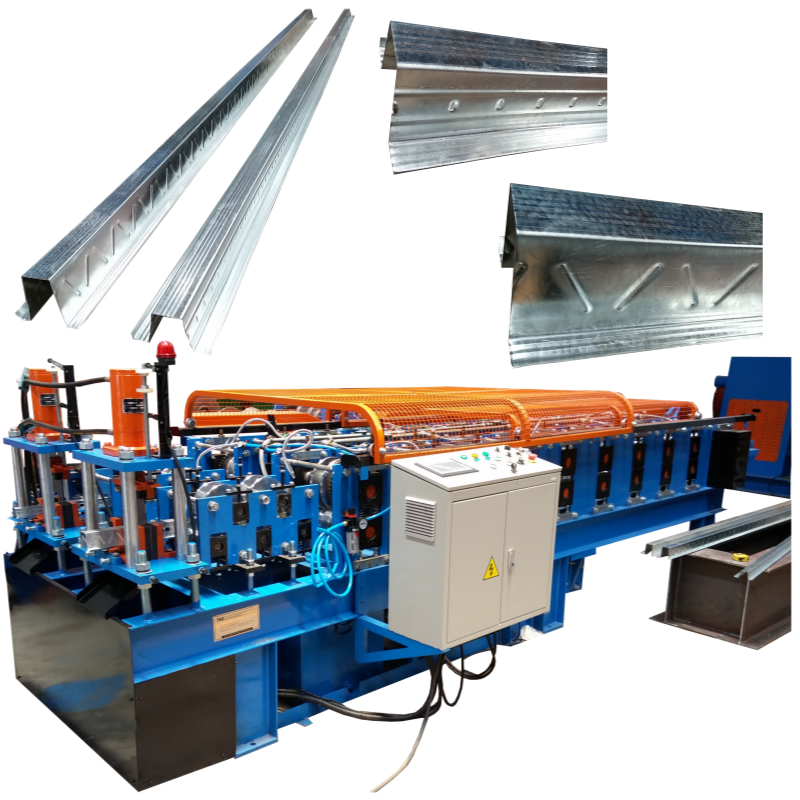

Ceiling Top Hat Roll Forming Machine/Top Hat roll forming machine/Steel Stud forming machine is used for producing hat shaped purlins and channels on roof top construction.

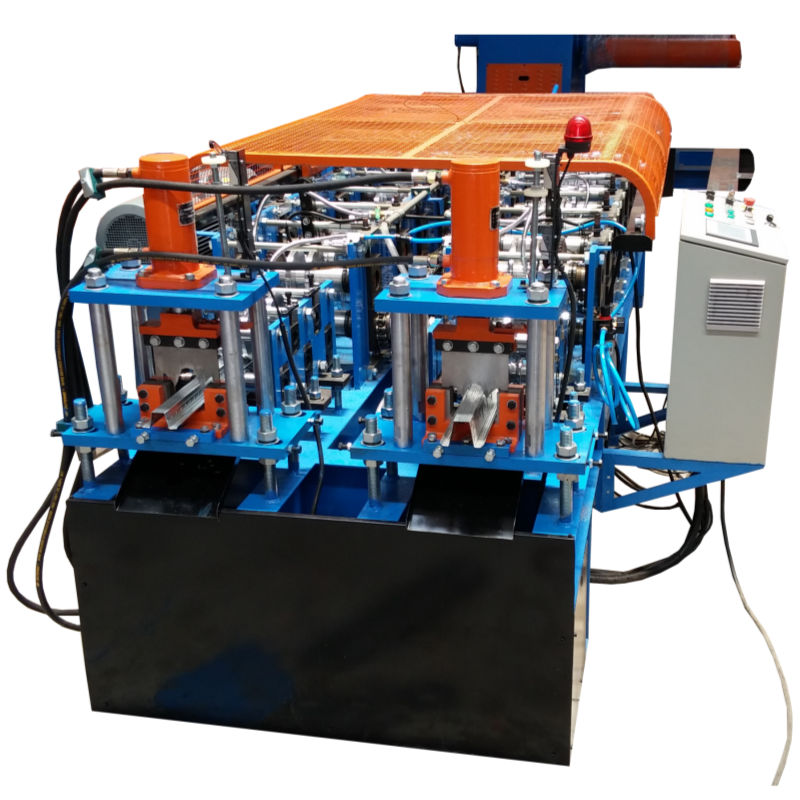

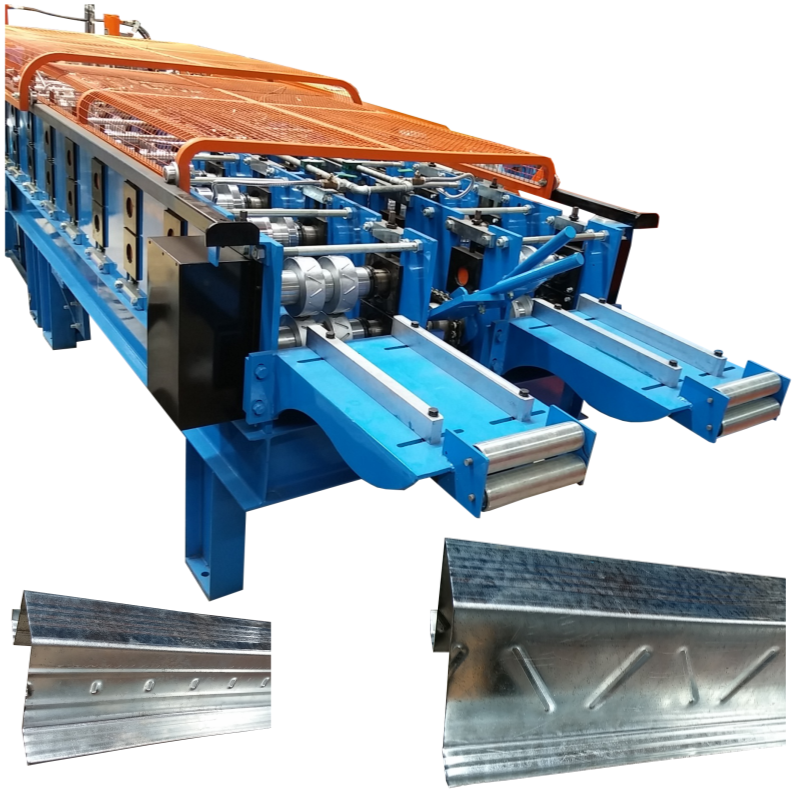

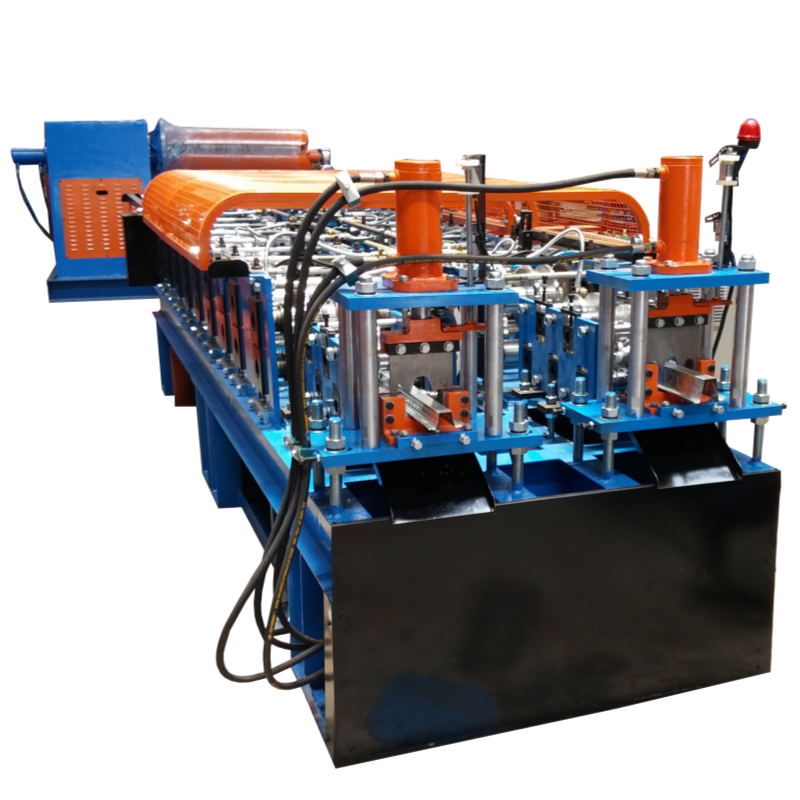

This dual side furring channel roll forming machine can produce two different shape top hats on one machine that save space and more economical.

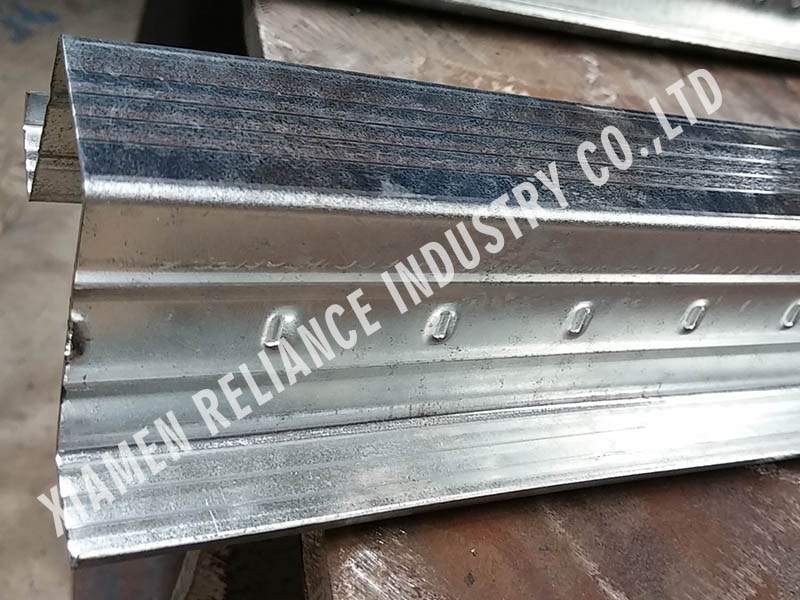

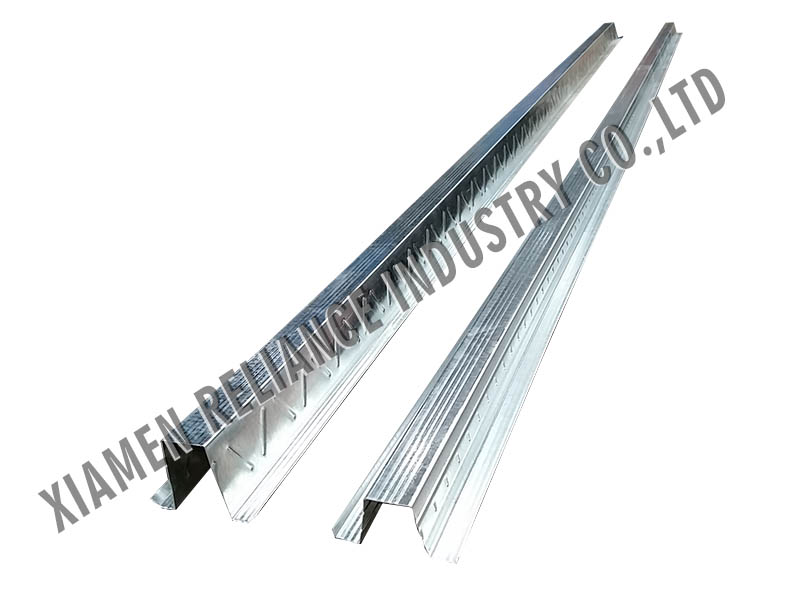

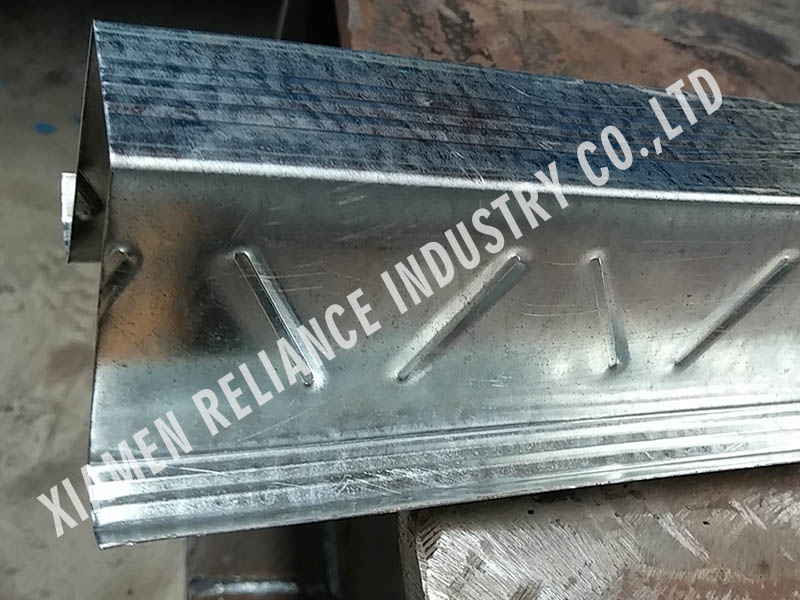

The hat section can be fabricated from various material thicknesses and in almost any length. With highly dimension forming automatically and cut to length, the forming line capable well improved customer production capacity. In line punching and rib strengthening are also available as per customer particular requirements.

Reliance offer on-site installation, training and maintenance if have demand.

The production line system includes:

Decoiler/Uncoiler

Dual material feed

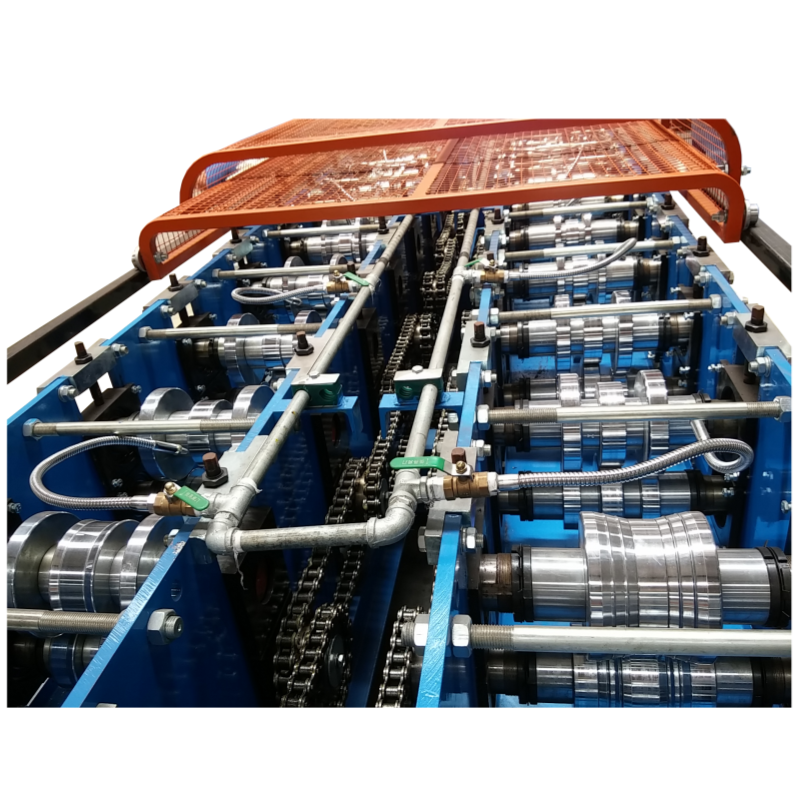

Forming machine with water cooling system

Blow dry DEVICE

Automatic cutting section

Electrical control system

Product run out table
